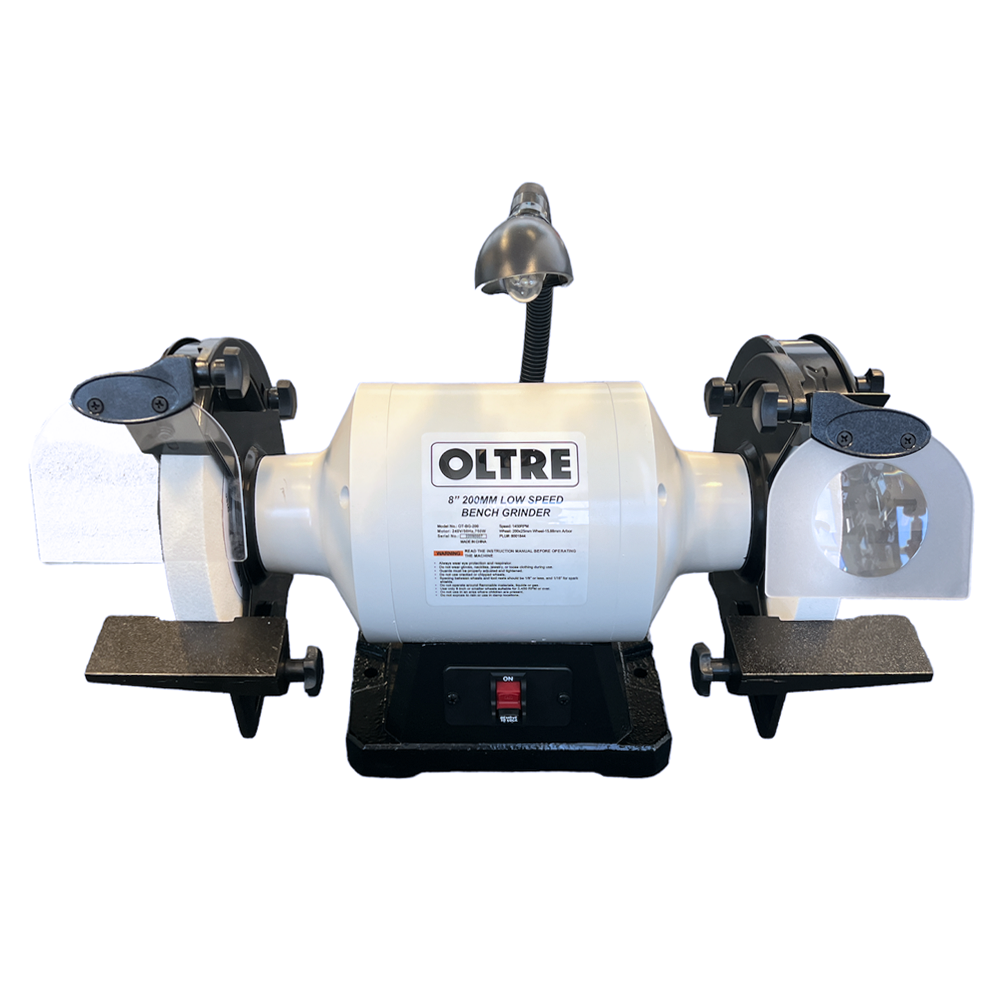

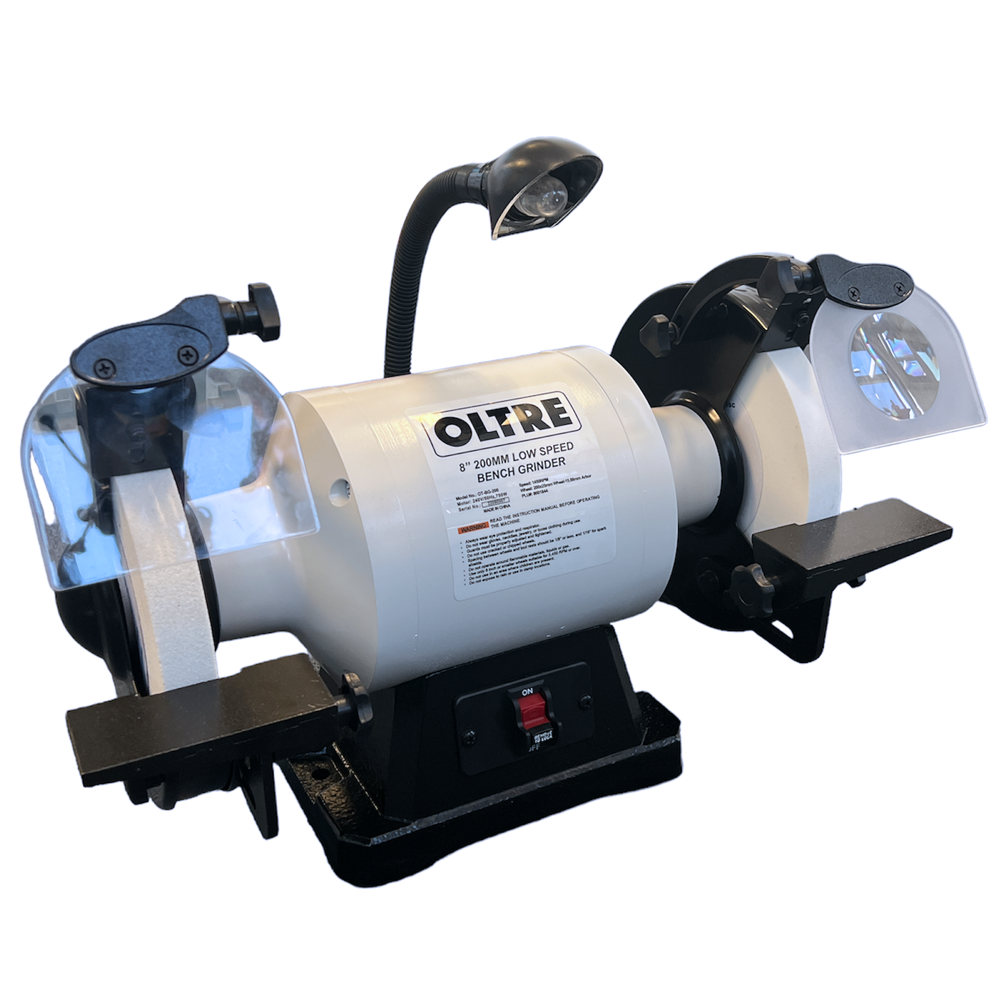

200mm (8″) 1HP Low Speed Bench Grinder OT-BG-200 by Oltre

OltreSKU: 8001844

Price:
Sale price$359.00
Stock:
In stock (51 units), ready to be shipped

Status

Available

Description

Sharpening tools or general grinding work is made a bit easier and more exact with Oltre's low-speed bench grinders with motor speeds of only 1,750 RPM, where other grinders operate at 3.450 RPM! This lower speed means that metal being removed can be controlled better, and reduces heat build-up and ‘bluing’ of a cutting edge being sharpened – ruining the hardness and temper of the tool.

The 1HP Low Speed Bench Grinder is a larger size motor and will tackle the tough grinding jobs that are typical in production shops, as well as the finesse shaping and sharpening of hand tools. Tool rests on this machine are extra-large and flat, without a drill bit sharpening groove. Wheel flanges are cast metal. Grinder includes dual dust collection ports on the rear of the wheel guards and a second pair of eye shields with 2.5x magnification for close-up inspection of your edges being ground.

Features

  • Cast iron base with rubber feet reduces vibration
  • Holes in the base for mounting grinders to a bench or stand
  • Metal wheel guards for added protection
  • Adjustable cast metal tool rests give solid tool support
  • Adjustable safety eye shields give added protection
  • Adjustable spark shields keep users safe from hot sparks
  • Aluminum oxide grinding wheels give fine cutting action
  • 60 Grit abrasive wheel for rough grinding and metal removal
  • 120 Grit abrasive wheel for final sharpening or shaping
  • Includes flexible LED work light

Comparable to

  • Rikon 80-808

Additional Information

Model
Type
Bench Grinder
SKU
8001844
Part Number
OT-BG-200
Barcode
745240316671
Brand
Oltre
Size
200mm (8")
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Motor Power (Output)
Motor Power (Output)
Output power means the maximum power that the motor puts out under ideal conditions.
1HP (0.74kW)
Mount
16mm (5/8")
Speed Range
1450RPM
Dimensions
Product Length
483 mm
Product Width
305 mm
Product Height
356 mm
Product Weight (Net Weight)
26.5 kg
Country of Origin
Designed, Researched & Developed in
Australia
Manufactured in
China
Features
Flexible Worklight
Standard Inclusions
2 x Plain Eye Shield
2 x 2.5X Magnifying Eye Shield
1 x 60G Grinding Wheel
1 x 120G Grinding Wheel
Safety

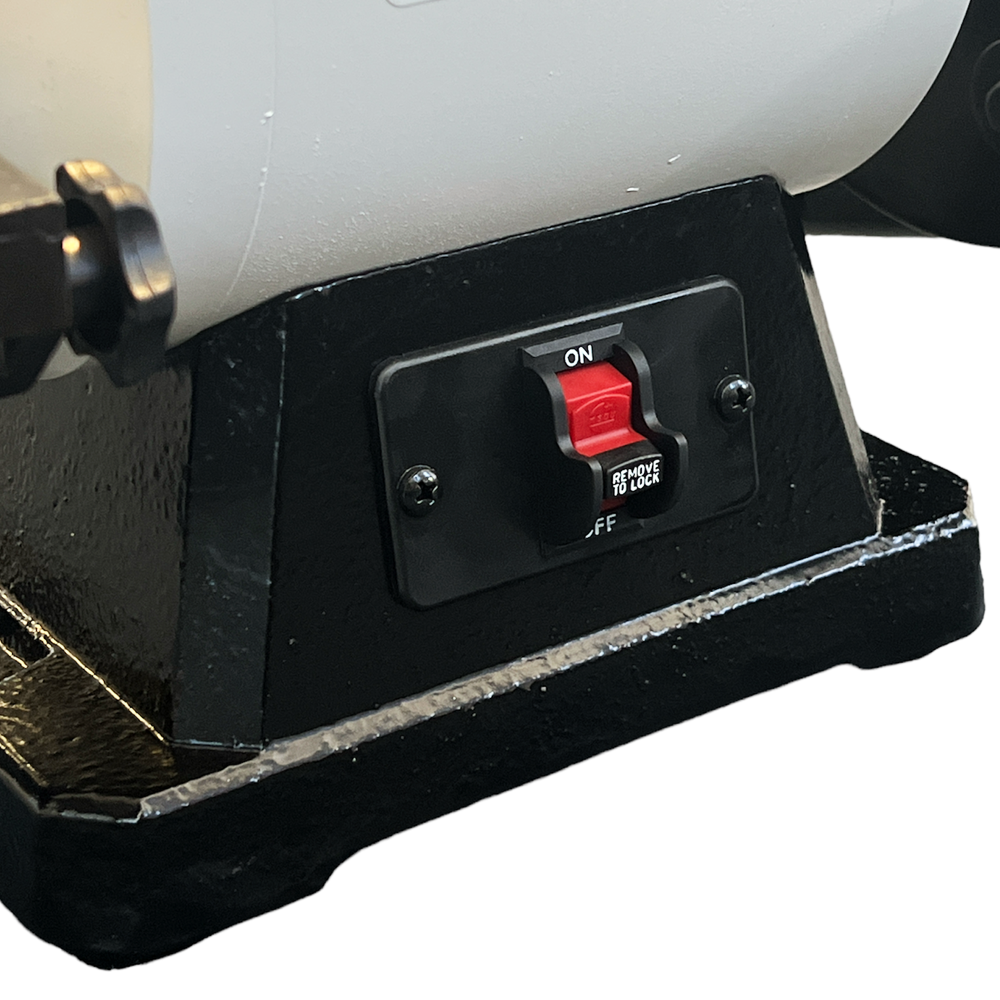

On/Off Safety Switch has Removable Safety Tab for Extra Security
On/Off Safety Switch has Removable Safety Tab for Extra Security
For additional safety - When the removeable tab is taken out of the switch the On/Off Switch does not operate.
Dust Port
2 x 31mm (OD)
Workshop (Site) Info

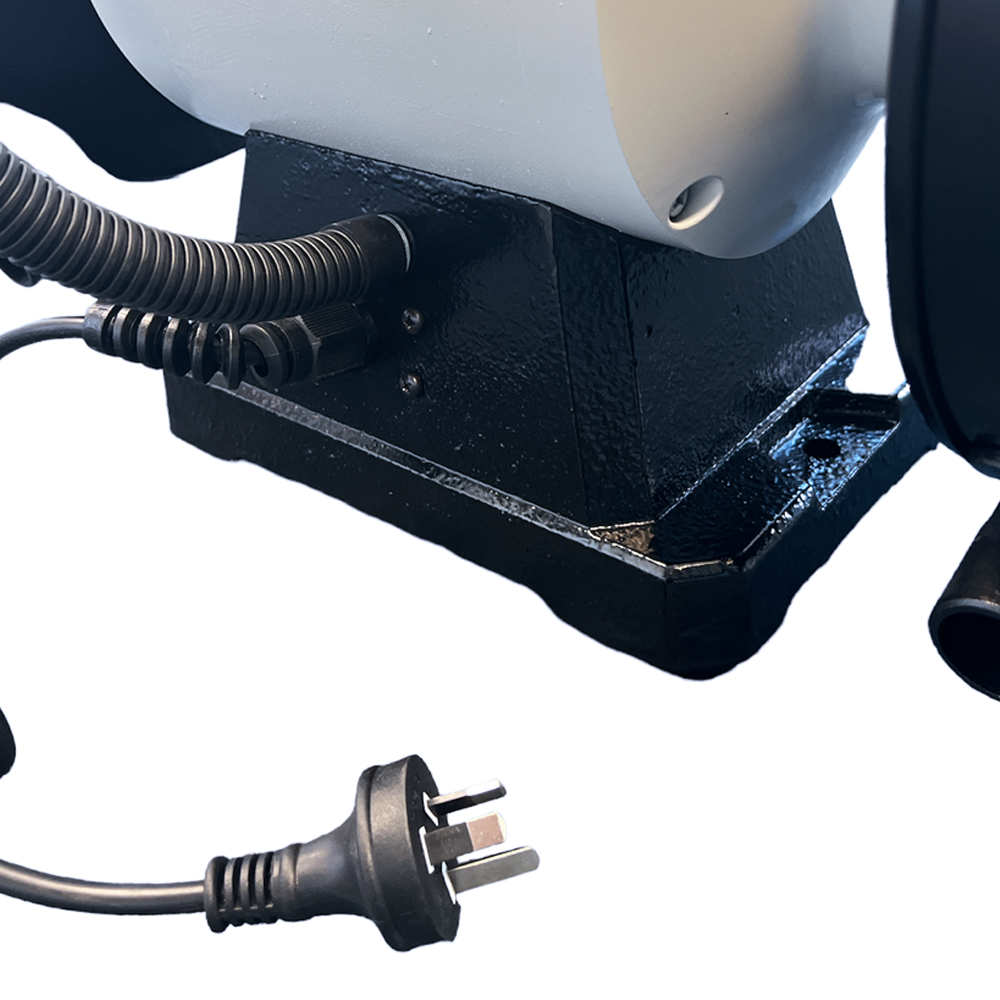

Electrical Connection
Supplied with 10Amp Lead & Plug
Other Requirements
Benchtop
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
2 Years (Home User) or 1 Year (Commercial User)
Packaging + Shipping
Shipping Length
620 mm
Shipping Width
400 mm
Shipping Height
360 mm
Shipping Weight (Gross)
27.0 kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Cardboard Box
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
