Status
Available
Description
A small-size machine that is popular with craftspeople and hobbyists that do not need a lot of power or capacity when drilling small holes in their projects. The small overall size and weight are also perfect for storage and transport.
Features
- 5 Spindle Speeds

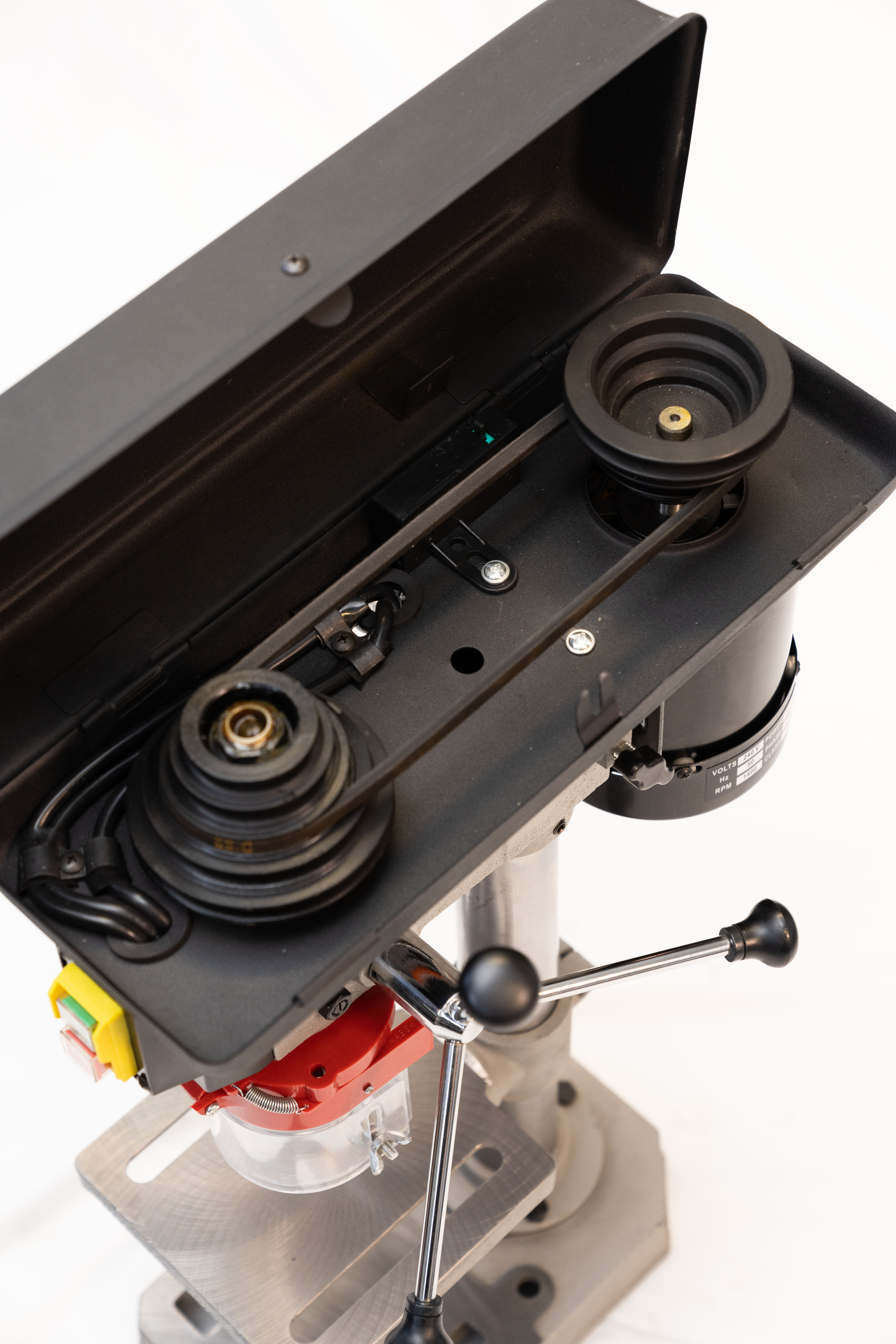

- Easy-change pulley drive systems give multiple spindle speed choices
- Adjustable depth stops are great for repeatable drilling
- 3 feed handles provide excellent control when drilling
- Heavy cast iron bases have slots for attaching jigs or fixtures
- Machined, cast iron tables include slots for attaching clamps, vices, etc.
- Tables tilt and easily move up or down along the column for best positioning
- Thick, metal columns for strong, rigid support
- Includes chuck keys, holders, and speed selection charts
Specifications
- Quill Diameter: 1-1/2"
- Table Tilts: 45°
- Table Rotates: 360°
Comparable Models
- DP-130S
- DP20013B
- Rikon 30-100
Comparable Products Disclosure Summary: Our product comparisons are based on our first-hand experiences and knowledge of models we've sold in the past. We aim to provide objective and accurate information to assist you in making informed decisions. We do not receive compensation for featuring products in our comparisons. For more details on our disclosure practices, please click here to view the full disclosure statement.
Additional Information
Model
Type
Drill Press
SKU
9700081
Part Number
OT-DP20013B
Barcode
735745531563
Brand
Oltre
Size
200mm (8")
Configuration
Configuration
The term "configuration" refers to the design or setup of a machine, specifically whether it is benchtop, pedestal, or portable style.Benchtop Configuration: Machines with a benchtop configuration are designed to be placed on a workbench or tabletop. These machines are typically compact and ideal for smaller workspaces or projects.Pedestal Configuration: Machines with a pedestal configuration are mounted on a sturdy pedestal or stand. This configuration provides stability and may offer additional height and accessibility for certain applications.Portable Configuration: Machines with a portable configuration are designed to be easily transported and used in various locations. These machines are lightweight and often feature handles or carrying cases for convenient portability.Understanding the configuration of a machine is important as it determines how it will fit into your workspace and how you will interact with it during operation.
Benchtop
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Motor Power (Output)
Motor Power (Output)
Output power means the maximum power that the motor puts out under ideal conditions.
185W (0.25HP)
Chuck Taper
JT33
Chuck Type
Keyed
Keyed / Keyless
Keyed
Table Size
168mm (6-5/8”) x 162mm (6-3/8”)
Chuck Capacity
12mm
Speed Range
500-2500RPM
Base Size
280mm x 180mm
Dimensions
Product Height
575mm
Product Weight (Net Weight)
17kg
Country of Origin
Designed, Researched & Developed in
Australia
Manufactured in
China
Workshop (Site) Info
Electrical Connection
10Amp Lead & Plug
Other Requirements
Benchtop
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
2 Years (Home User) or 1 Year (Commercial User)
Packaging + Shipping
Shipping Length
580mm
Shipping Width
404mm
Shipping Height
186mm
Shipping Weight (Gross)
33.48kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Cardboard Box
Packaging Box Qty
1
Forklift / Tail Lift to Unload is Highly Recommended
Shipping Notes
Shipping Notes
It is highly recommended that goods over 25Kg are handled with a forklift / tail lift. For items over 32kgs, you must ensure there is assistance for loading and unloading unless you have selected the Tail lift options, otherwise there will be additional fees.This is for safe handling for the product and the handler.Please ADD a Tail Lift to your order - should you wish to include a Tail Lift.Goods over 50Kg must be handled by a Forklift / Tail Lift.
This product is classified as 'Heavy / Oversized' and generally does not qualify for FREE SHIPPING.
