Status
Available
Description

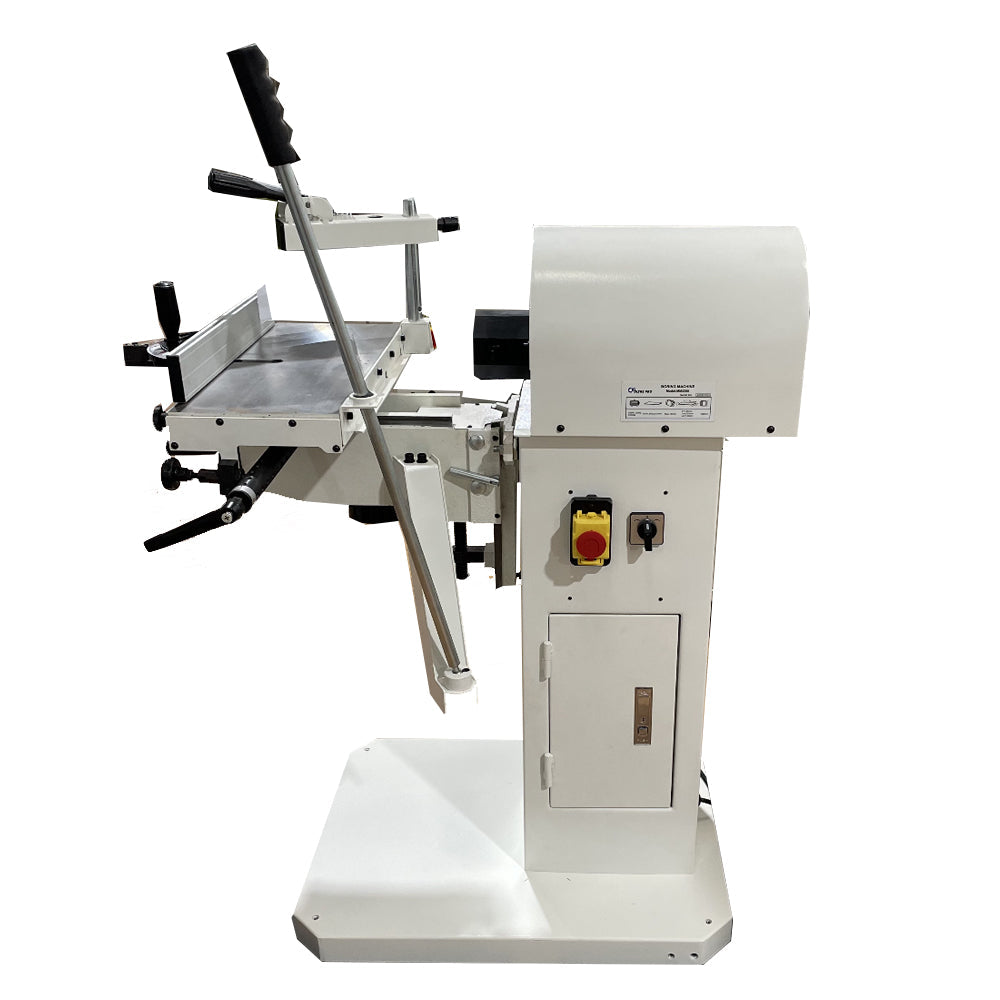

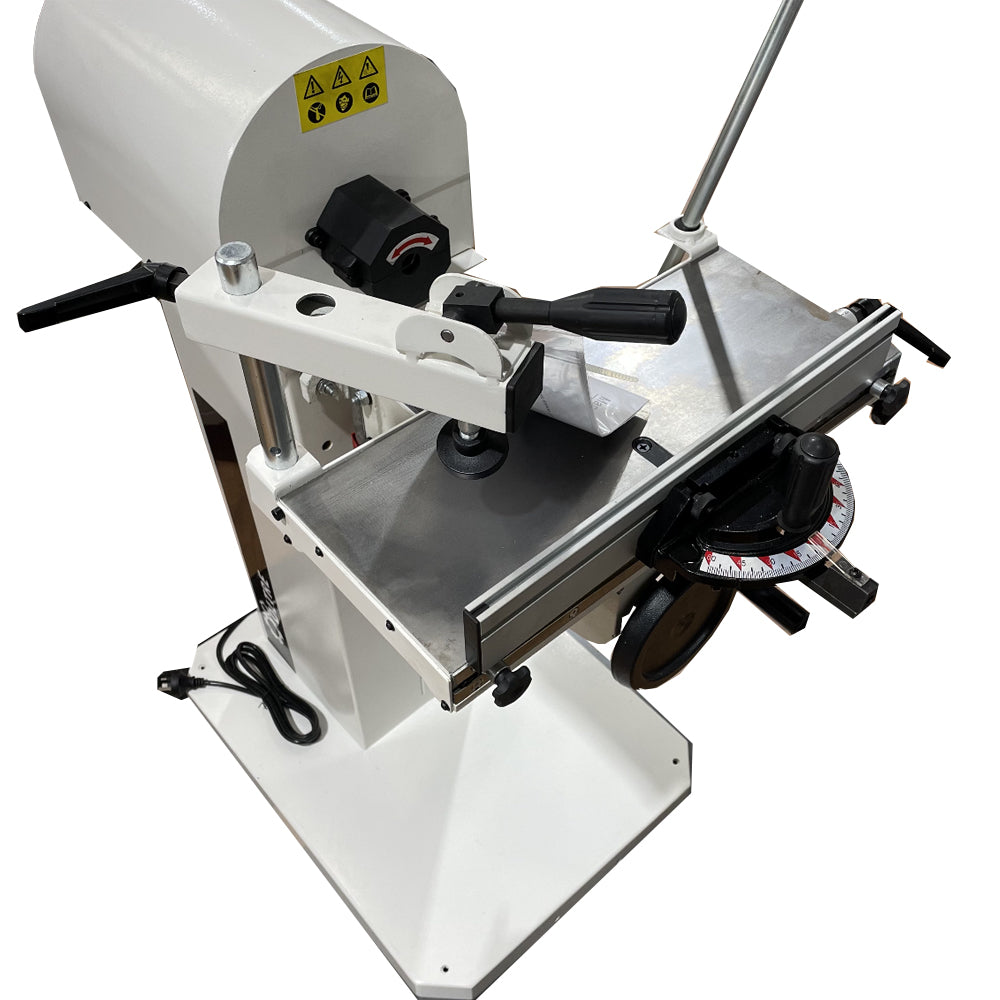

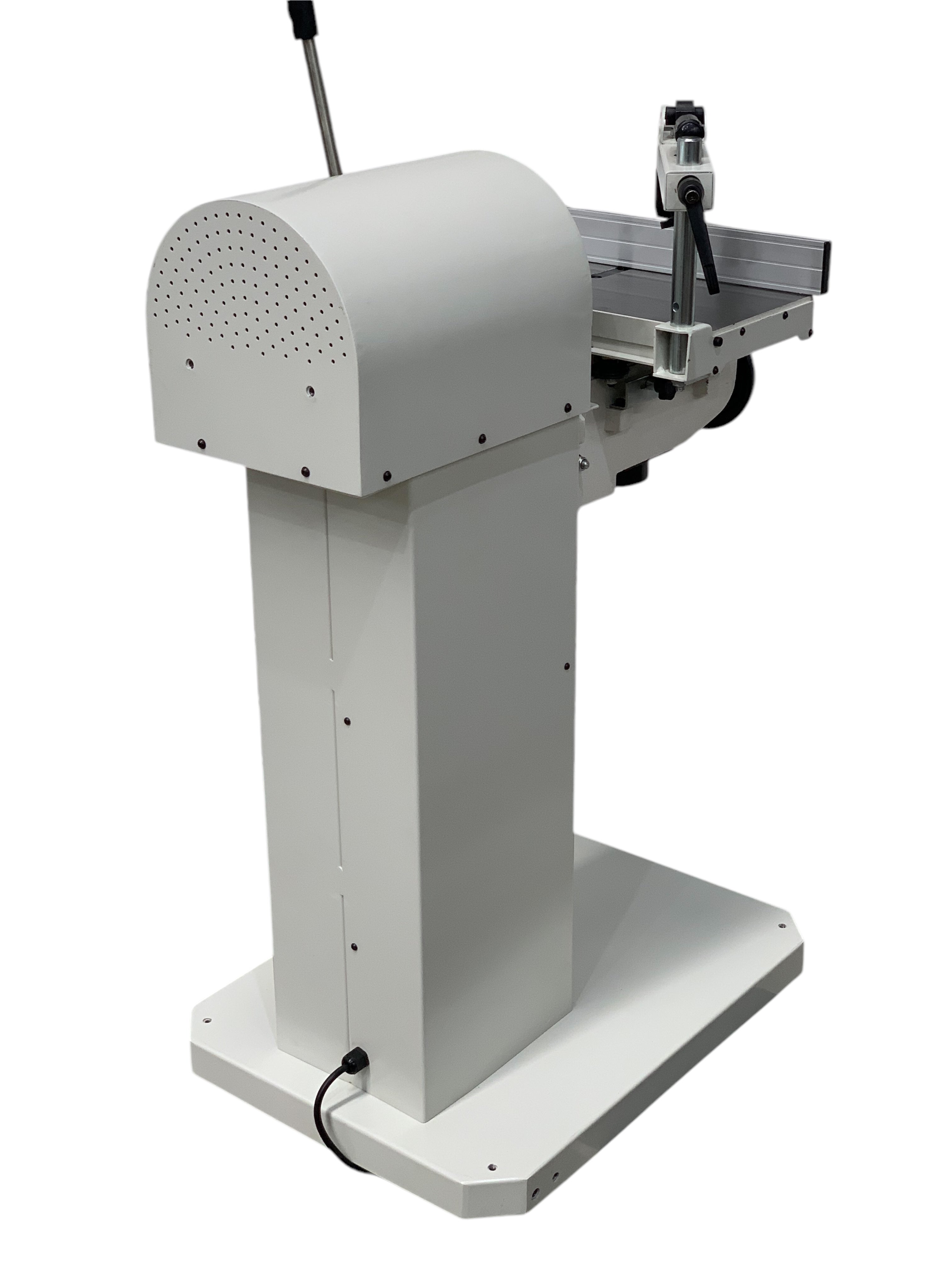

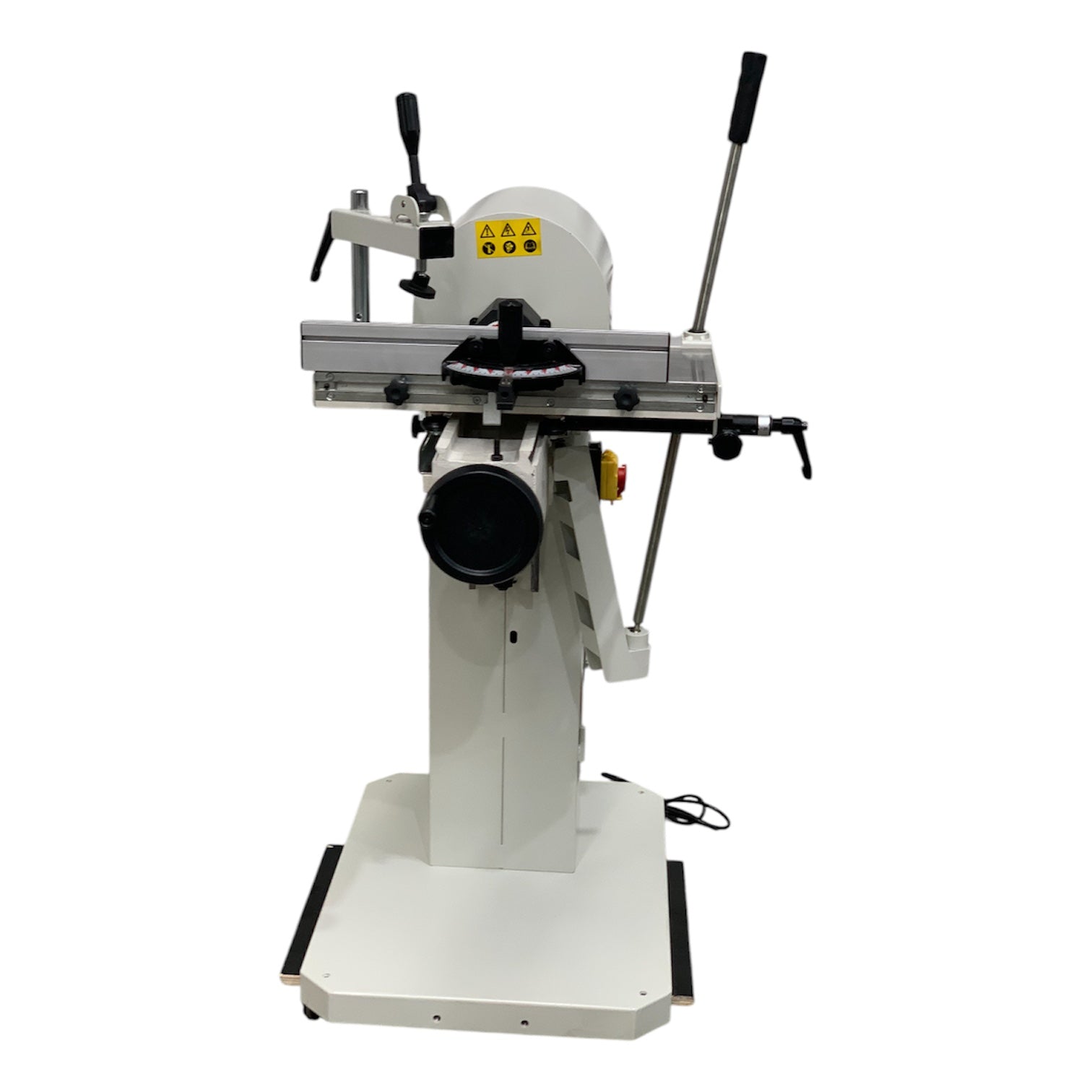

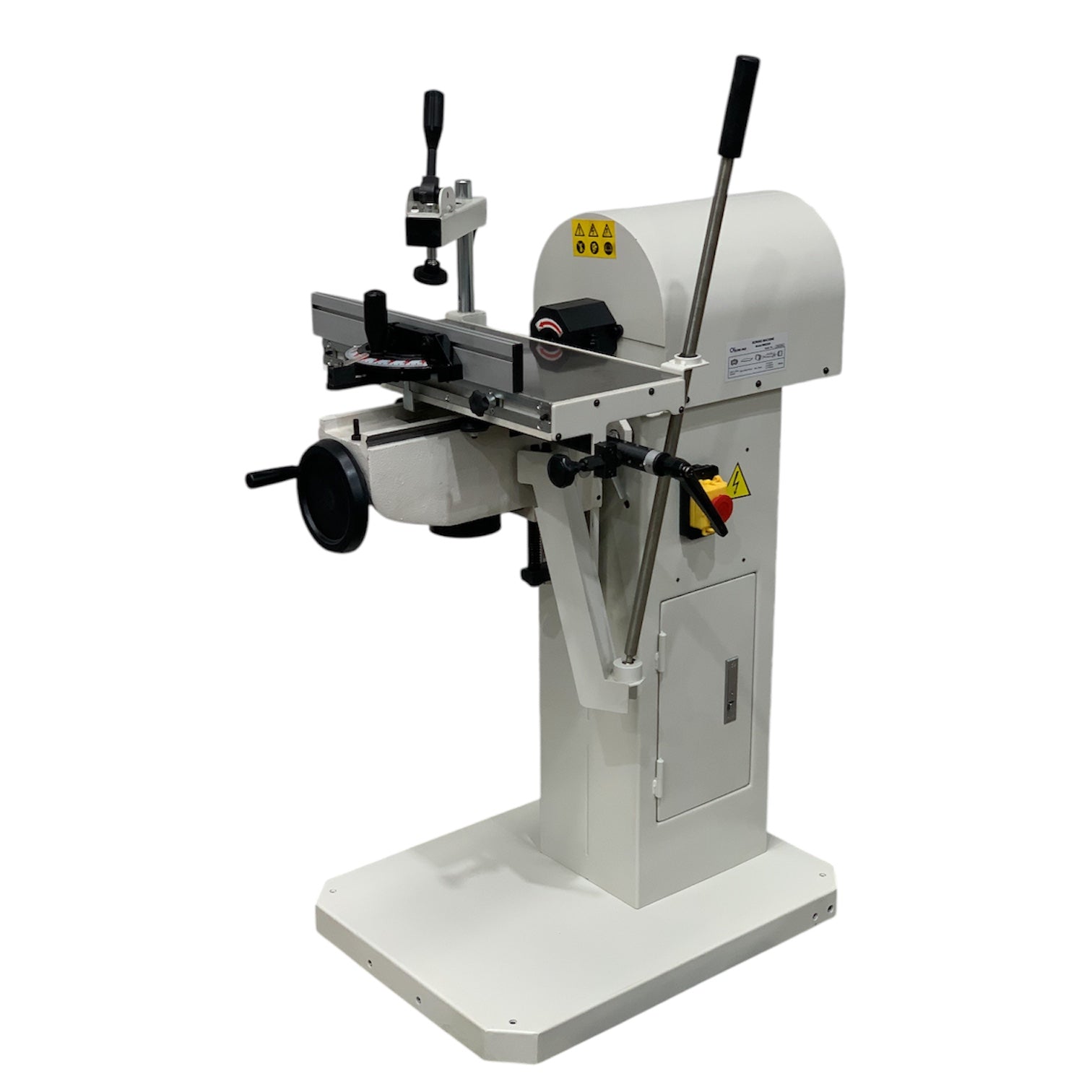

The Oltre MM2200 Slot Mortising Machine is a precision-engineered tool designed to create accurate slot mortises effortlessly. Ideal for both professional woodworkers and hobbyists, this versatile machine provides exceptional performance with its tilting table and column, enabling complex angled mortising tasks. Built for durability, the Oltre MM2200 ensures consistent, smooth operation, making it an indispensable tool for any woodworking workshop.
Key Features:
- Chisel Capacity: Accommodates slot mortising tools ranging from 6.35mm to 25.4mm for diverse applications.
- Slot Depth Precision: Achieve slot mortises up to 76mm deep with ease, ensuring smooth and accurate results.

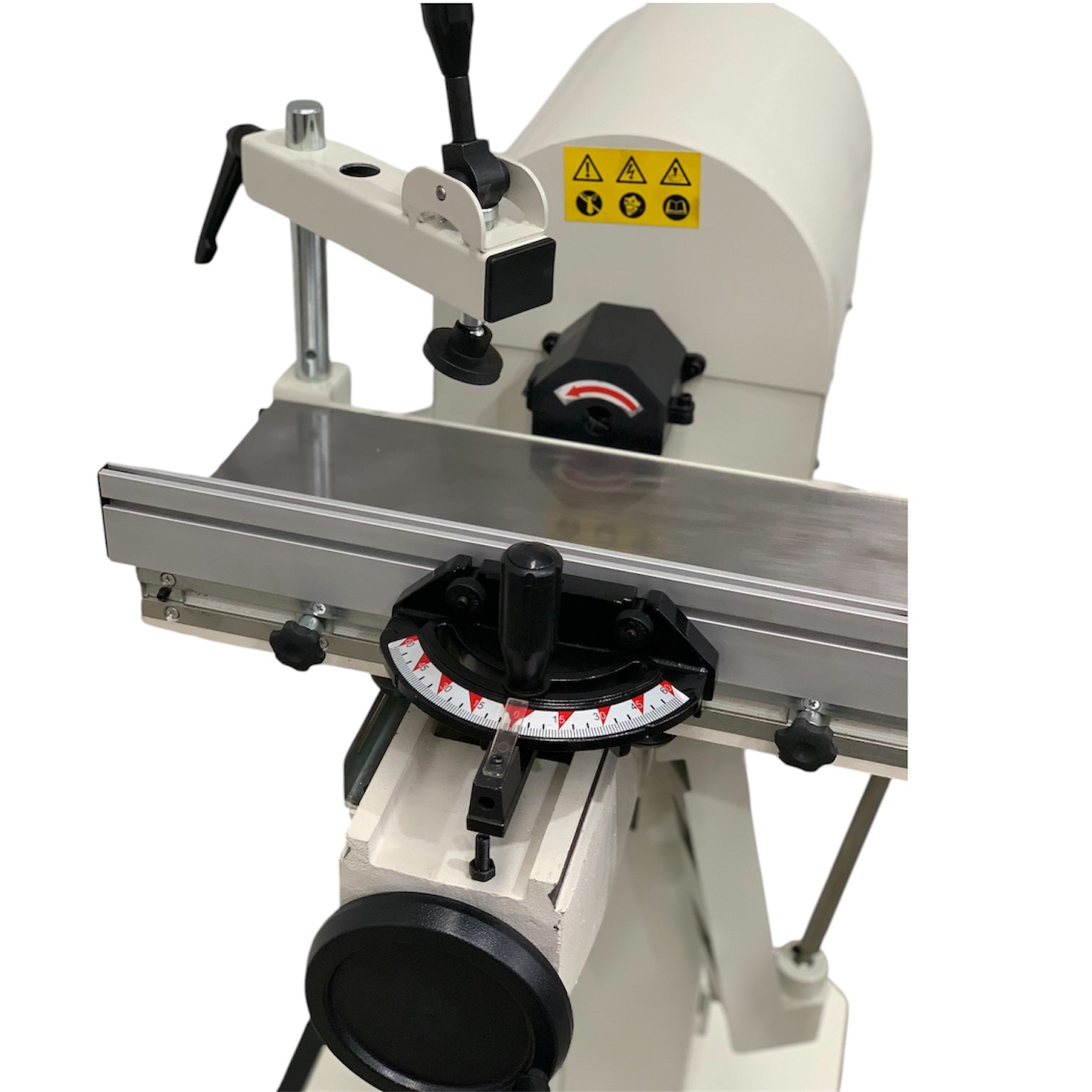

- Adjustable Work Area: Features a large 500 x 200mm table and a 160mm clamping width to support a variety of workpieces.

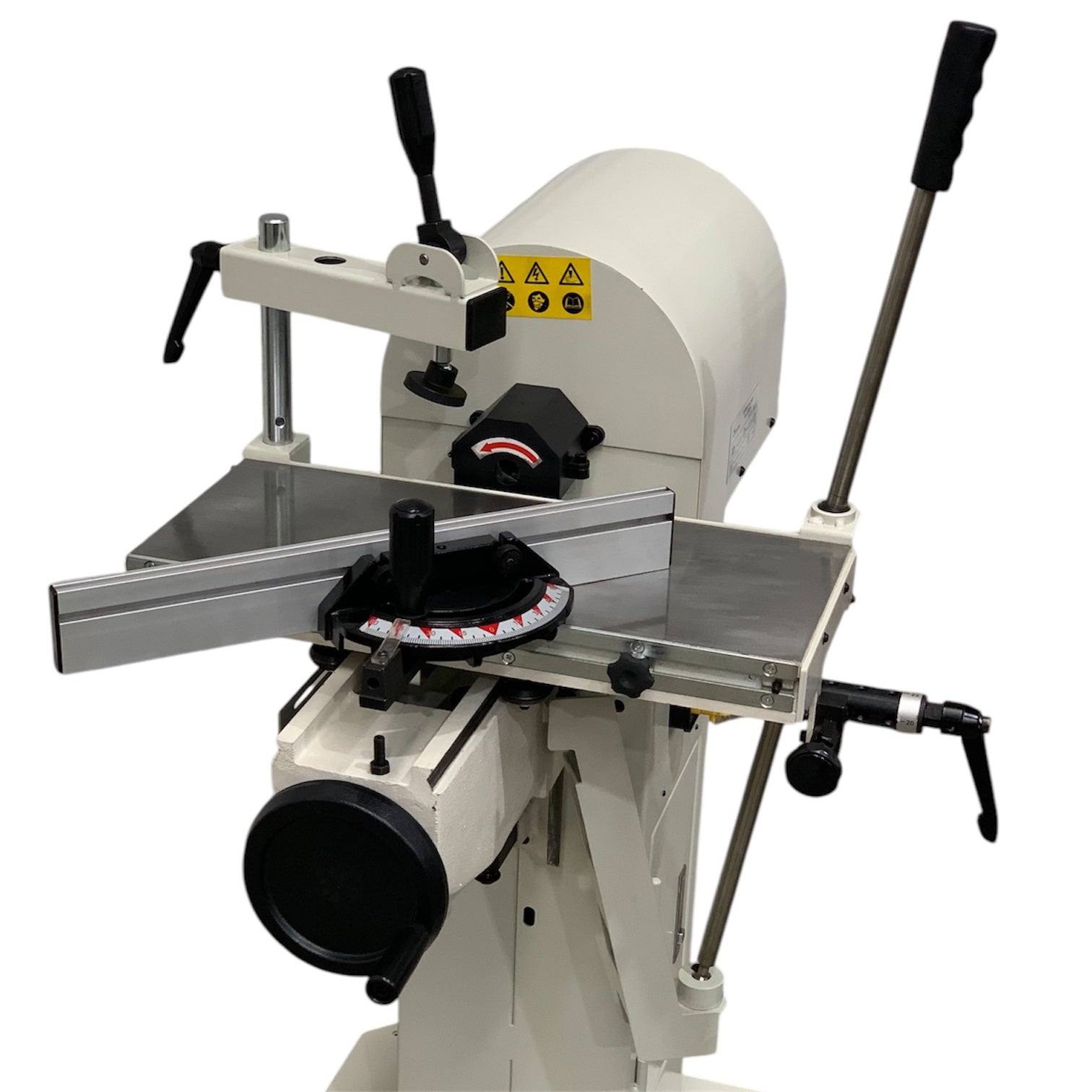

- Tilt Functionality: Both the table and column tilt ±20°, providing flexibility for angled mortising, perfect for complex joinery.
- Smooth Operation: The powerful spindle operates at 1400 RPM, ensuring efficient and precise slot cutting.
- Enhanced Control: Includes a lateral stroke of 280mm and vertical choke of 140mm for greater flexibility in your work.
Additional Features:
- Lower Assembling Fork: Ideal for drilling and mortising thicker workpieces with ease.

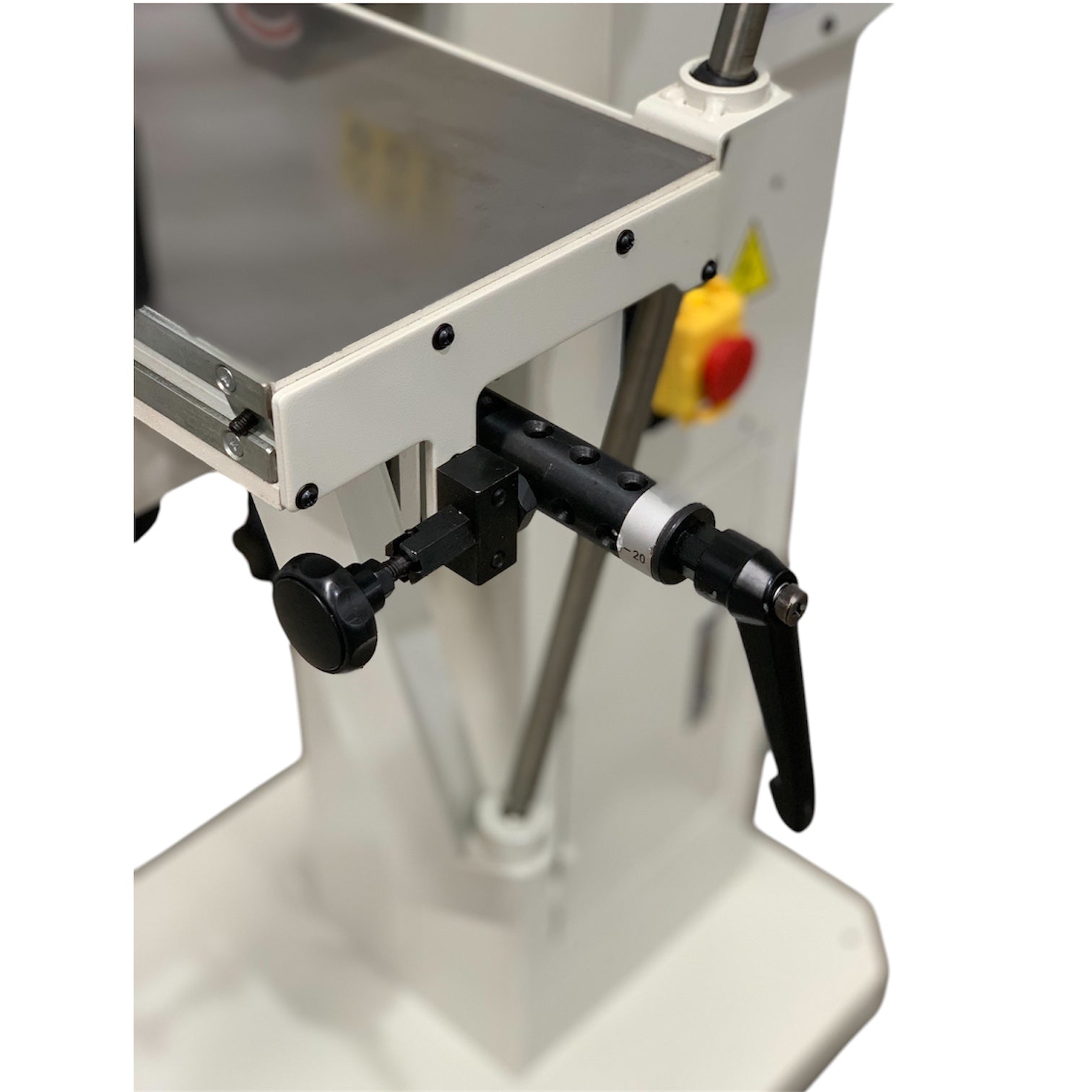

- Pin Drilling Device: Includes 4 defined engage positions (16mm, 20mm, 22mm, 25mm) for versatility.

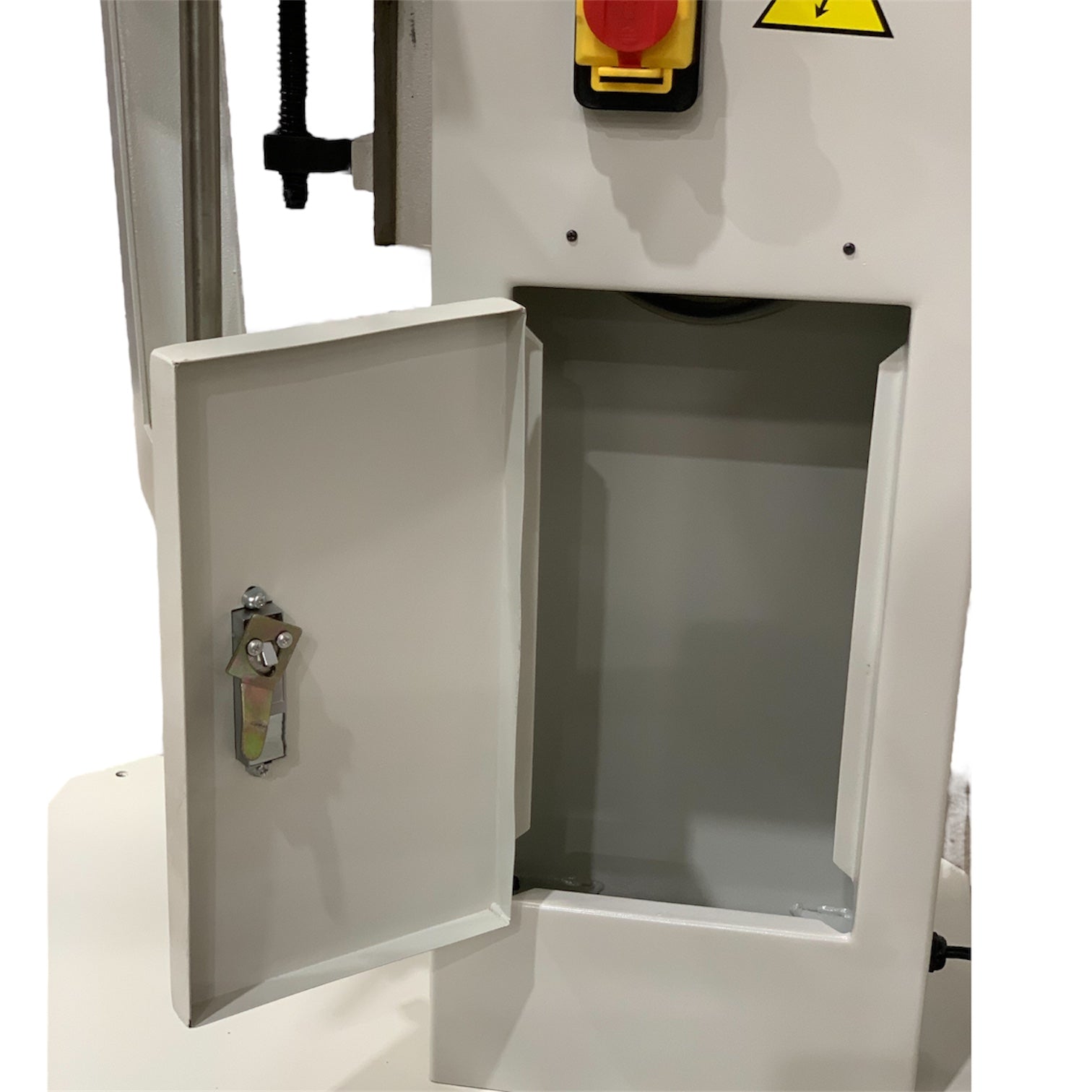

- Built-in Tool Storage: Convenient cabinet door for secure storage of tools and accessories.
Whether you're crafting fine joinery or tackling large-scale projects, the Oltre MM2200 Slot Mortising Machine offers the accuracy, versatility, and durability required to achieve professional-quality results every time.
Additional Information
Model
Type
Mortising Machine
SKU
8001467
Part Number
MM2200
Barcode
735745533437
Brand
Oltre

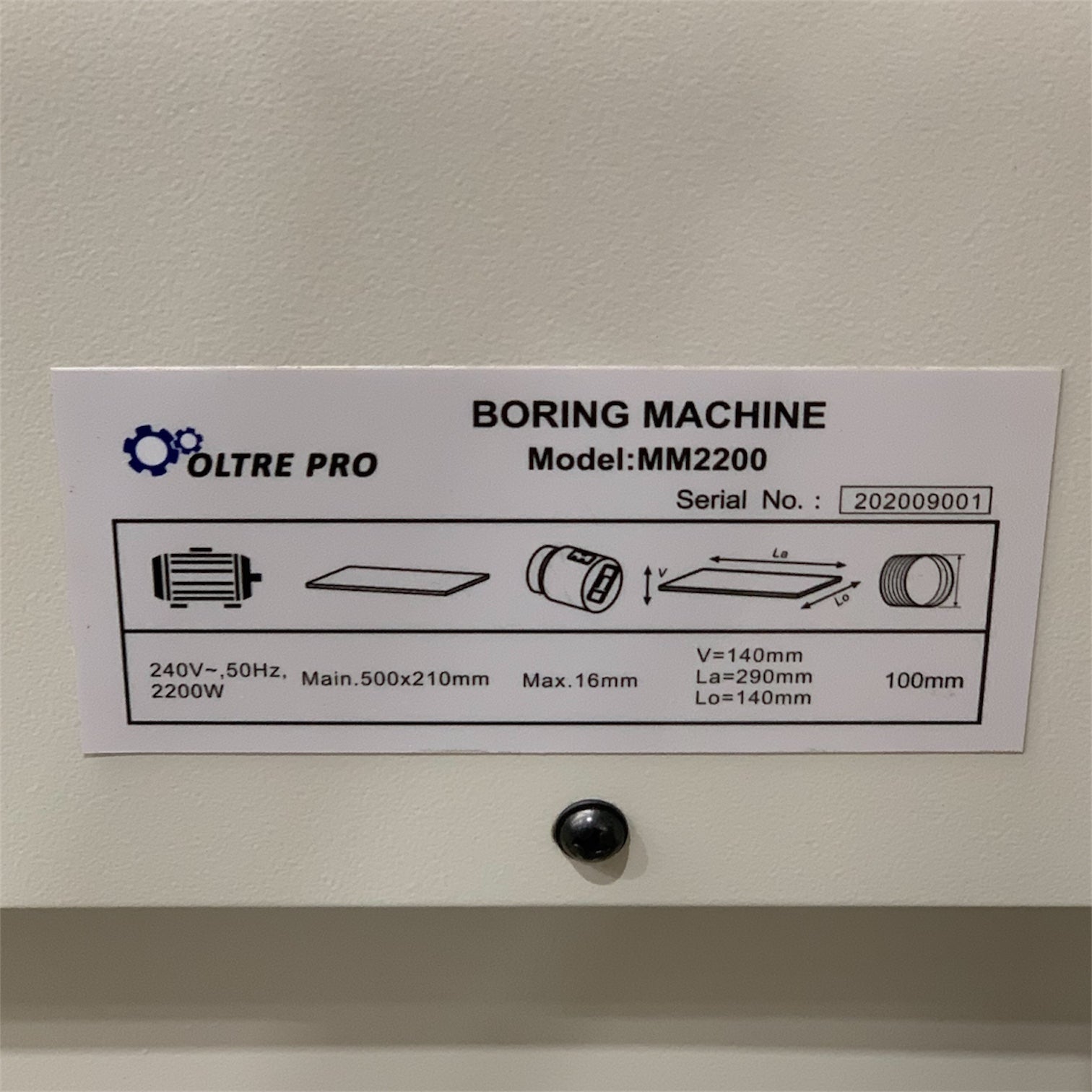

Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
3HP 2200W
Motor Power (Output)
Motor Power (Output)
Output power means the maximum power that the motor puts out under ideal conditions.
3HP (2.2kW)
Chuck Capacity
20mm
Table Size
500mm x 210mm
Dimensions
Product Weight (Net Weight)
97kg
Country of Origin
Manufactured in
China
Workshop (Site) Info
Dust Hose Inlet Diameter
100mm
Packaging + Shipping
Shipping Length
1060mm
Shipping Width
880mm
Shipping Height
525mm
Shipping Weight (Gross)
1117kg
Shipping Notes
Shipping Notes
It is highly recommended that goods over 25Kg are handled with a forklift / tail lift. For items over 32kgs, you must ensure there is assistance for loading and unloading unless you have selected the Tail lift options, otherwise there will be additional fees.This is for safe handling for the product and the handler.Please ADD a Tail Lift to your order - should you wish to include a Tail Lift.Goods over 50Kg must be handled by a Forklift / Tail Lift.
This product is classified as 'Heavy / Oversized' and generally does not qualify for FREE SHIPPING.
