Type

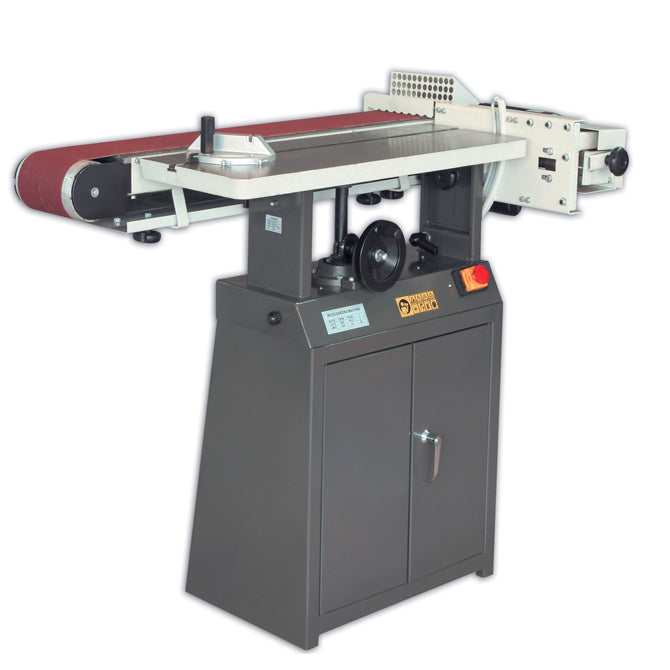

Big Boy / Oscillating Belt Sander
SKU
8600296
Part Number
BS6X100-1
Barcode
745240316954
Brand
Oltre
Status
Available
Description
Features
- Auto oscillating function
- Belt can travel vertically & horizontally
- Precision machined cast iron table
- Extension sanding table included
- Enclosed support with integrated storage cabinet
- Mitre gauge included
- Crank Handle for rise/fall (optional)
- MM2315B without crank handle
- MM2315BC with crank handle
- Fence Size: 700 x 60mm
- Table Travel: 80mm (up/down)
Additional Information
Model
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
4HP (3kW / 3000W)
Motor Power (Output)
Motor Power (Output)
Output power means the maximum power that the motor puts out under ideal conditions.
3HP (2.2kW)
Sanding Belt Size
150mm x 2150mm
Sanding Belt Speed
960m/min.
Sanding Belt Table Tilt
0-90°
Sanding Roller
110 mm
Table Size
840 x 300mm
Dimensions
Product Weight (Net Weight)
148 kg
Country of Origin
Manufactured in
China
Safety
Dust Port
100mm
Workshop (Site) Info
Workshop Requirements
Dust Extraction
Packaging + Shipping
Shipping Length
620 mm
Shipping Width
470 mm
Shipping Height
620 mm
Shipping Weight (Gross)
210.0 kg
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Shipping Notes
This product exceeds hand unloading limits and requires a tail lift truck or forklift at the unloading location (Receivers end).
