12Kg Stainless Steel Glue Feeder Tank for PVA with 1 x 0002 Glue Gun 9012 by Pizzi
12Kg Stainless Steel Glue Feeder Tank for PVA with 1 x 0002 Glue Gun 9012 by Pizzi
12Kg Stainless Steel Glue Feeder Tank for PVA with 1 x 0002 Glue Gun 9012 by Pizzi

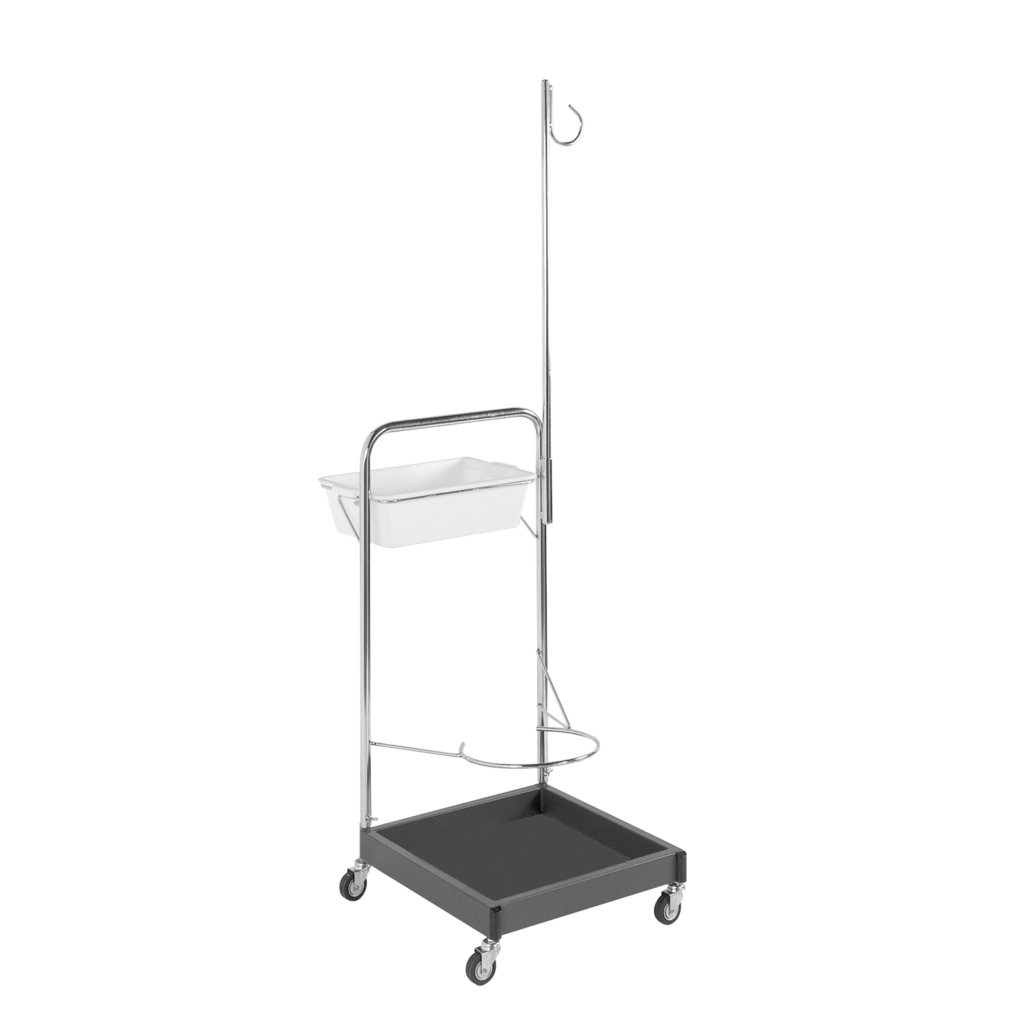

Optional 0157 Trolley - Sold Separately

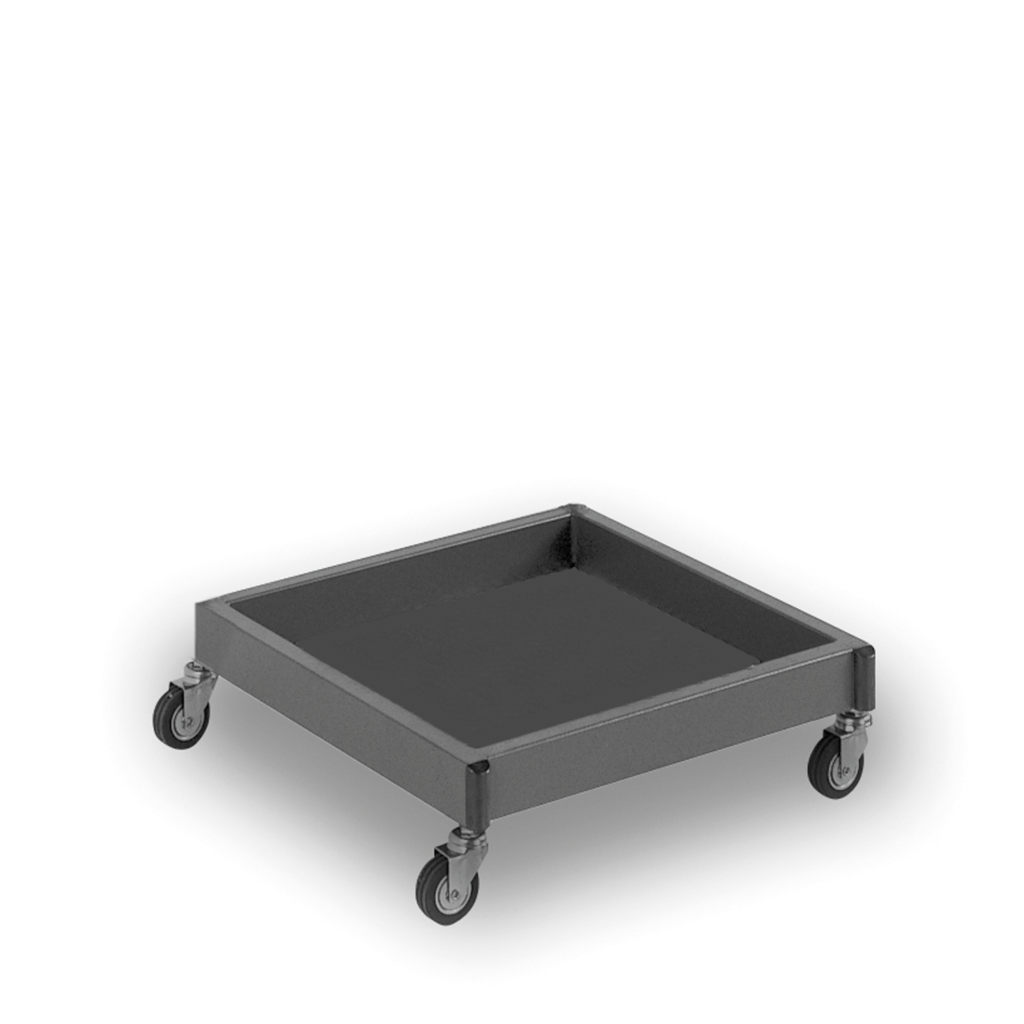

Optional 0357 Trolley - Sold Separately
Roll over image to zoom in Click on image to zoom
12Kg Stainless Steel Glue Feeder Tank for PVA with 1 x 0002 Glue Gun 9012 by Pizzi12Kg Stainless Steel Glue Feeder Tank for PVA with 1 x 0002 Glue Gun 9012 by Pizzi12Kg Stainless Steel Glue Feeder Tank for PVA with 1 x 0002 Glue Gun 9012 by PizziOptional 0157 Trolley - Sold Separately Optional 0357 Trolley - Sold Separately

12Kg Stainless Steel Glue Feeder Tank for PVA with 1 x 0002 Glue Gun 9012 by Pizzi

PizziSKU: 36698
Price:
$1,810.00
Stock:
Re-stocking soon

Stores

Buy from Beyond Tools Search Another Dealer

Status

Available

Description

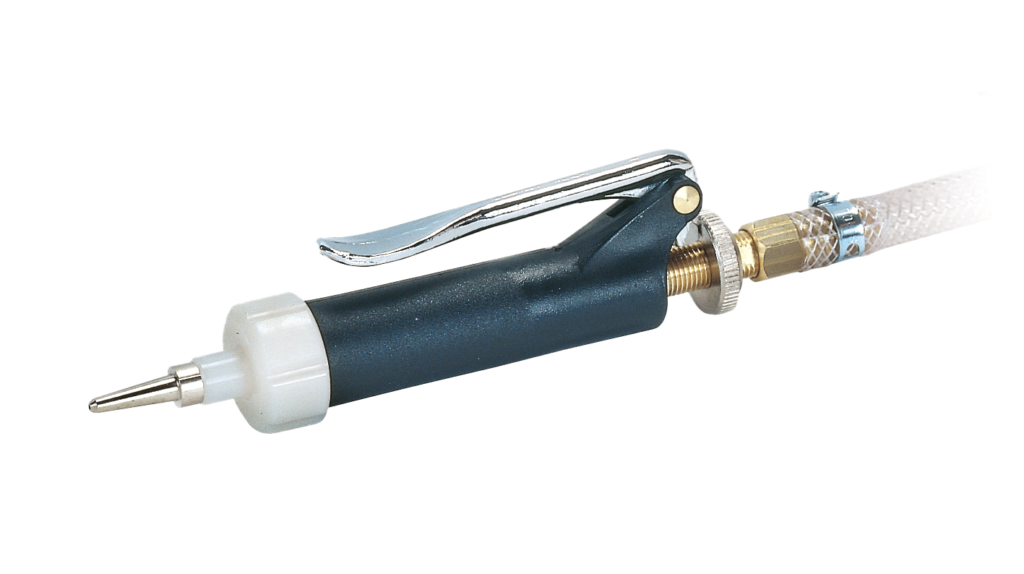

Pressurized glue tank for PVA glues with 1 glue gun with adjustable glue flow and universal pointed nozzle.

Recommended viscosity
Brookfield viscosity from 3.000 to 15.000 mPa s, at an operating temperature of 20°C/68° F.

NOTE

This system grants accurate adhesive dosing, the right adhesive quantity, in the correct area, covering precisely just the requested surface on any component and handwork.

The adhesive is dispensed by extrusion.

Each pressurized glue tank can be fitted with 1, 2 or 3 glue guns on which it is possible to connect a wide range of standard nozzles and also custom-made ones, all interchangeable on PIZZI glue guns.

All PIZZI pressurized glue tanks can be equipped with a wide range of standard accessories and nozzles to fullfil any specific needs and glue task.

This system can be supplied without glue gun (cod. 9010) and also, with a second type of glue gun with anatomic grip (cod. 9015).

Features

  • Entirely made of stainless steel.

  • Glue capacity 12kg.

  • Max pressure 5 bar.

Additional Information

Model
Type
Glue Feeder
SKU
36698
Part Number
9012
Brand
Pizzi
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
Air / Pneumatic
Capacity
12Kg
PSI
75 PSI (5 Bar)
Dimensions
Product Length
248mm
Product Width
248mm
Product Height
635mm
Product Weight (Net Weight)
14kg
Country of Origin
Manufactured in
Italy
Features
Standard Inclusions
12Kg A12 Series Stainless Steel Glue Tank by Pizzi1 x 0002 Glue Gun with adjustable glue flow and universal pointed nozzle
Packaging + Shipping
Shipping Weight (Gross)
15kg
