Type
Glue Feeder
SKU
41186
Part Number
0165
Brand
Pizzi
Status
Available
Description
Pressurized gluing system for metered glue dosing with 1 glue gun with anatomic grip and dual function for glue application
Entirely made of stainless steel.
Tank capacity 12 kg.
Max pressure 5 bar.
Recommended viscosity
PVA adhesives only, Brookfield viscosity from 3.000 to 15.000 mPa s, at an operating temperature of 20°C/68° F.
NOTE
For professional, precise, fast and clean glue application (PVAc), as well as in any other glue application where a controlled, constant and accurate dosing is needed, both for small batches, custom-made parts and mass processing operations, aiming to optimize the working process in any gluing station.
For solid wood, timber products and panel processing.
For the furniture and housing industry and the joinery.
The pneumatic control guarantees always the same and right glue amount, constantly.
This range of metered gluing systems presents 2 helpful standard adjustments:

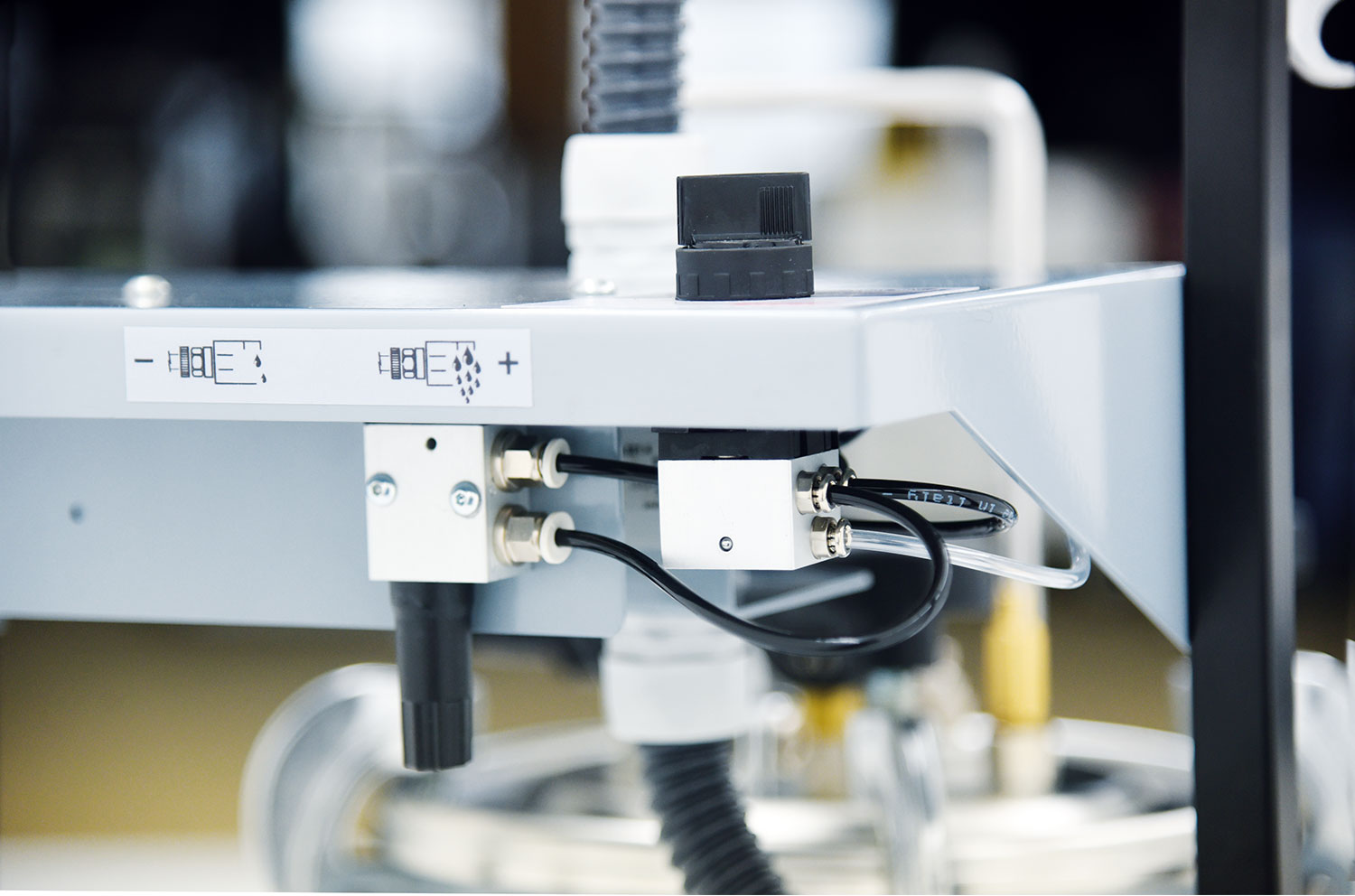

1) Glue flow/ amount adjustment;
2) Glue dispensing time, therefore, open time of the glue gun.
Additional Information
Model
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
Air / Pneumatic
Capacity
12Kg
PSI
75 PSI (5 Bar)
Dimensions
Product Weight (Net Weight)
14 kg
Country of Origin
Manufactured in
Italy
Features
Standard Inclusions
12Kg A12 Series Stainless Steel Glue Tank by Pizzi
1 x Anatomic Grip Glue Gun
1 x Trolley
1 x Anatomic Grip Glue Gun
1 x Trolley
Brochure
Packaging + Shipping
Shipping Weight (Gross)
15.0 kg
Shipping Notes
This product is classified as 'Heavy / Oversized' and generally does not qualify for FREE SHIPPING.
