Description

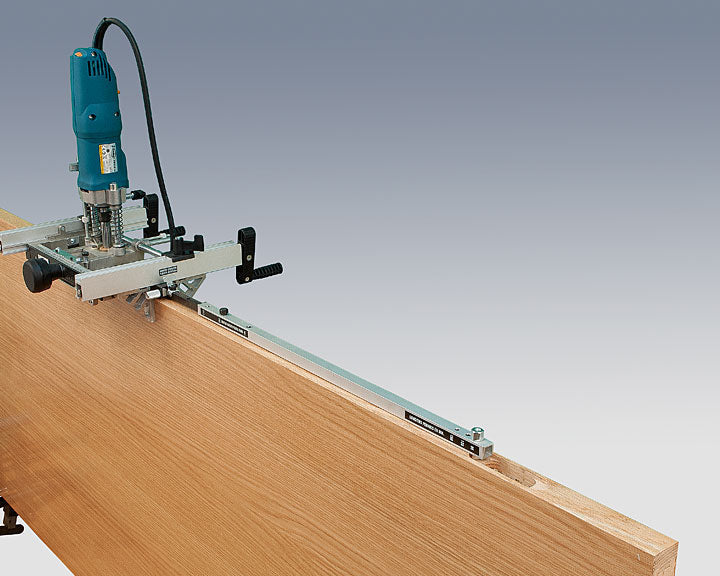

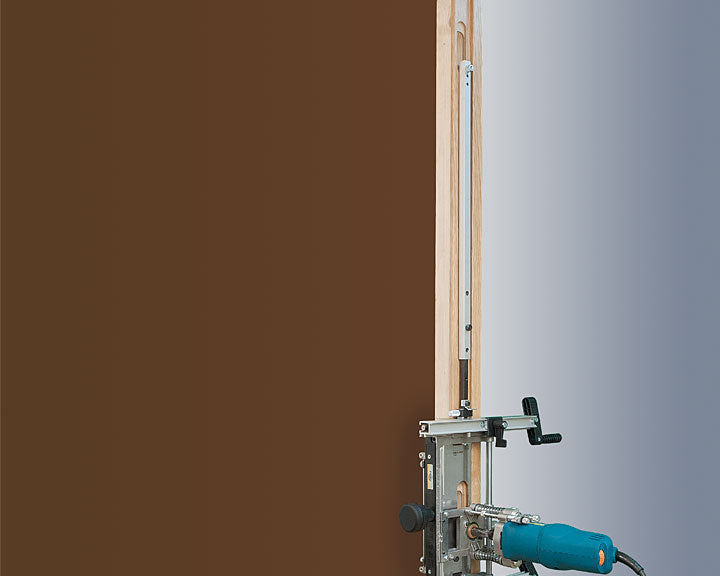

The Virutex FR129VB Router for Fitting Hinges is a professional-grade hinge routing system designed to accurately machine recesses for concealed, invisible and traditional butt hinges in timber doors and door frames. Built for speed, precision and repeatability, the FR129VB eliminates the need for measuring and marking, allowing professional installers to route 3 or 4 hinges on left or right-hand opening doors with outstanding accuracy.
Unlike conventional hinge routing methods, the FR129VB features an innovative double-depth stop system, enabling both depths required for concealed hinges to be machined in a single operation without changing templates. This significantly reduces installation time while ensuring consistently precise results.
Powered by a robust 1,000W motor with variable electronic speed control and constant speed under load, the FR129VB delivers smooth, clean routing performance across hardwoods, softwoods and engineered timber products. The quick-adjust clamping system securely fixes the router to both doors and frames without damaging finished surfaces, while interchangeable templates allow routing of a wide variety of concealed and traditional hinges.
Designed and manufactured by Virutex in Spain, the FR129VB is trusted by professional door manufacturers, joiners, builders, locksmiths and installation specialists worldwide.
Features
- Professional router for fitting concealed, invisible and traditional door hinges
- Fast installation of 3 or 4 hinges without measuring or marking
- Suitable for left and right-hand opening doors
- Double-depth stop allows both concealed hinge recesses to be routed in one operation
- Electronic variable speed control
- Constant speed electronics maintain cutter performance under load
- Powerful 1,000W motor
- Quick-change template system
- New clamp design securely grips doors and frames without surface damage
- Compatible with optional concealed hinge kits and traditional hinge templates
- Heavy-duty carrying case included
- Genuine Virutex professional woodworking equipment
- Made in Spain
Ideal Applications
Perfect for:
- Door manufacturers
- Joinery workshops
- Cabinet makers
- Builders
- Carpenters
- Locksmiths
- Shopfitters
- Commercial door installation
- Residential door installation
- Timber door production
Suitable For

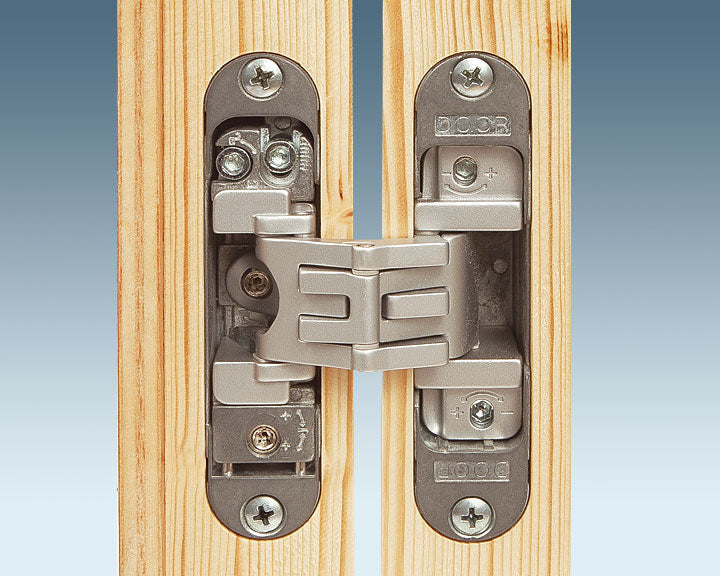

- Concealed hinges
- Invisible hinges

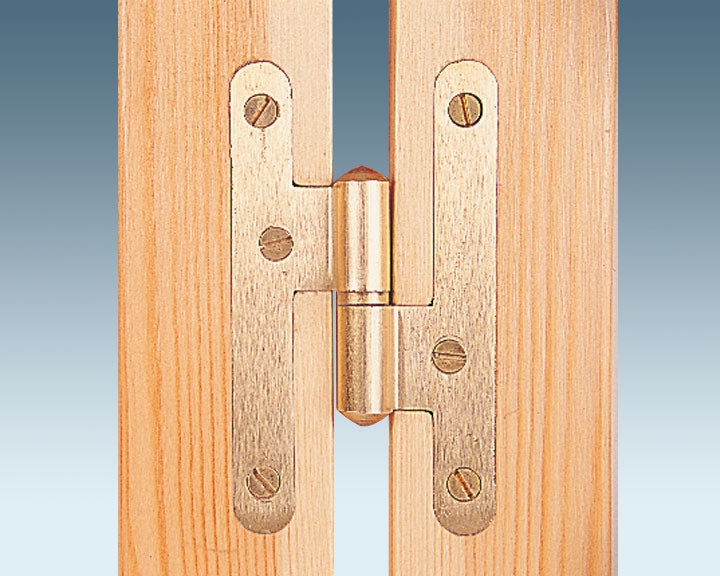

- Traditional butt hinges
- Interior doors
- Exterior timber doors
- Timber door frames
- Pre-hung doors
Specifications
| Specification | Details |
|---|---|
| Brand | Virutex |
| Model | FR129VB |
| Product Type | Router for Fitting Hinges |
| Motor Power | 1,000W |
| Variable Speed | 14,000 – 27,000 RPM |
| Collet Capacity | 8 mm |
| Maximum Cutter Diameter | 26 mm |
| Maximum Trimming Dimensions | 165 × 74 mm |
| Maximum Trimming Depth | 11 mm |
| Maximum Trimming Depth (Concealed Hinge Kit) | 40 mm |
| Minimum Clamp Opening | 33 mm |
| Maximum Clamp Opening | 200 mm* |
| Weight | 4.3 kg |
| Country of Manufacture | Spain |
*250 mm clamp version also available.
Standard Equipment
- Virutex FR129VB Router
- Ø7.6 mm Carbide Router Bit (Ref. 1140059)
- Guide Ring (Ref. 2950105)

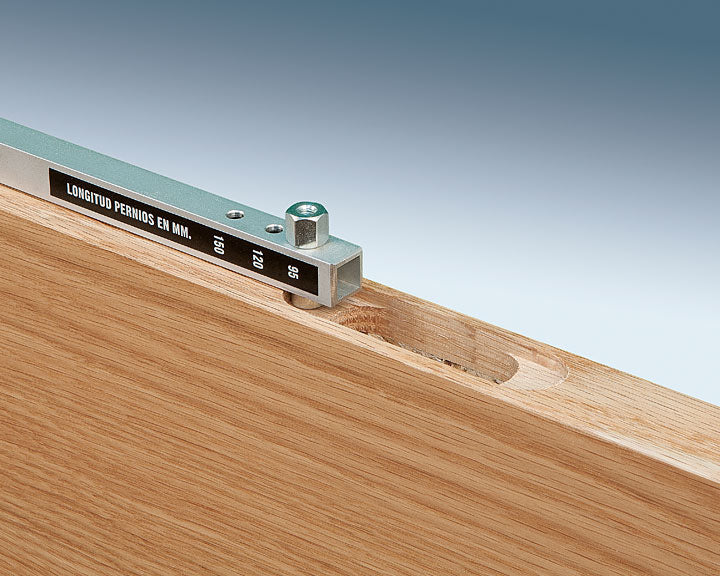

- Two recess distributor rods for 3 or 4 hinges
- Service keys
- Heavy-duty carrying case
Optional Accessories
Concealed Hinge Kits
Available separately in:
Optional Accessories
- RC29M Corner Chisel
- Guide Rings
- Templates for concealed hinges
- Traditional hinge templates
- Special eyebolt templates
- Replacement carbide router bits
Why Choose the Virutex FR129VB?
The FR129VB has become one of the industry's preferred hinge routing systems because it dramatically reduces installation time while delivering factory-quality accuracy. Its intelligent design removes the need for repetitive measuring and marking, making it ideal for workshops producing multiple doors or installers fitting doors on-site.
Combined with genuine Virutex hinge kits and templates, the FR129VB provides an efficient, repeatable solution for routing concealed, invisible and traditional hinges with exceptional precision.
