Vacuum Press ECO-B by Ribex

RibexSKU: 8723321

Sale price$42,900.00

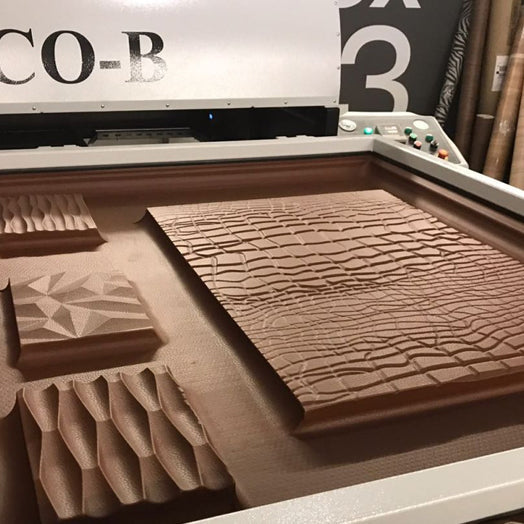

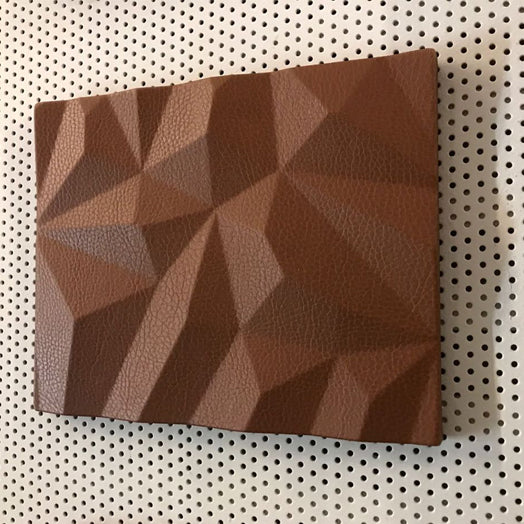

New generation RIBEX Vacuum Press Machines are used for flat or 3D lamination of pvc foils to MDF board, Chipwood, Plywood e.t.c and suitable for doors and cabinets, panels in kitchens, various furniture applications, in bathrooms and bedrooms. Process starts by heating cycle with high temperature quartz heating elements then gradually vacuum press cycle to finish foiling with negative suction pressure. Optional silicone membrane allows to also laminate veneers as well as the other laminating products onto the workpiece.
  • CE, ISO 9001 certified products
  • Automatic temperature control
  • Short Processing cycle
  • Independent vacuum and heat operation
  • Operation window for direct monitoring
  • Manual adjustment and usage
  • High thickness material processing up to 400 mm
  • Easy opening and closing head unit
  • Low cost maintenance
  • Low cost heaters
  • Minimum wastage and saving from time
  • Thermofoil PVC stand ( 1 pcs )
Table Frame Dimension : 2435 * 1350 mm
Table Usage Area : 2275 * 1230 mm
Maximum Working Thickness : 400 mm
Pump Motor Power : 2,8 kW
Pump Motor Power : 1450 d/dk
Pump Extracion Capacity : 105 m ³/h
Noise Limit : 68 Dba
Max Temprature : 200 °C
Total Power : 22,5 kW
Total Operation Time : 4-5 min.
Average Weight : 850 kgs.
Dimensions : 3000 * 3000 * 1650 mm
  • Robo Magnetic System for support the workpiece on worktable
  • Divisible Table to use material economize.
  • Second table preparation for single table machines
  • Extra Thermofoil PVC stand
  • Silicone membrane unit

Additional Information

Vacuum Press
Part Number
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
415V 50Hz 3 Phase
Table Size
2435mm x 1350mm
Product Length
3000 mm
Product Width
3000 mm
Product Height
1650 mm
Product Weight (Net Weight)
850 kg
Country of Origin
Manufactured in
Workshop (Site) Info
Electrical Connection
Excludes Plug & Lead (must be connected by Licensed Electrician)
Packaging + Shipping
Shipping Weight (Gross)
1.48 kg
