Type
Hot Melt Edge Bander
SKU
8601383
Series
Cobalt
Part Number
COBALT 25 240V
Brand
ToughCut
Status
Available
Description

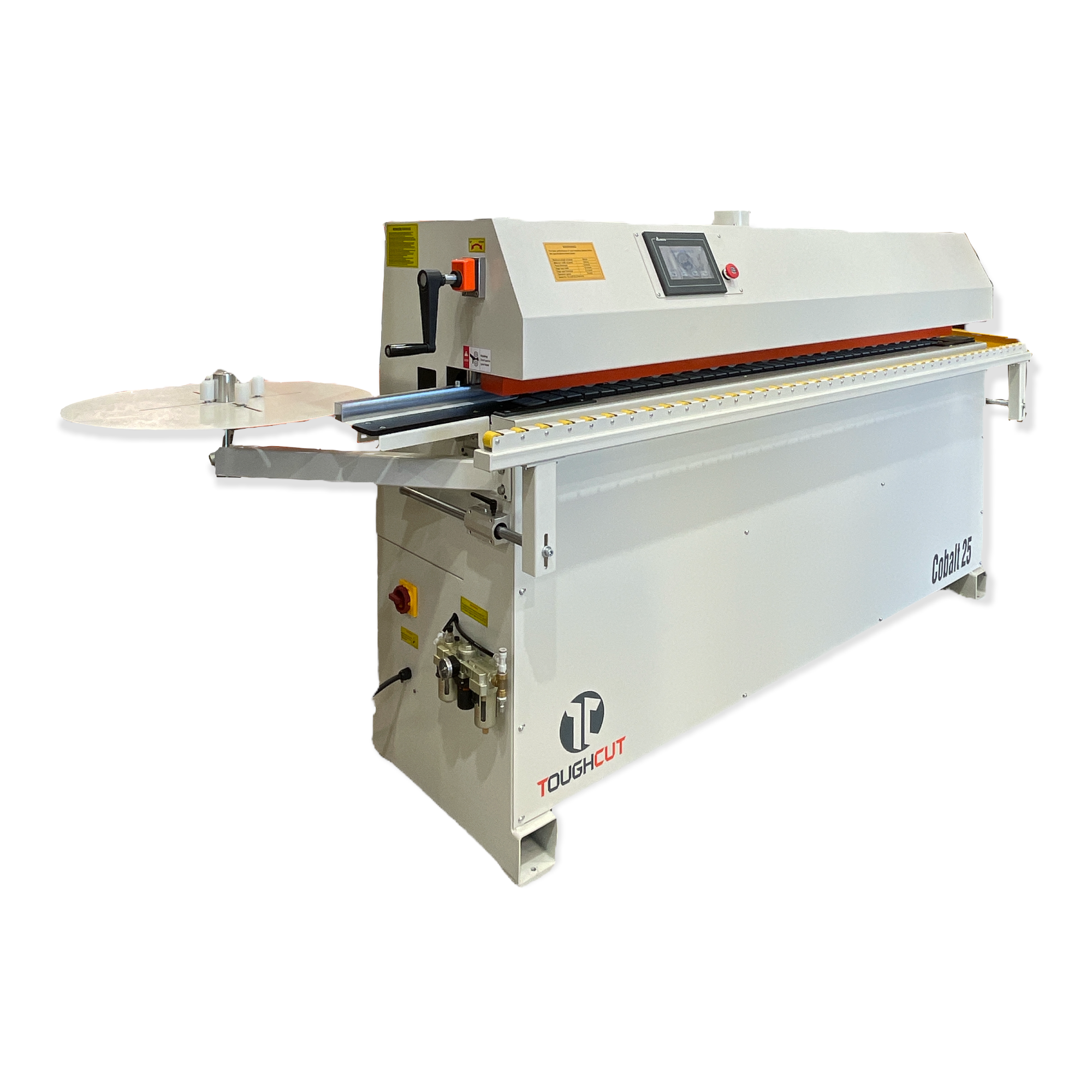

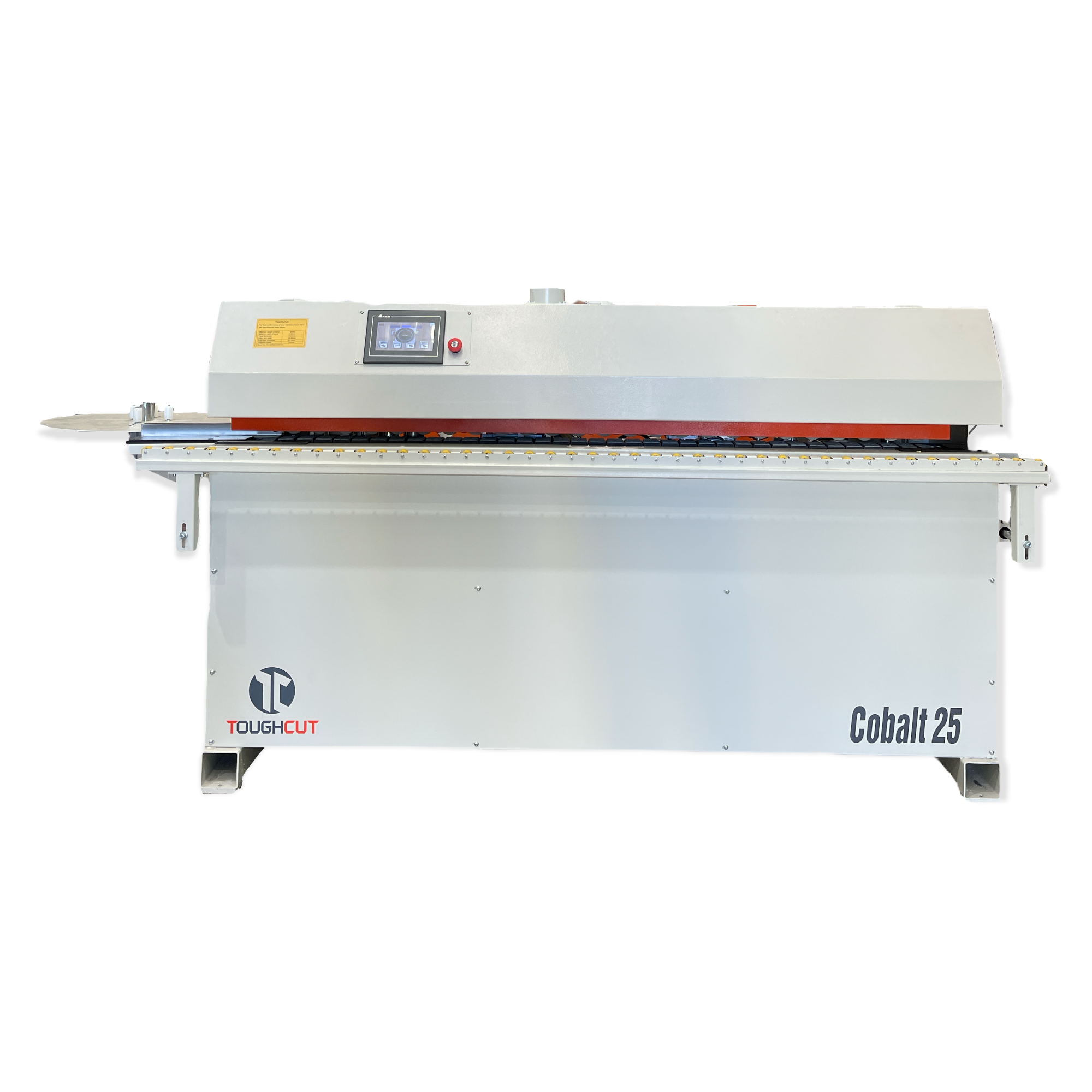

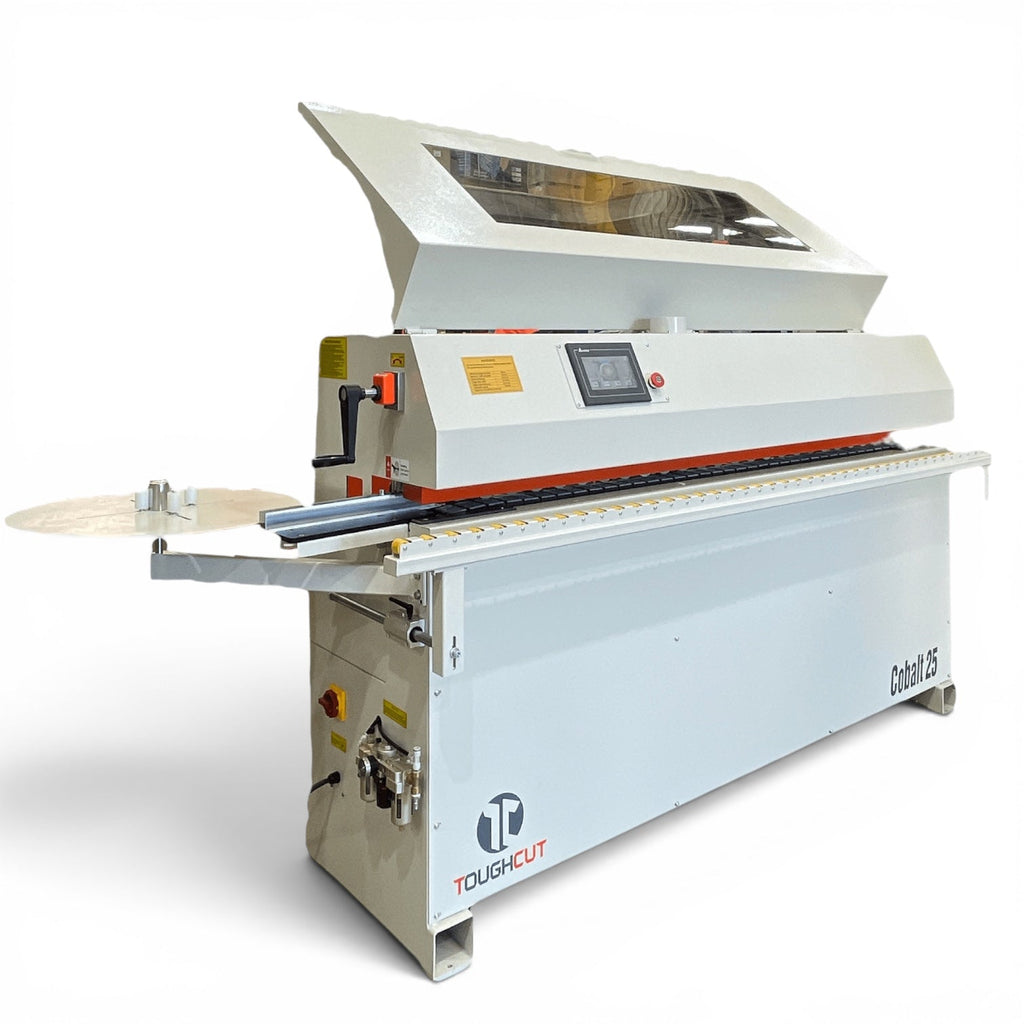

The Toughcut Cobalt 25 edge bander is an entry-level machine designed for small cabinet shops whilst having many of the features of its bigger brother Nickel 35. This machine is designed to have a small footprint whilst giving a quality finish to the product. The Cobalt series offers a feed speed of 7m/min. with double-end, saws along with flush trimming, glue scraping, and buffing this machine has all the right features. The Cobalt edge bander range offers consistent performance and superior reliability with easy-to-use and uncomplicated adjustments. It is the ideal starter for your new, boutique, start-up business.

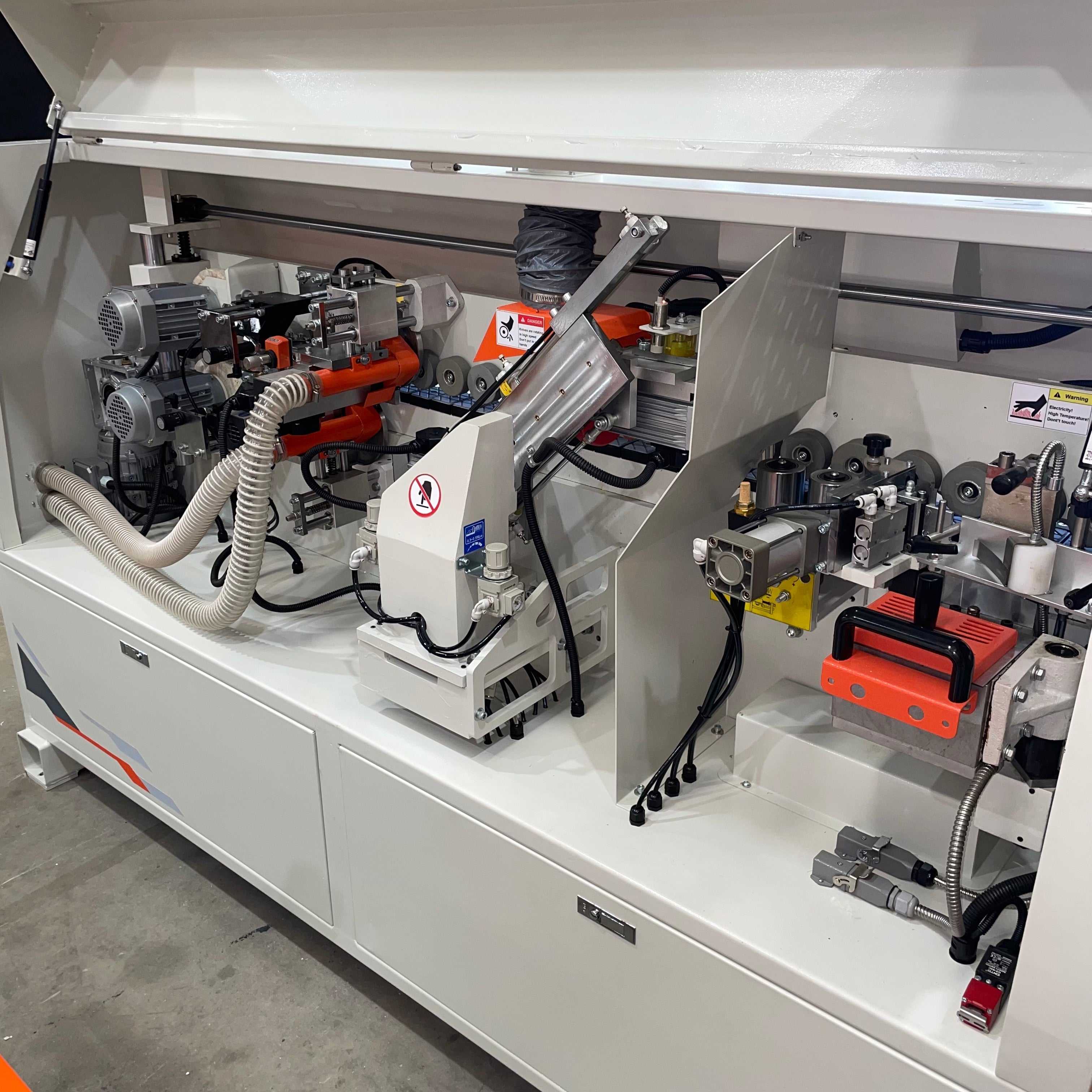

Features
- TOUCH SCREEN CONTROL – User-friendly touch screen control and interface ensures quick and easy execution of customized working programs

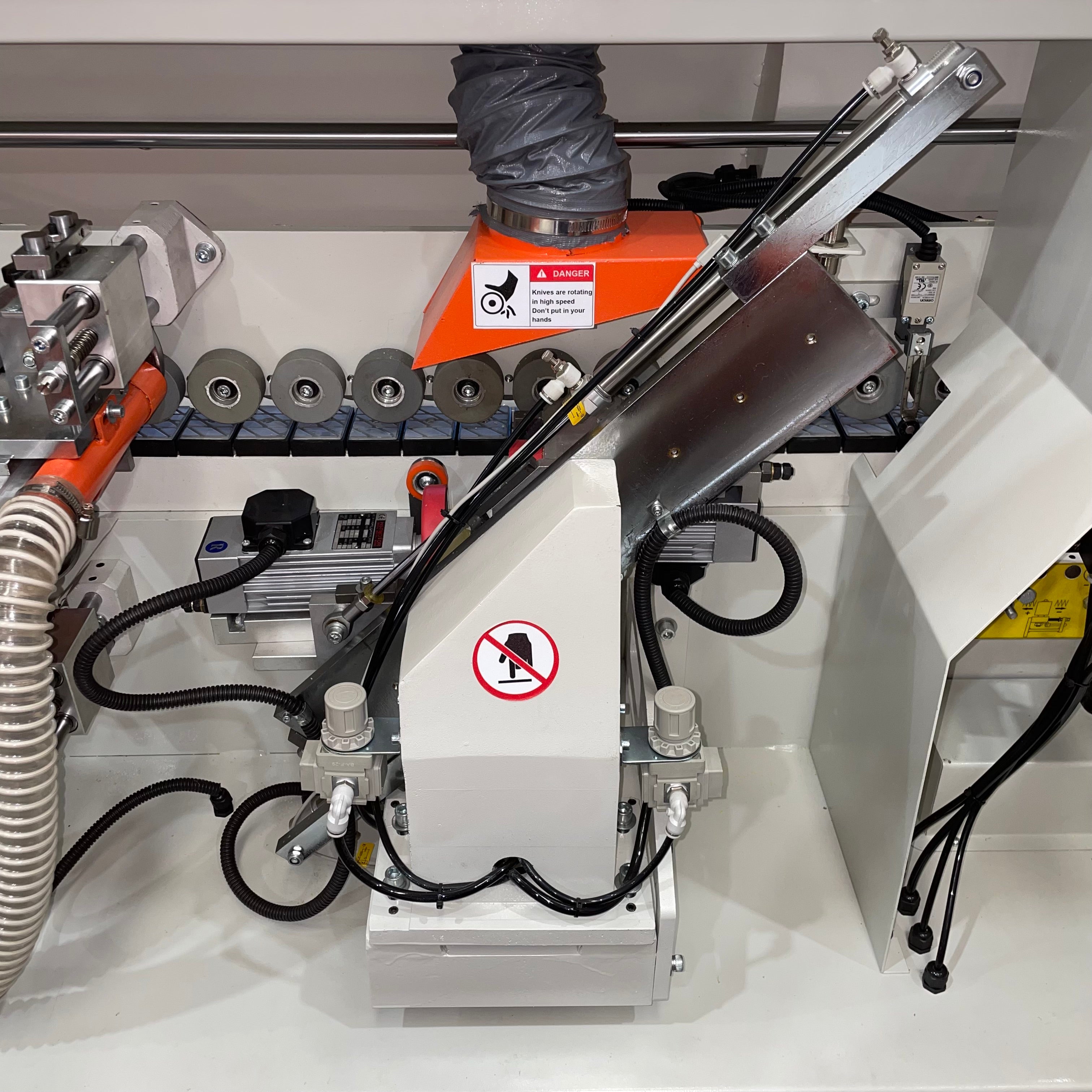

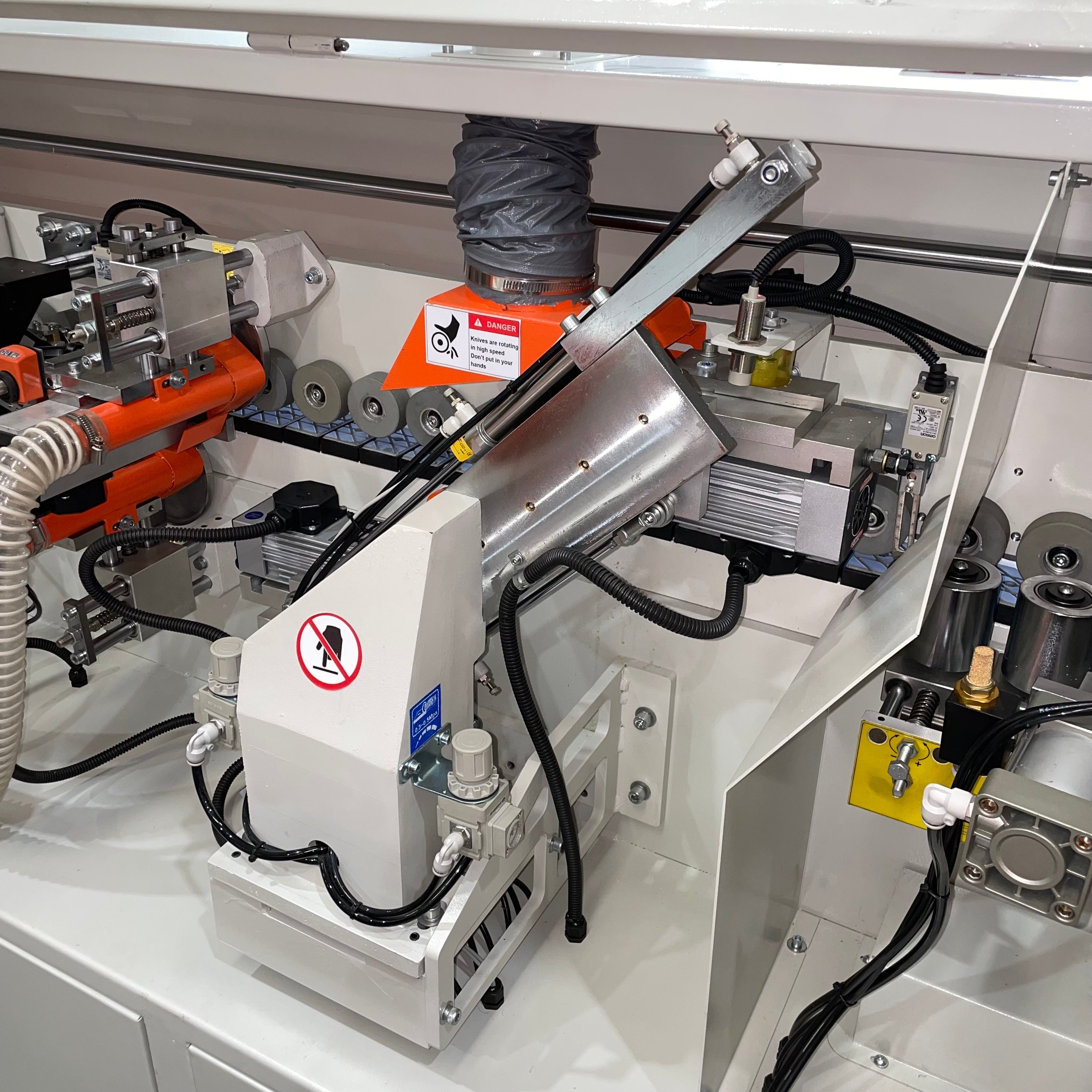

- END CUTTING UNIT – With two independent high-frequency motors to cut the front and rear edge. Each operating motor is equipped with a copying device for accurate positioning of blades in relation to the cutting point.

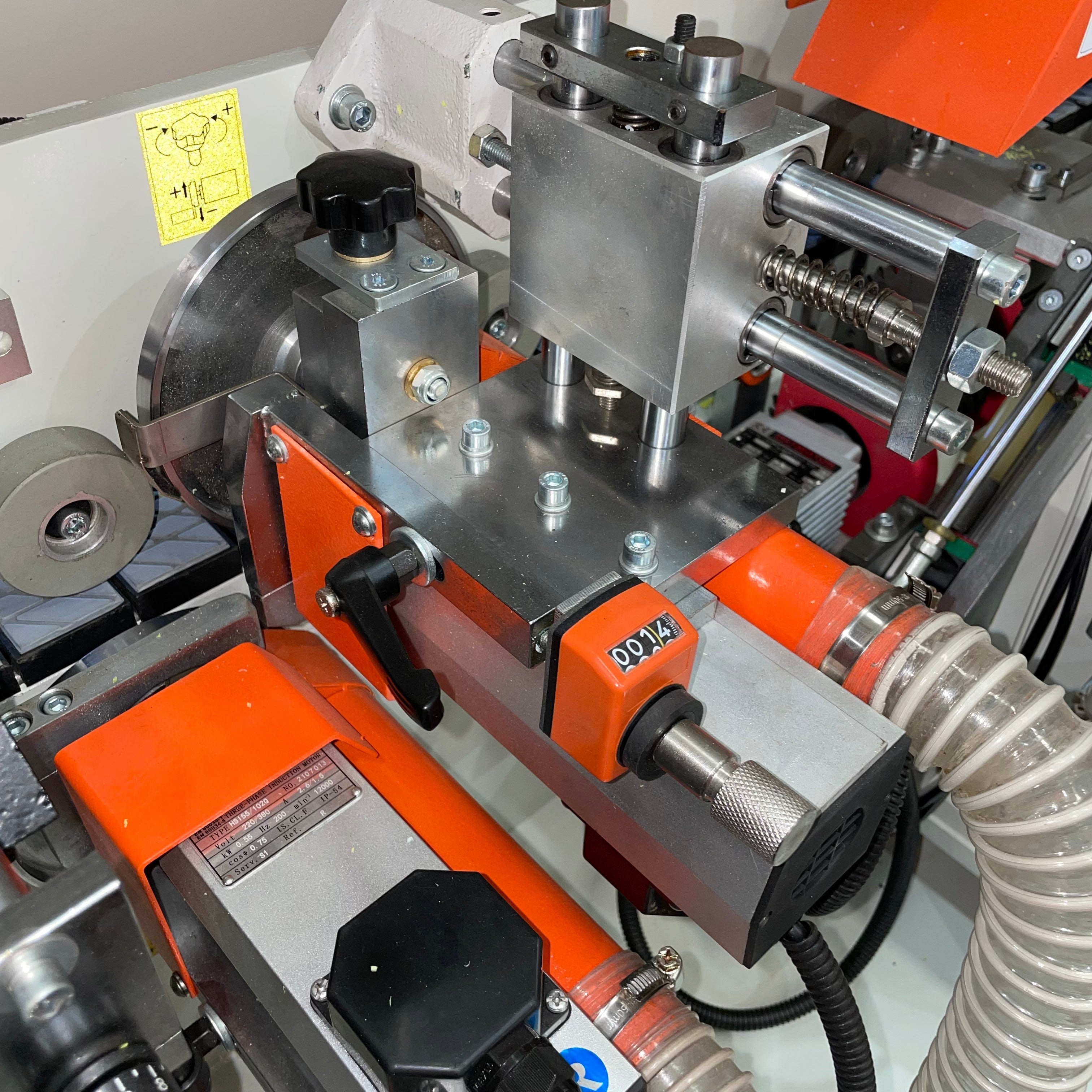

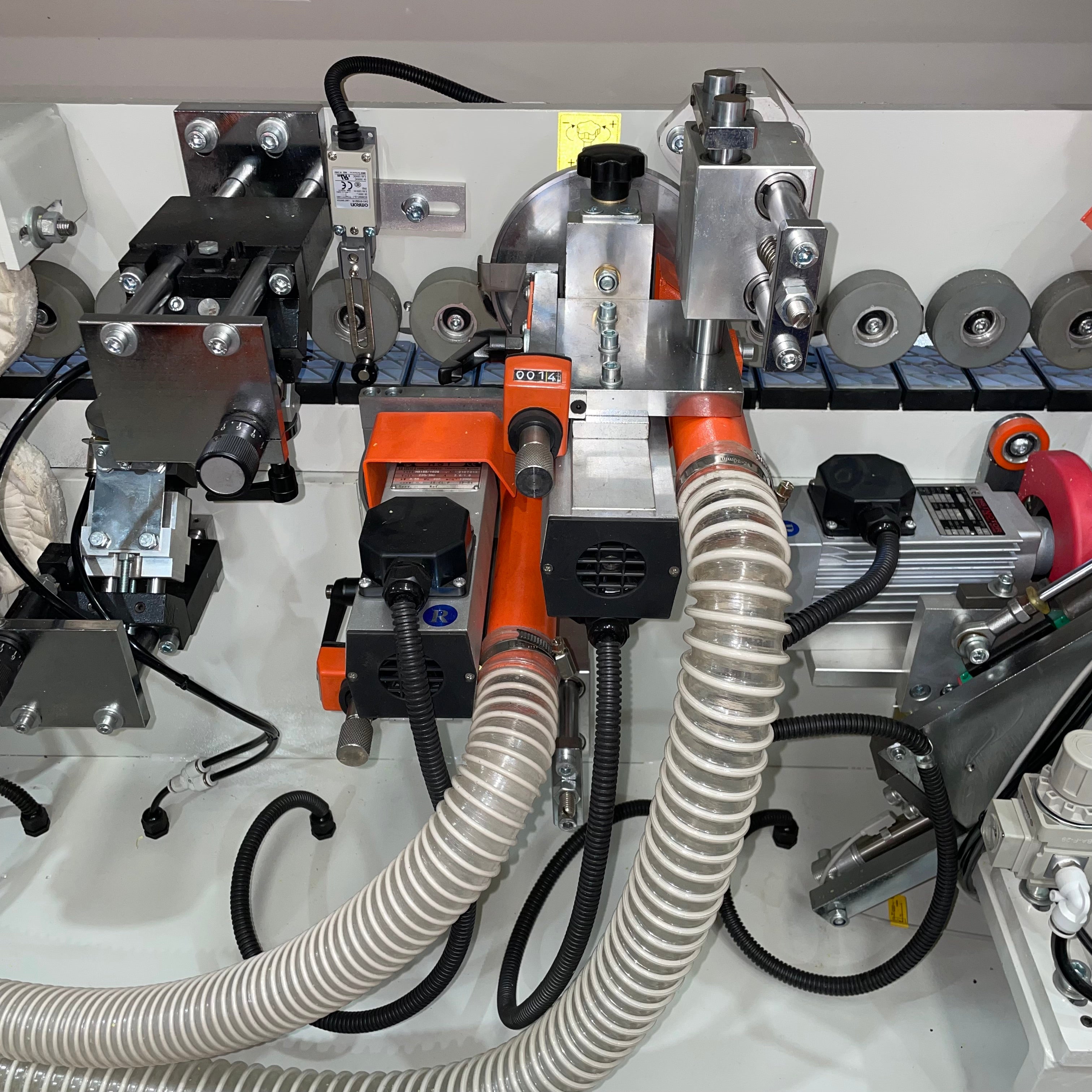

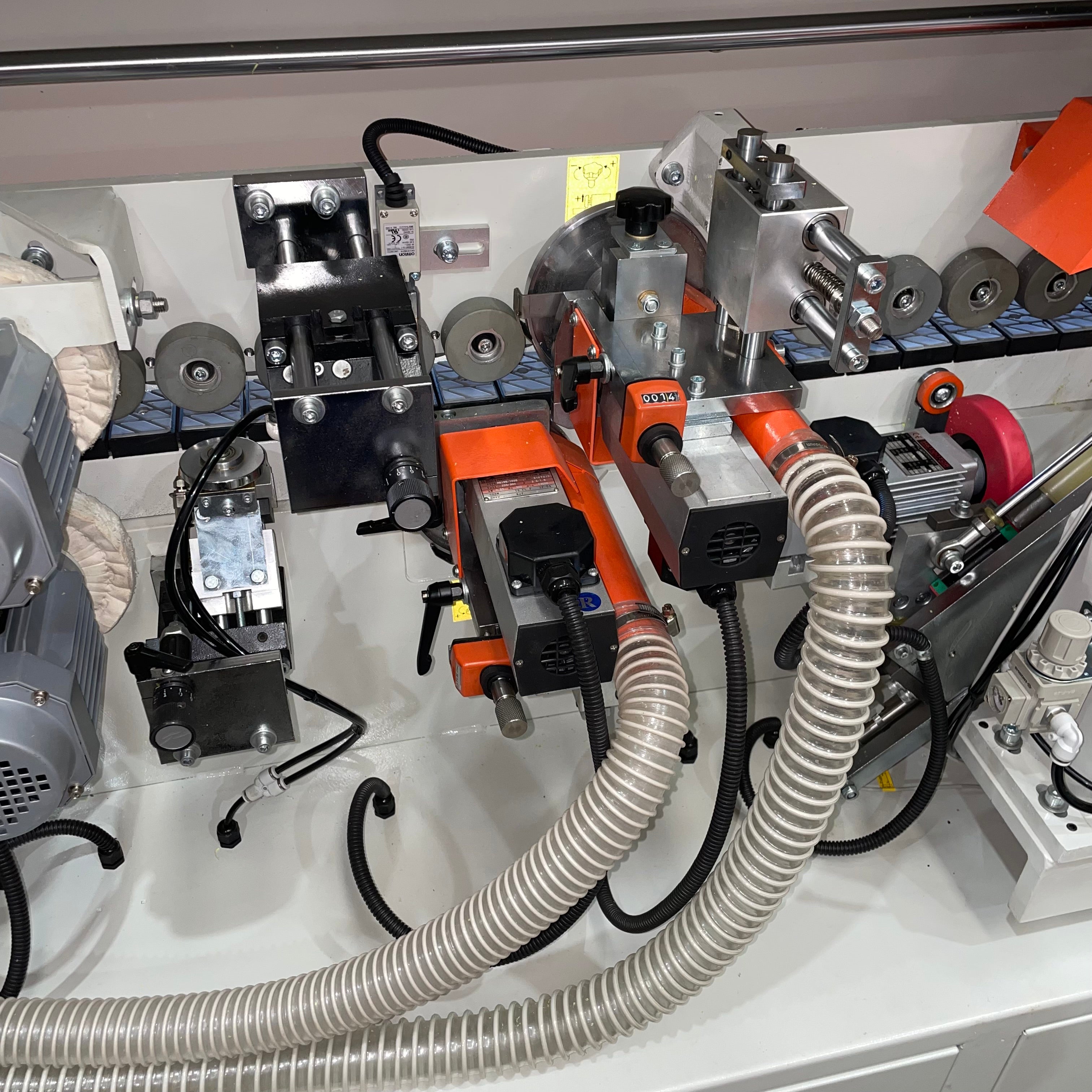

- FLUSH TRIMMING UNIT – Equipped with two independent high-frequency motors mounted on support firmly fixed to the frame to carry out the trimming of the bottom/top exceeding edge. Each motor is equipped with vertical rotation copying devices and a front copying pad, easy-to-read digital adjustment, and accurate positioning of tools with reference to the trimming.

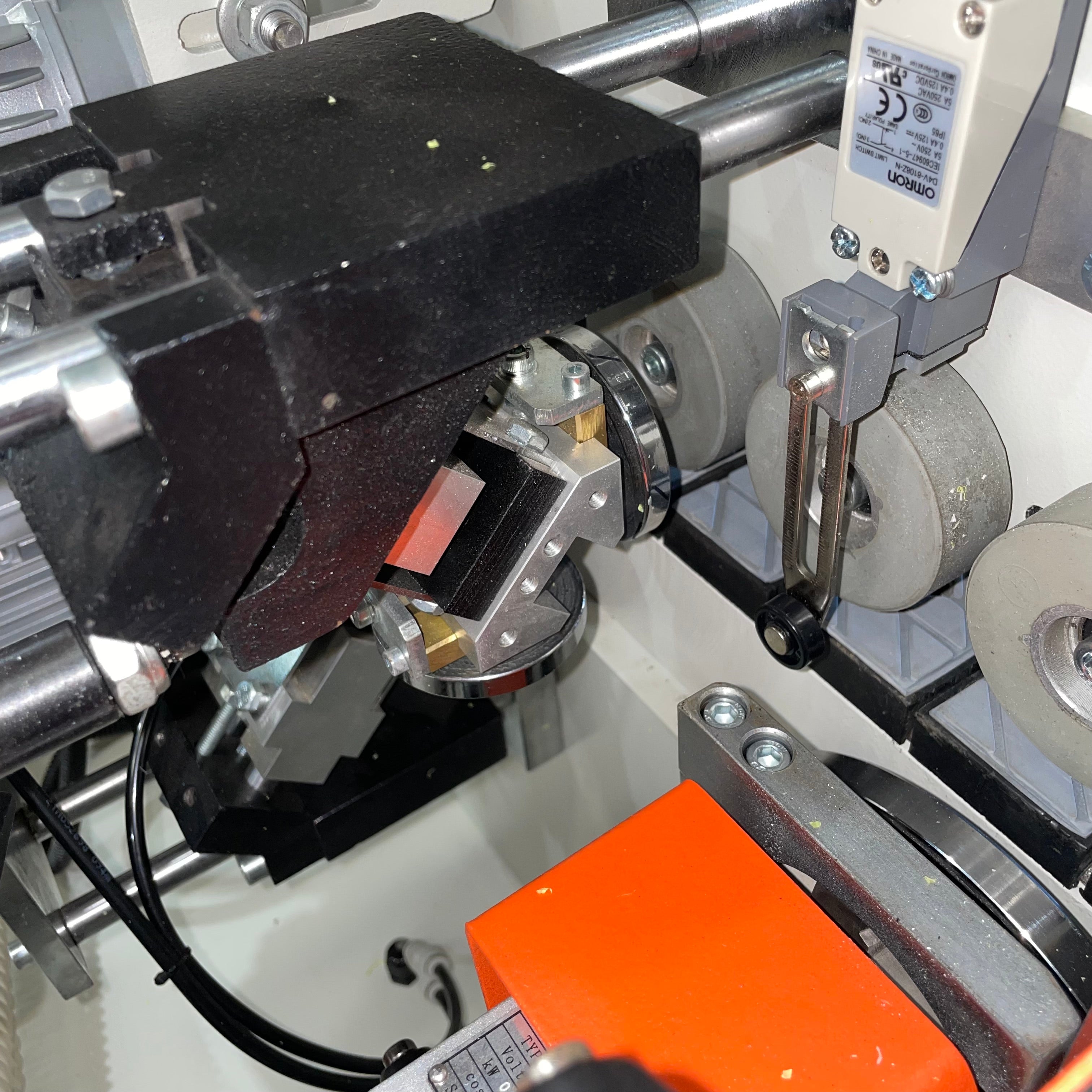

- RADIUS GLUE SCRAPER – Manually adjustable scraper knives ensure a perfect finish on the panel surface

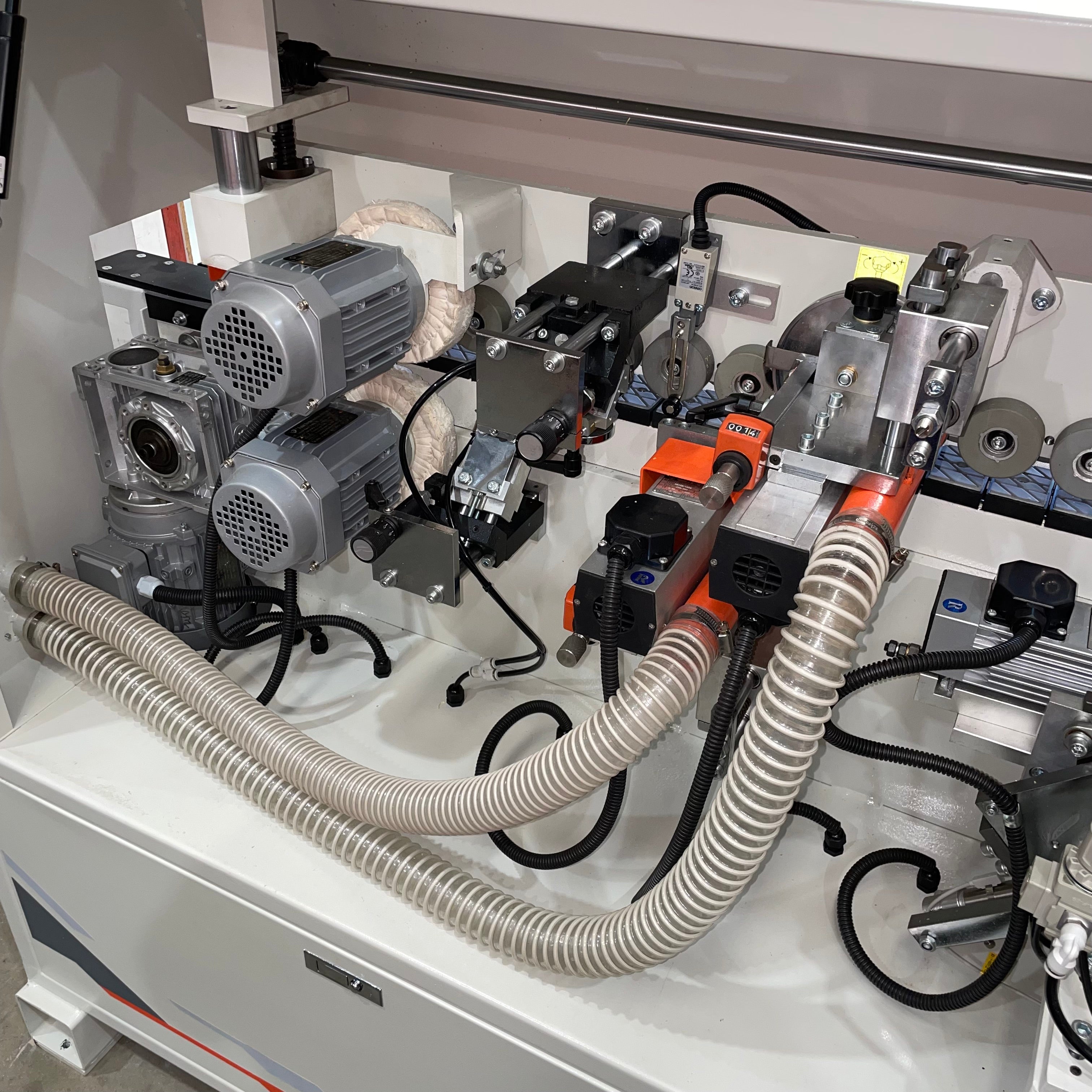

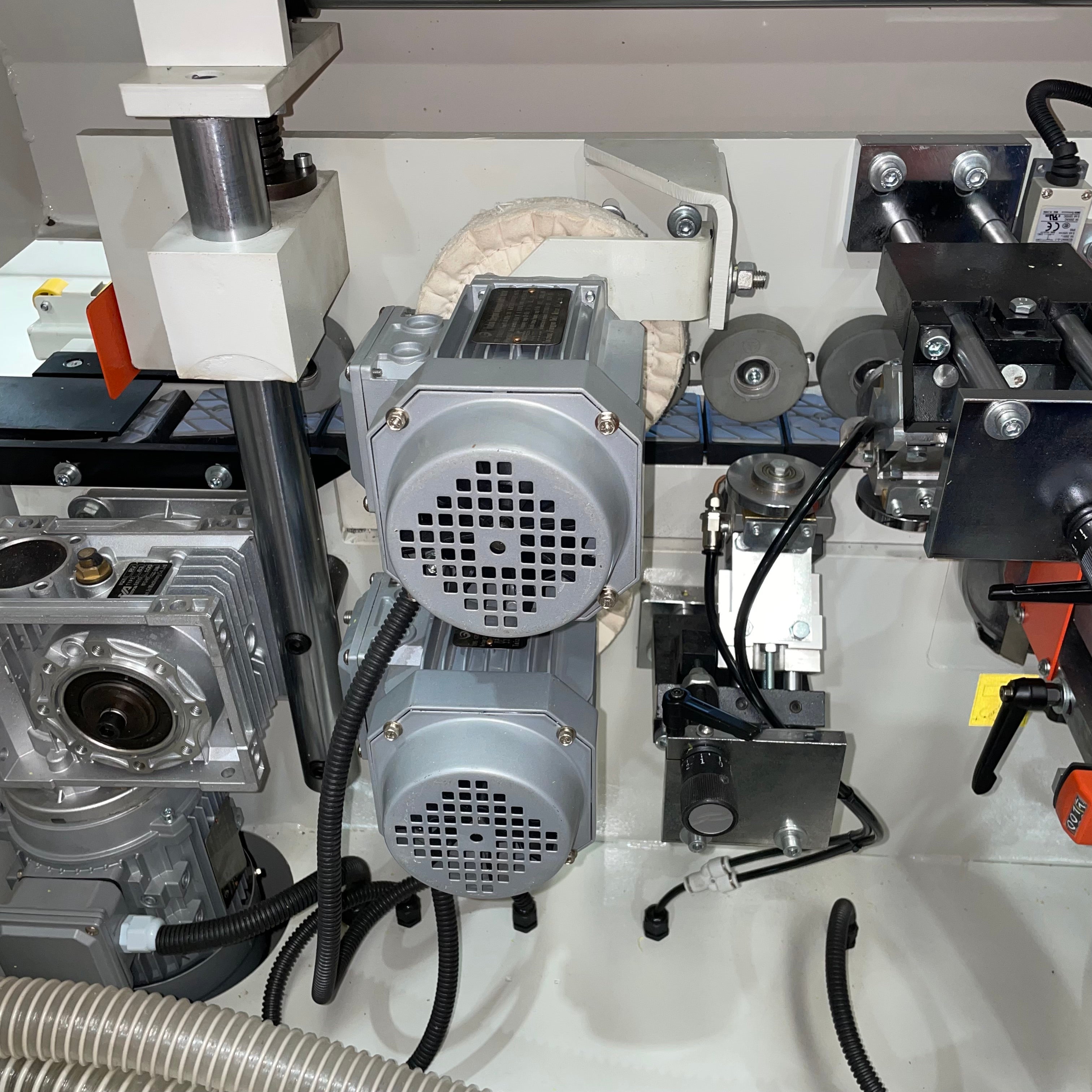

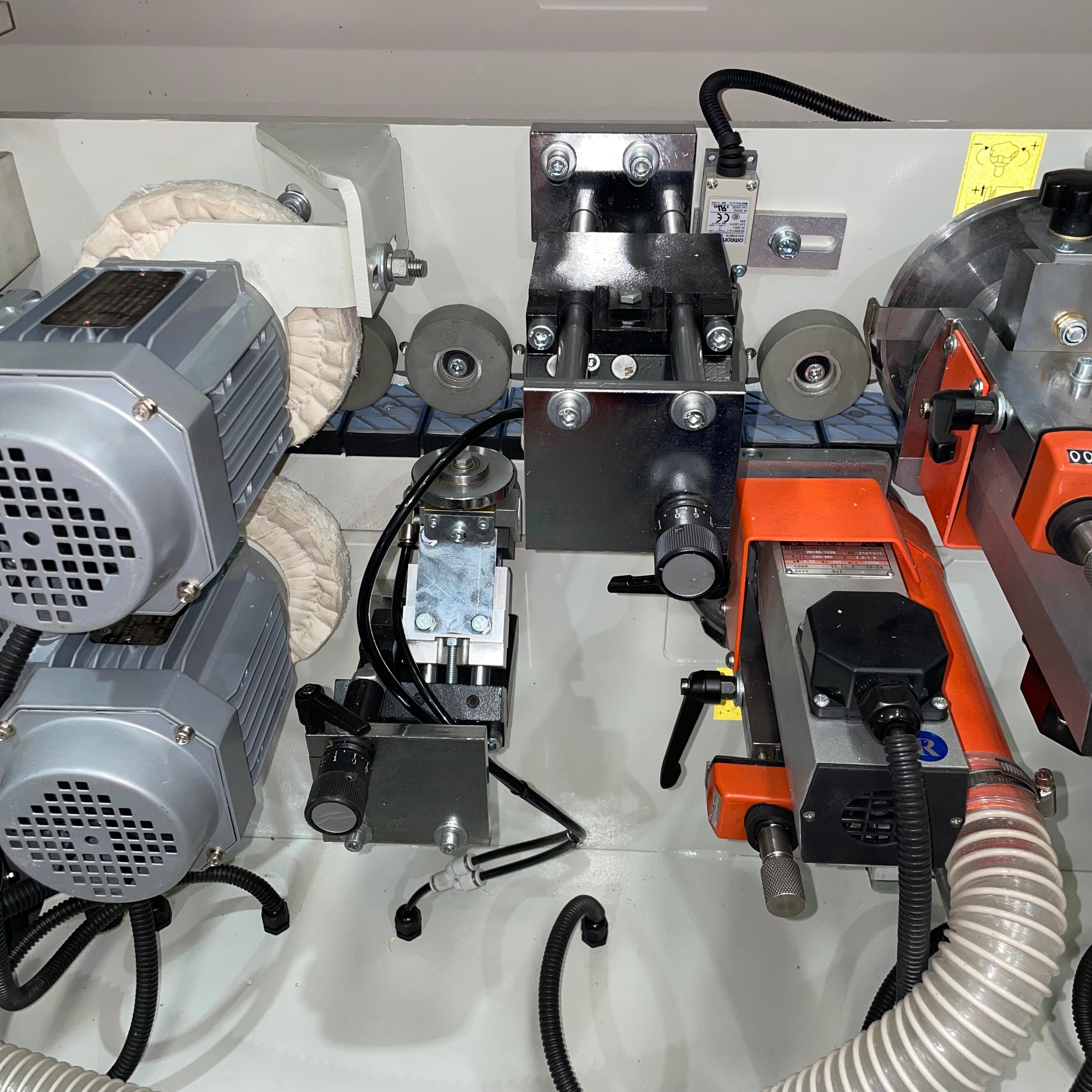

BUFFING UNIT – With Two independent motors for the buffing/polishing of the edge

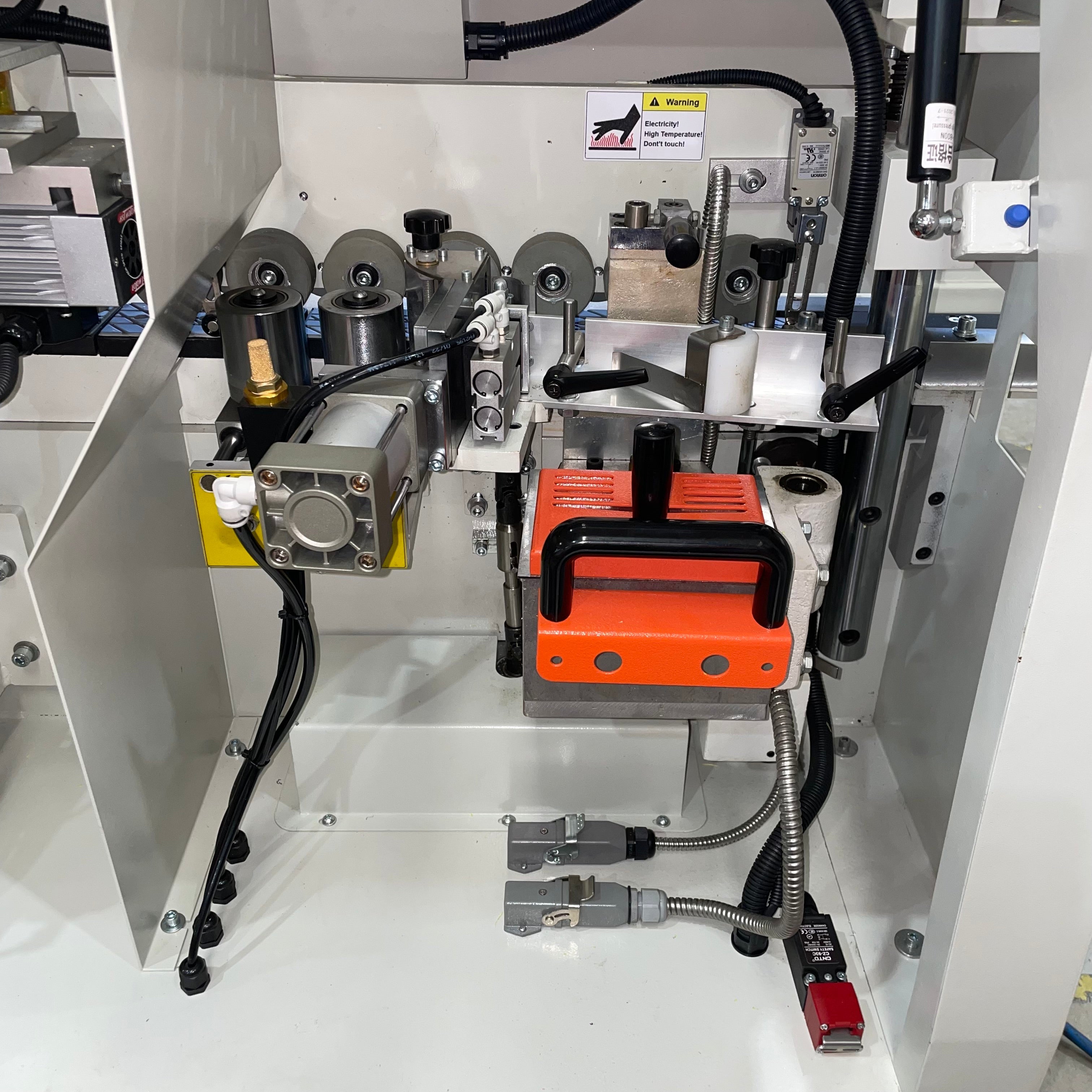

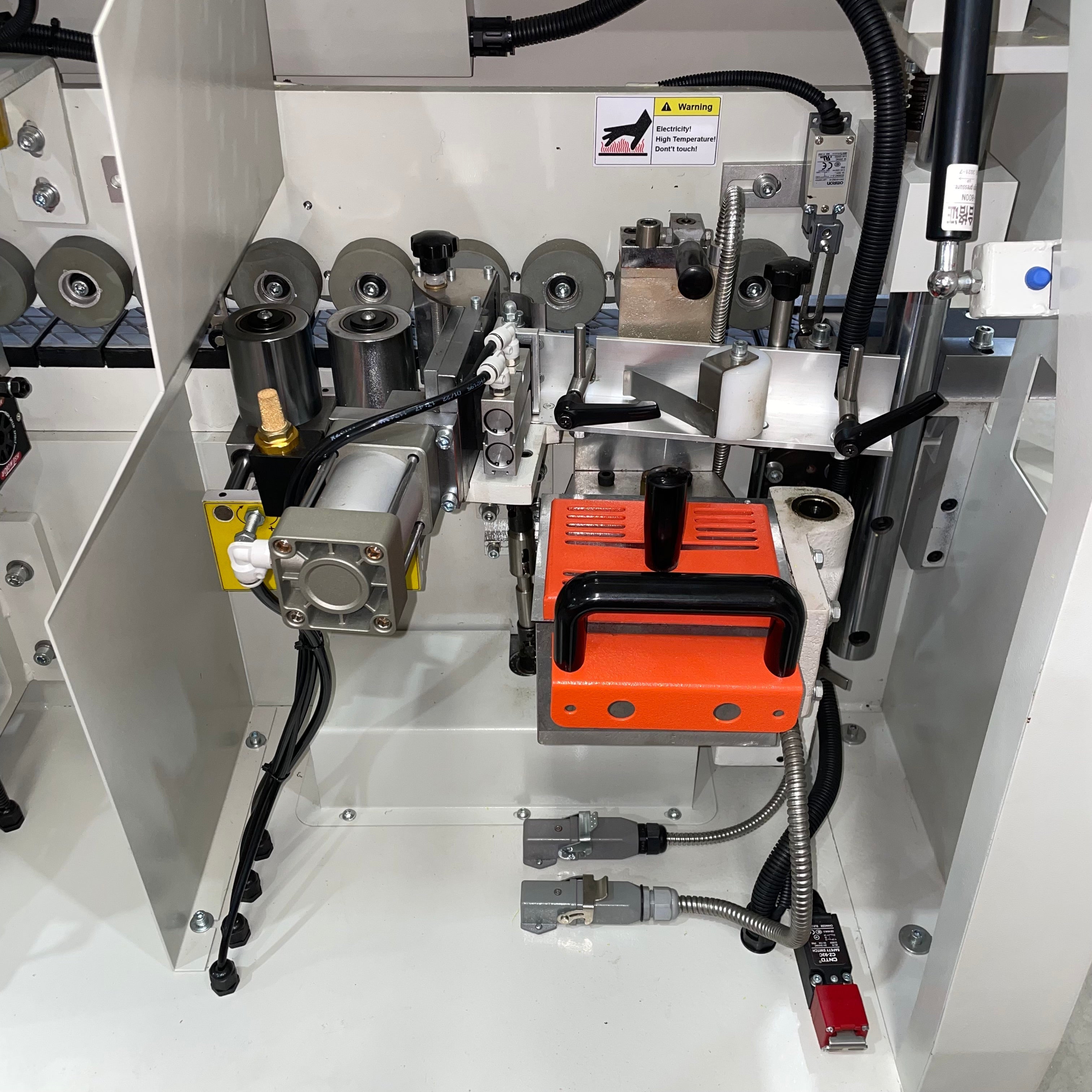

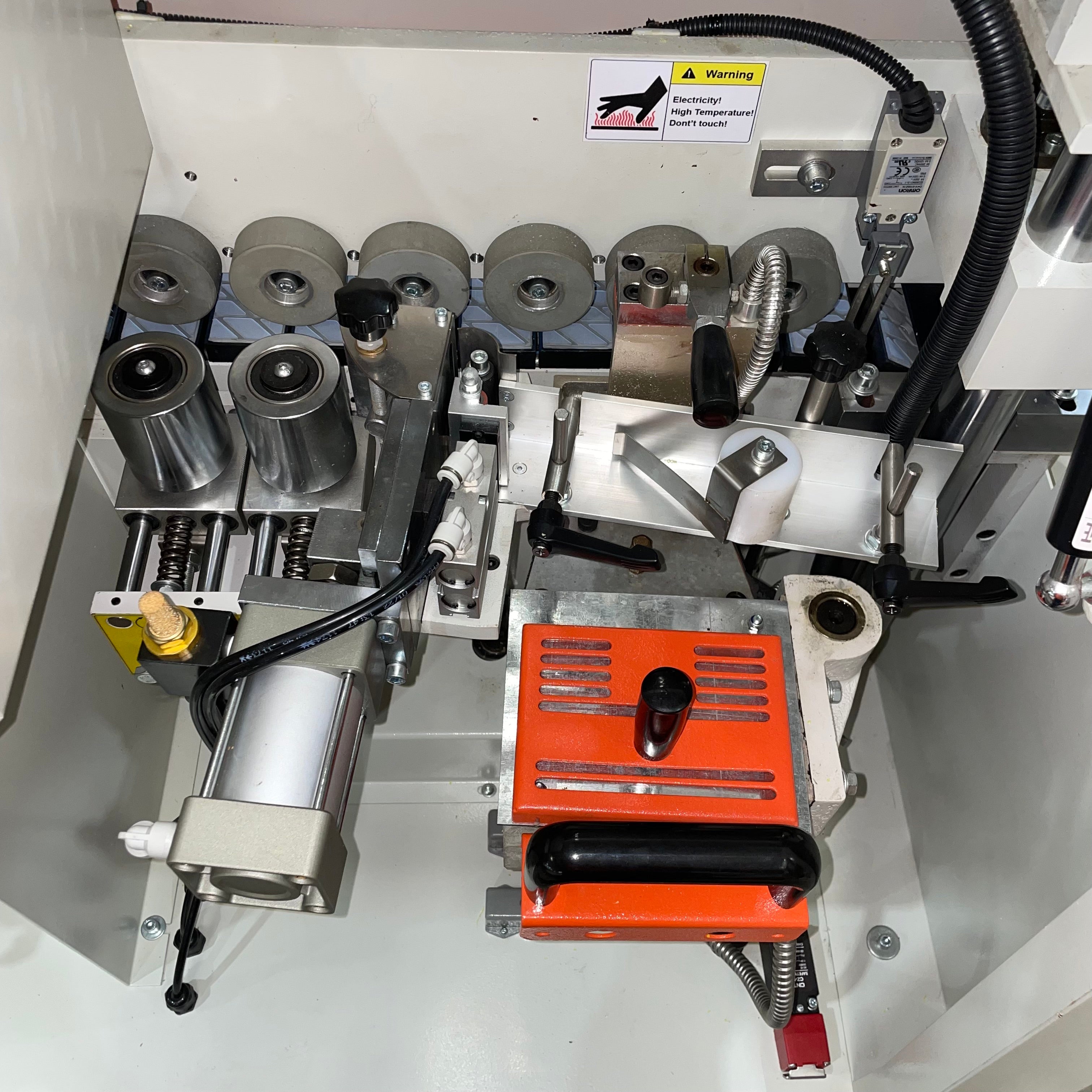

- GLUE APPLICATION UNIT – The quick detachable glue pot provides easy cleaning of glue residue, reducing the downtime in cleaning and maintenance. Automated glue control prevents glue from burning when the machine is on standby, thus preventing glue carbonization and ensuring energy efficiency.
Youtube video of the Edgebander can be viewed below:

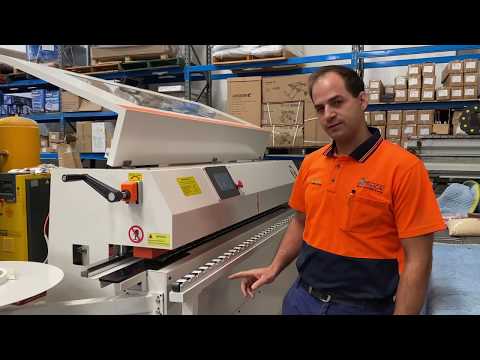

1. Toughcut Cobalt 25 Semi Automatic Hot Melt Edge Bander Commissioning here
Additional Information
Model
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Edging Thickness
0.4-3mm
Edging Width
12-43mm
Feed Speed
7m / Min.
Material (Stock) - Minimum Length
100 mm
Material (Stock) - Minimum Width
130 mm
Material (Stock) - Maximum Thickness
9-40mm
Temperature in Tank
180 Degree (Ideal Temperature)
Dimensions
Product Length
3000 mm
Product Weight (Net Weight)
590 kg
Country of Origin
Designed, Researched & Developed in
Australia
Manufactured in
China
Features
Digital Touch Screen Panel
Price Vs Quality
Quality
Commercial (Suitable for Professional / Trade Use)
Safety
Emergency Stop Switch
Emergency Stop Switch
An emergency stop switch is a safety mechanism used to shut off machinery in an emergency, when it cannot be shut down in the usual manner.
Workshop (Site) Info
Electrical Connection
Excludes Plug & Lead (must be connected / installed by Licensed Electrician)
Footprint
9800mm x 5242mm (including 3000mm for infeed and outfeed)
Packaging + Shipping
Shipping Length
2450 mm
Shipping Width
740 mm
Shipping Height
1510 mm
Shipping Weight (Gross)
760.0 kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Wooden Box / Crate with Skid
Packaging Box Qty
1
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
