Status
Available
Description
An ideal woodturning lathe for Mini to Midi production in a small workshop, ideal for starters.

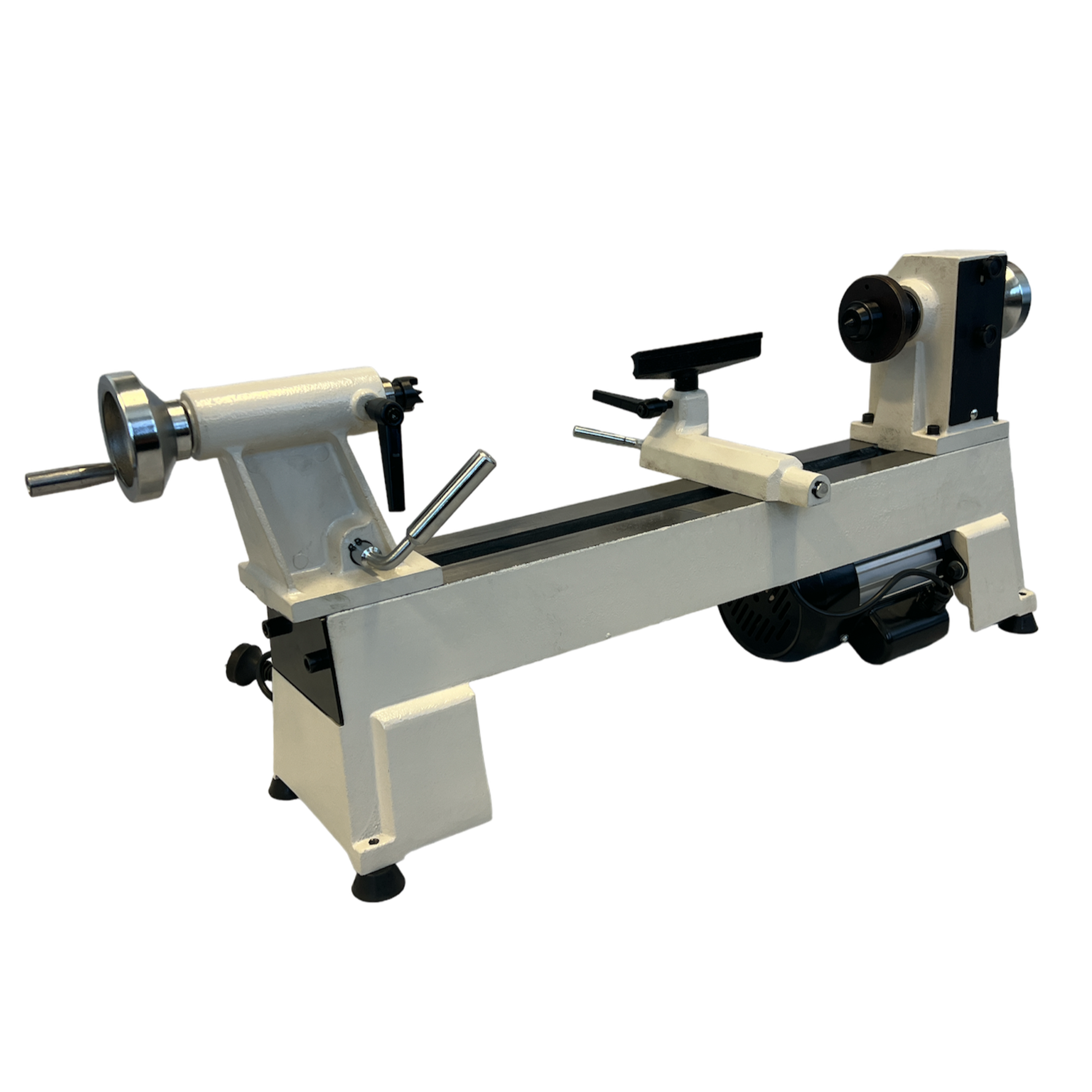

The OT-WL460-10 Mini Woodworking Lathe is a compact and powerful machine that is perfect for precision turning. It is built with a durable cast iron bed and features a powerful motor that delivers smooth and consistent performance. The lathe is also equipped with a quick-change tool post that allows for easy tool changes and improved efficiency. This lathe is perfect for small-scale woodworking projects, whether you are a beginner or an experienced woodworker.
Features
- Compact design for easy portability and storage
- Durable cast iron bed for stability and long-lasting performance
- Powerful motor for smooth and precise operation
- Quick-change tool post for easy tool changes and improved efficiency
- Cross slide and compound rest for precision woodworking
- Tailstock with adjustable quill for drilling and boring operations
- Variable speed control, brushed motor for a wide range of woodworking applications
- Ideal for turning small to medium-sized wood pieces
Applications
The WL460-10 Mini Woodworking Lathe is ideal for a wide range of woodworking applications, including:
- Turning bowls, pens, and other small to medium-sized wood pieces
- Creating spindle work such as table legs, bedposts, and other decorative wood pieces
- Sanding, drilling, and boring wood pieces
Additional Information
Model
Type
Woodturning Lathe
SKU
8002090
Series
Benchtop
Part Number
OT-WL460-10
Barcode
735745530580
Brand
Oltre
Size
254mm (10") Swing x 460mm (18") Between Centres
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Motor Power (Output)
Motor Power (Output)
Output power means the maximum power that the motor puts out under ideal conditions.
370W (0.5HP) (0.37kW)
Distance Between Centres
460mm (18")
Speed Range
500-3150RPM
Swing Over Bed
254mm (10")
Spindle Taper - Headstock
MT2
Spindle Thread
M30 X 3.5
Dimensions
Product Weight (Net Weight)
34kg
Country of Origin
Designed, Researched & Developed in
Australia
Manufactured in
China
Features
Variable Speed
Variable Speed
Variable speed motors generally start a motor at zero voltage and ramp it up slowly. This minimises the power needed to set the mechanism into operation, which in turn reduces the wear and tear on the motor. Variable speed also enables equipment to have precise speed control.
Induction Motor
Induction Motor
This motor operates using electromagnetic induction, which allows it to generate consistent torque and speed without the need for brushes or commutators, resulting in lower maintenance and increased durability. With its robust design, the induction motor delivers reliable power, ensuring smooth operation even under heavy loads.
Standard Inclusions
Quick Change Tool Post150mm (6") Tool Rest75mm (3") Face PlateLive CentreSpur CentreToolsOwner's Manual
Price Vs Quality
Quality
Economy (Suitable for DIY / Hobbyist Use)
Workshop (Site) Info
Electrical Connection

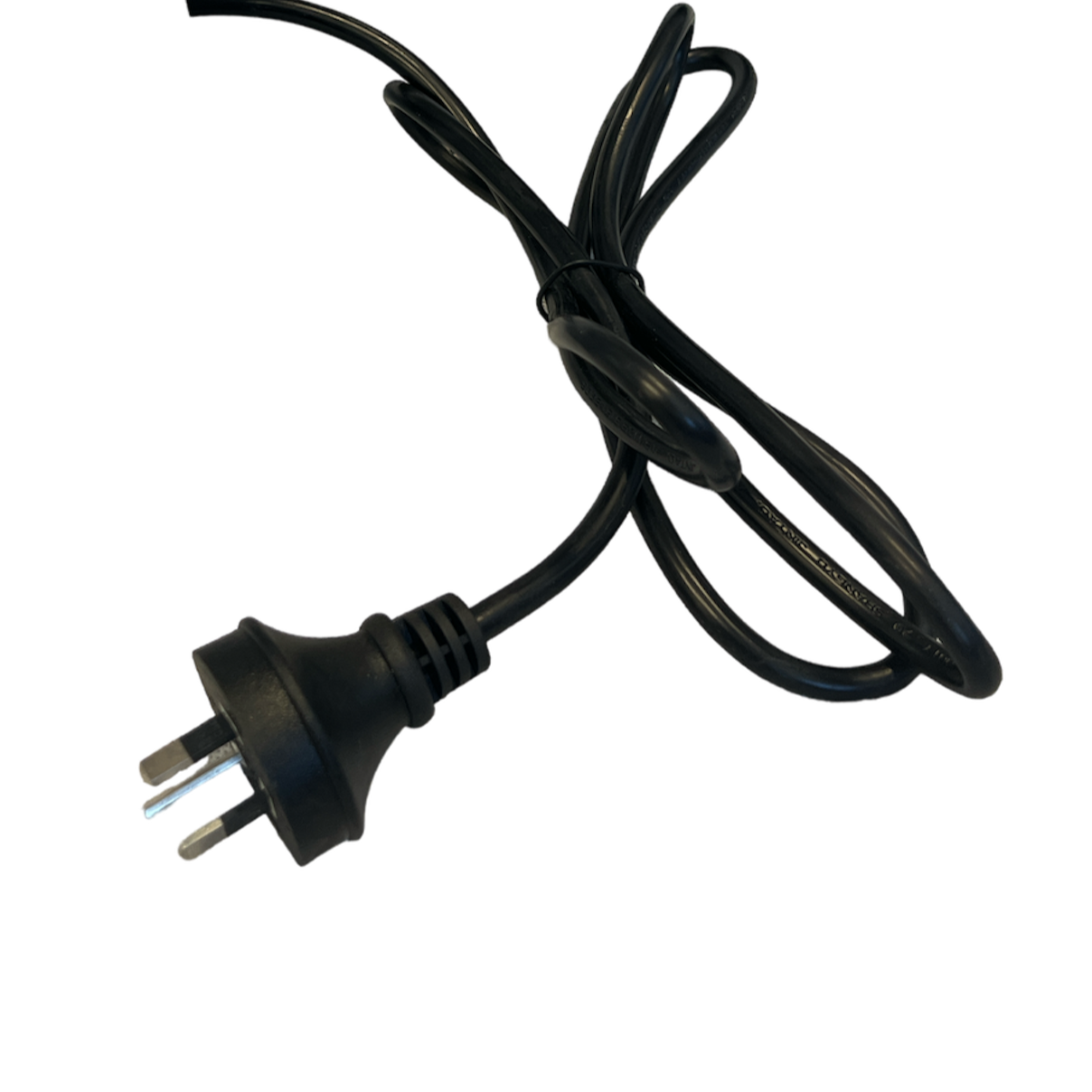

10Amp Plug & Lead
Other Requirements
Benchtop / Machine Stand
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
2 Years (Home User) or 1 Year (Commercial User)
Use
Not intended or designed for commercial use.
Packaging + Shipping
Shipping Length
880mm
Shipping Width
460mm
Shipping Height
330mm
Shipping Weight (Gross)
37kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Cardboard Box
Requires a Skid to Ship
Requires a Skid to Ship
Items over 32kg must be packed on a pallet or crate so they can easily be moved by forklift.
Shipping Notes
Shipping Notes
It is highly recommended that goods over 25Kg are handled with a forklift / tail lift. For items over 32kgs, you must ensure there is assistance for loading and unloading unless you have selected the Tail lift options, otherwise there will be additional fees.This is for safe handling for the product and the handler.Please ADD a Tail Lift to your order - should you wish to include a Tail Lift.Goods over 50Kg must be handled by a Forklift / Tail Lift.
This product is classified as 'Heavy / Oversized' and generally does not qualify for FREE SHIPPING.
Product Specification Disclaimer
Product Specification Disclaimer
Product Specification Disclaimer
The specifications provided on our product pages are obtained from various manufacturers and third-party sources. While we strive to ensure that the information is accurate, we do not warrant or guarantee its accuracy, completeness, or timeliness. Therefore, we cannot be held liable for any errors, omissions, or discrepancies in the specifications provided.Please note that product specifications are subject to change by the manufacturers without notice. It is recommended to verify the specifications with the manufacturer or seller before making a purchase decision.In the event of any discrepancy between the product specifications on our website and the actual product, the latter shall prevail.We reserve the right to update, modify, or remove product specifications at any time without prior notice.
