ToughCutSKU: 8601547
Size: 200mm
Price:
$3,350.00
Stock:
In stock (2 units), ready to be shipped

Stores

Buy from Beyond Tools Search Another Dealer

Status

Available

Description

The SD-20D Brush Sander is a high-performance industrial sanding machine designed for final sanding and surface finishing of solid wood. Equipped with an abrasive paper brush, it efficiently removes minor imperfections, evens out grain patterns, and prepares wood surfaces for finishes such as varnish, stain, or paint.

Ideal for professional woodworking and manufacturing environments, the SD-20D ensures consistent, uniform resultswhile extending abrasive life through intelligent oscillation control. Its robust motor system and adjustable speed settings make it suitable for a wide range of sanding requirements, from delicate finishing to heavier surface refinement.

Key Features & Benefits

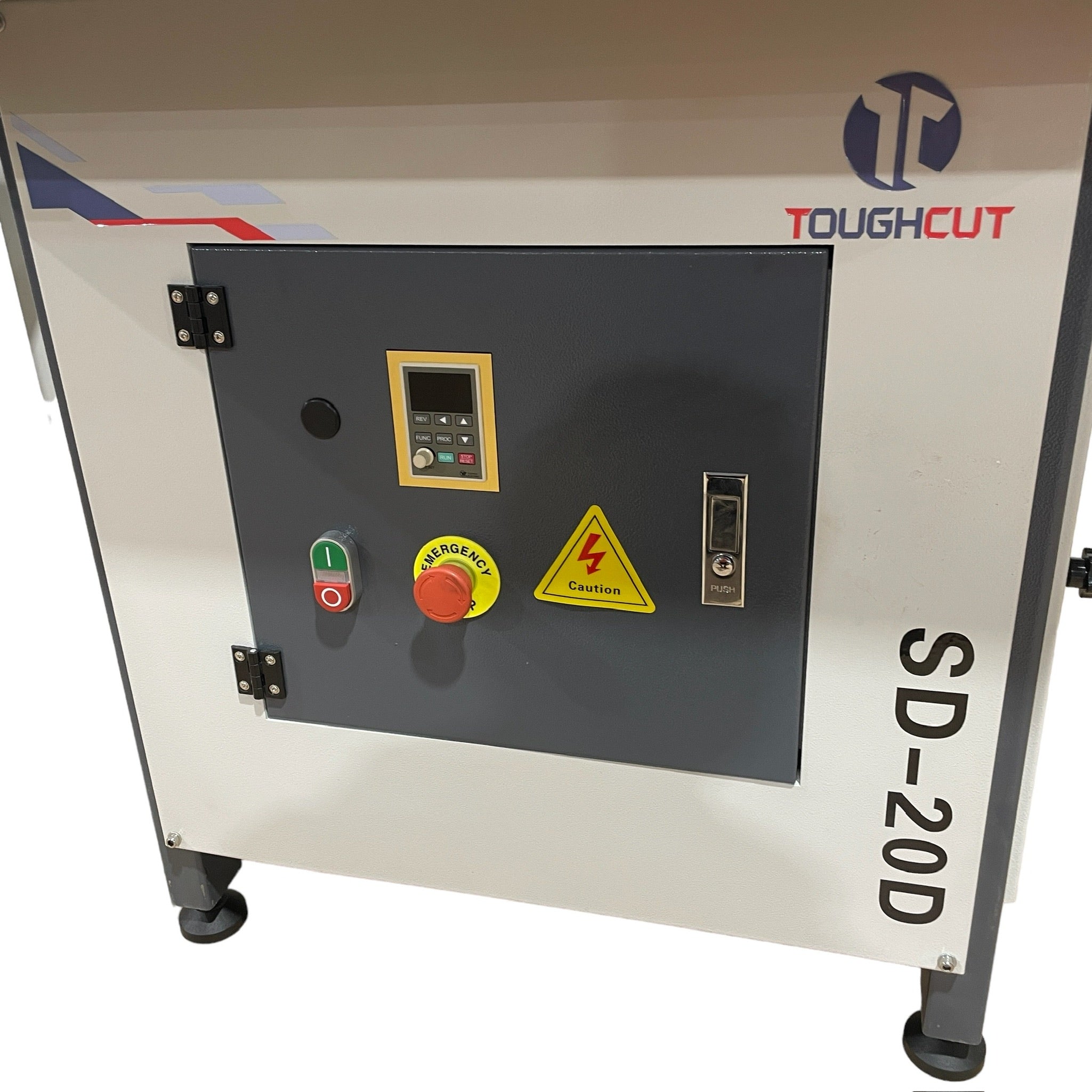

Variable Speed Control

Adjust the brush rotation speed though a VFD to match different wood types and finishing requirements, ensuring optimal surface quality and reduced material waste.

Oscillation Control

An independent oscillation switch allows the sanding head to move up and down while rotating. This reduces uneven wear on the sanding brush, extends abrasive life, and improves surface consistency.

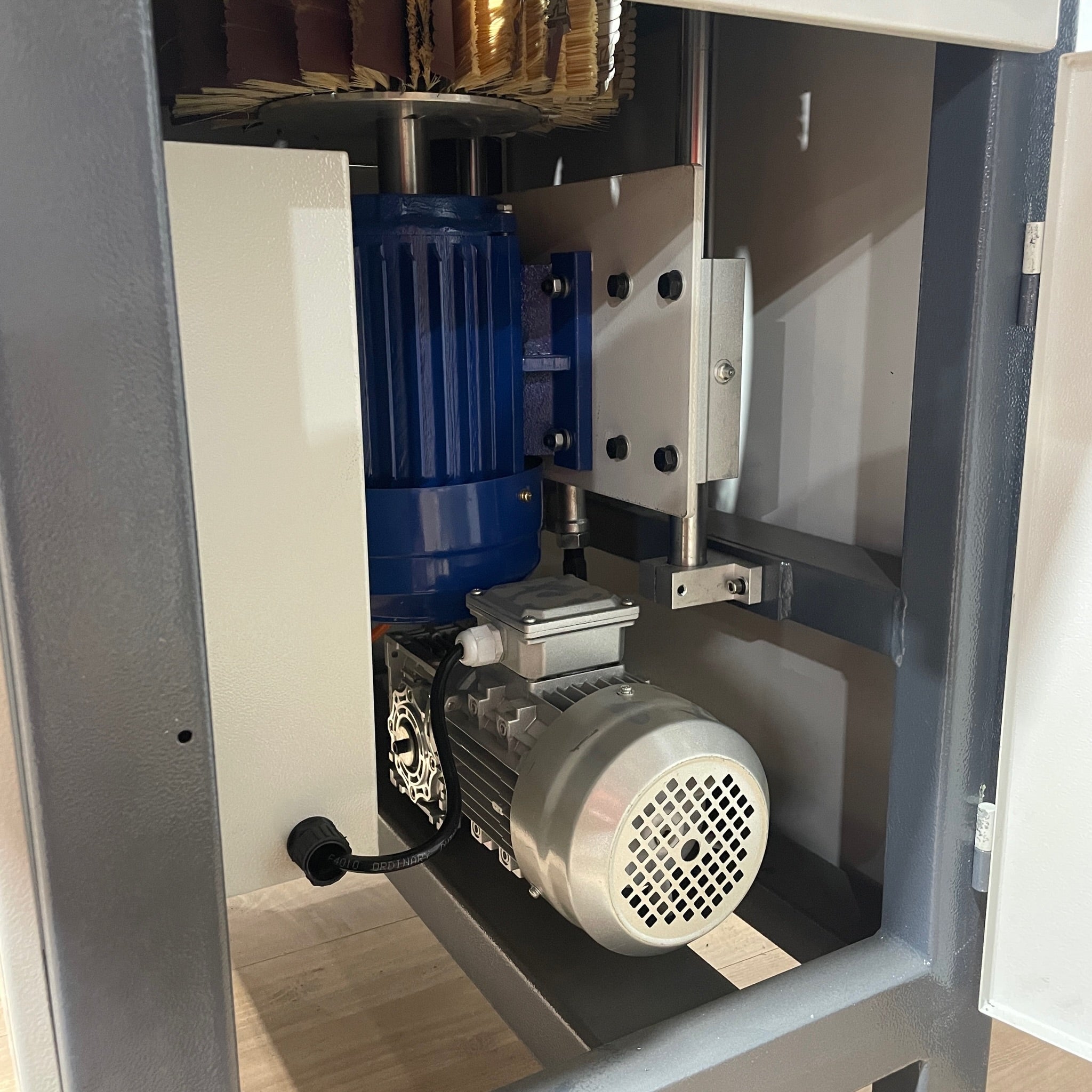

Industrial-Grade Motor System

Powered by a 415V 750kW motor for the main sanding head and a 415V 370kW motor for oscillation, the SD-20D delivers reliable performance for continuous industrial use.

Technical Specifications

  • Model: SD-20D

  • Application: Final sanding & finishing of solid wood

  • Sanding Type: Abrasive paper brush

  • Main Motor: 415V, 750kW

  • Oscillation Motor: 370kW

  • Speed Control: Variable

  • Oscillation: On/Off independent control

  • Safety: Emergency stop Latching button
  • Sanding Head: 300mm diameter x 200mm high

Additional Information

Model
Type
Brush Sander
SKU
8601547
Part Number
SD-20D
Brand
ToughCut
Technical - Main
Motor Power (Output)
Motor Power (Output)
Output power means the maximum power that the motor puts out under ideal conditions.
1HP (0.74kW)
Dimensions
Product Length
740mm
Product Width
860mm
Product Height
1050mm
Product Weight (Net Weight)
120kg
Country of Origin
Manufactured in
China
Features
Digital Speed Display
Digital Speed Display
A no volt release (NVR) switch is valuable safety feature for power tools and machinery. If the power is cut, the unit will default to off, so the machinery will not automatically start again when the power is restored.
Warranty
Warranty (Australia)
Warranty (Australia)
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
2 Years (Home User) or 1 Year (Commercial User)
Warranty (Important for International Customers)
Warranty (Important for International Customers)
Important Warranty Notice for International CustomersPlease note that purchases made from outside Australia are undertaken at the customer’s own risk. Our product warranties are generally valid within Australia only. While we are happy to assist with warranty-related issues, the following conditions apply for international orders:Any warranty claim requires the item to be returned to us in Australia at the customer’s expense.If the claim is accepted, Beyond Tools will carry out the repair or replacement under the terms of the Australian warranty.Return shipping of the repaired or replacement item must also be paid by the customer.We do not cover international freight, import duties, or customs clearance costs.We strongly recommend that international customers consider this before purchasing. If you have any questions, please feel free to contact us before placing your order.
See Notes
Packaging + Shipping
Shipping Length
830mm
Shipping Width
940mm
Shipping Height
1170mm
Shipping Weight (Gross)
100.48kg
Packaging Box Qty
1
Shipping Notes
Shipping Notes
It is highly recommended that goods over 25Kg are handled with a forklift / tail lift. For items over 32kgs, you must ensure there is assistance for loading and unloading unless you have selected the Tail lift options, otherwise there will be additional fees.This is for safe handling for the product and the handler.Please ADD a Tail Lift to your order - should you wish to include a Tail Lift.Goods over 50Kg must be handled by a Forklift / Tail Lift.
This product is classified as 'Heavy / Oversized' and generally does not qualify for FREE SHIPPING.
Product Specification Disclaimer
Product Specification Disclaimer
Product Specification Disclaimer
The specifications provided on our product pages are obtained from various manufacturers and third-party sources. While we strive to ensure that the information is accurate, we do not warrant or guarantee its accuracy, completeness, or timeliness. Therefore, we cannot be held liable for any errors, omissions, or discrepancies in the specifications provided.Please note that product specifications are subject to change by the manufacturers without notice. It is recommended to verify the specifications with the manufacturer or seller before making a purchase decision.In the event of any discrepancy between the product specifications on our website and the actual product, the latter shall prevail.We reserve the right to update, modify, or remove product specifications at any time without prior notice.
See Notes
Comparable Products Disclaimer
Comparable Products Disclaimer
Our product comparisons are based on our first-hand experiences and knowledge of models we've sold in the past. We aim to provide objective and accurate information to assist you in making informed decisions. We do not receive compensation for featuring products in our comparisons. For more details on our disclosure practices, please click here to view the full disclosure statement.
See Notes
Electrical Specifications (Important for International Customers)
Electrical Specifications (Important for International Customers)
Electrical Specifications (Important for International Customers)
Electrical Specifications (Important for International Customers)All power tools and machines sold by Beyond Tools are designed to operate on 230V / 50Hz electrical systems as standard in Australia.These products are supplied with Type I Australian power plugs.If you are purchasing from outside Australia, particularly from regions using 110V–120V systems (e.g., USA, Canada), you will require a step-up transformer or region-appropriate model.Please consult a qualified electrician before using voltage converters to ensure safe and correct operation.Disclaimer: Beyond Tools is not responsible for any damage, malfunction, or safety risks resulting from the use of products outside their intended voltage range or with incompatible electrical systems.
