Boring Jig Kit suit Shelf Pins DF31 by Oltre

OltreSKU: 8600663

Price:
Sale price$35.00
Stock:
In stock (32 units), ready to be shipped

Status

Available

Description

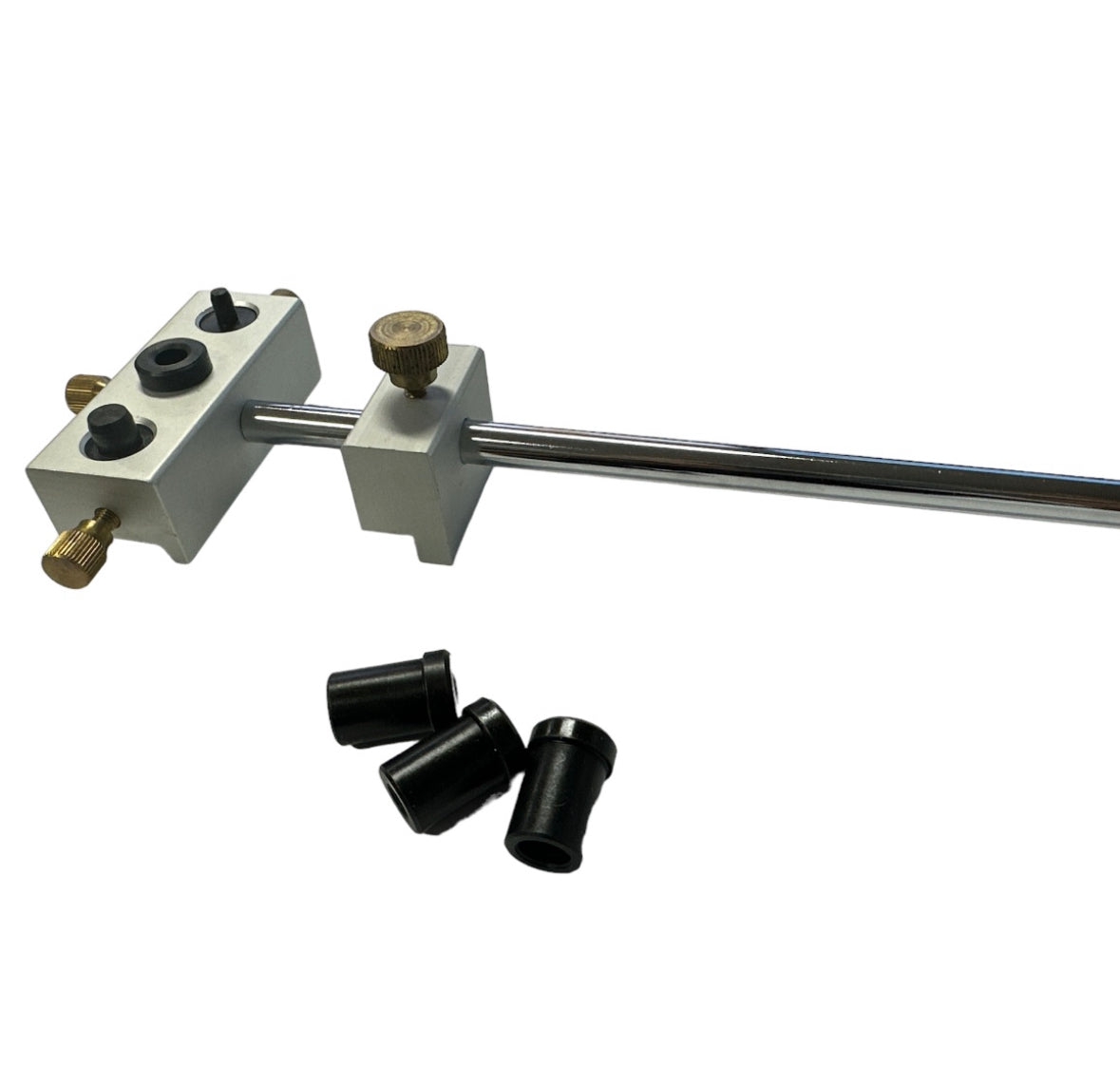

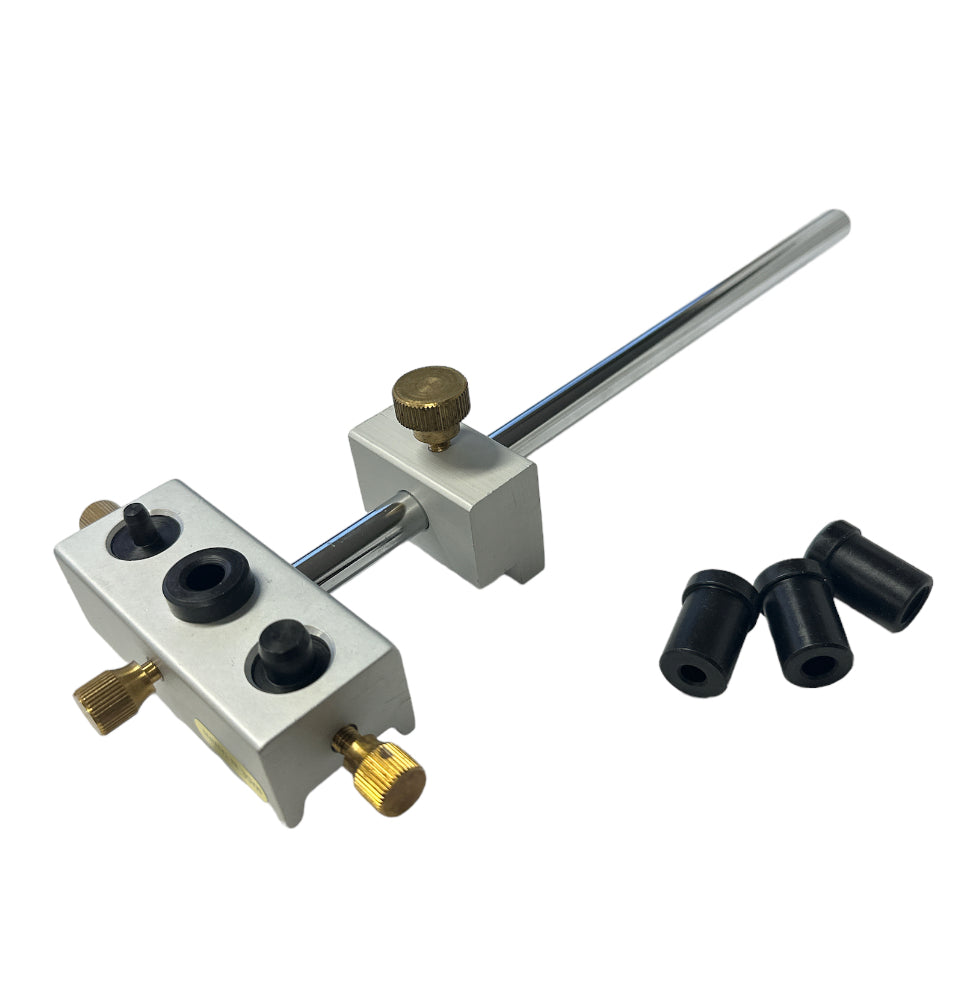

A fast, convenient aluminium jig for line boring. Features 2 hole centre distances: 25mm (1") and 50mm (2") and comes with 5, 7, 9mm and 1/4" bushings. The bushings easily adjust for fast and accurate installation of shelf pins.

Instructions

  1. Put the same size guide pin as bushing in the bushing block. Lock them by tightening brass screw;
  2. Adjust the distance from edge by moving the end stop on rod, and lock by tightening brass screw;
  3. When drilling the first hole, use the drill stop collar to set hole depth;
  4. Drill the next hole by inserting t5he guide pin into the first hole and end stop completely fitting the edge, repeat the same process to drill subsequent holes.
  5. Start the other side boring holes by putting the pin to another hole of bushing block. Always start from the same side to ensure the hole pairs sit on the same position.

Additional Information

Model
Type
Dowelling Jig Kit
SKU
8600663
Part Number
DF31
Barcode
735745530917
Brand
Oltre
Technical - Main
Material
Solid Brass
Country of Origin
Manufactured in
Taiwan
Packaging + Shipping
Shipping Length
240 mm
Shipping Width
80 mm
Shipping Height
40 mm
Shipping Weight (Gross)
1.48 kg
