Type
Drum Sander
SKU
8601283
Series
Platen
Part Number
PLATINUM 940DD
Brand
ToughCut
Size
940mm
Status
Available
Description
This versatile drum sander is designed for sanding a wide variety of parts such as metal, non-metal, wood, pc board, etc
Features:-

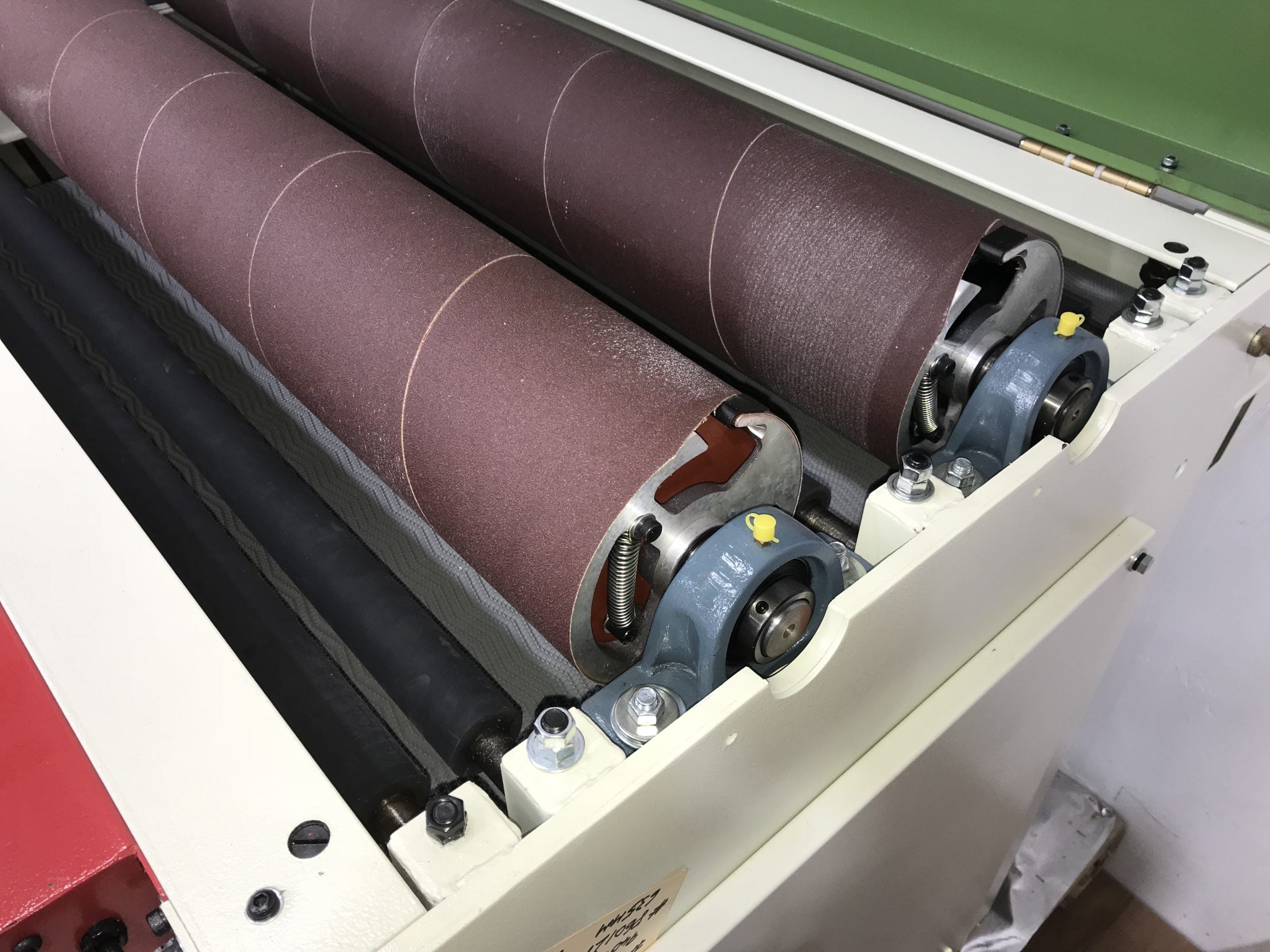

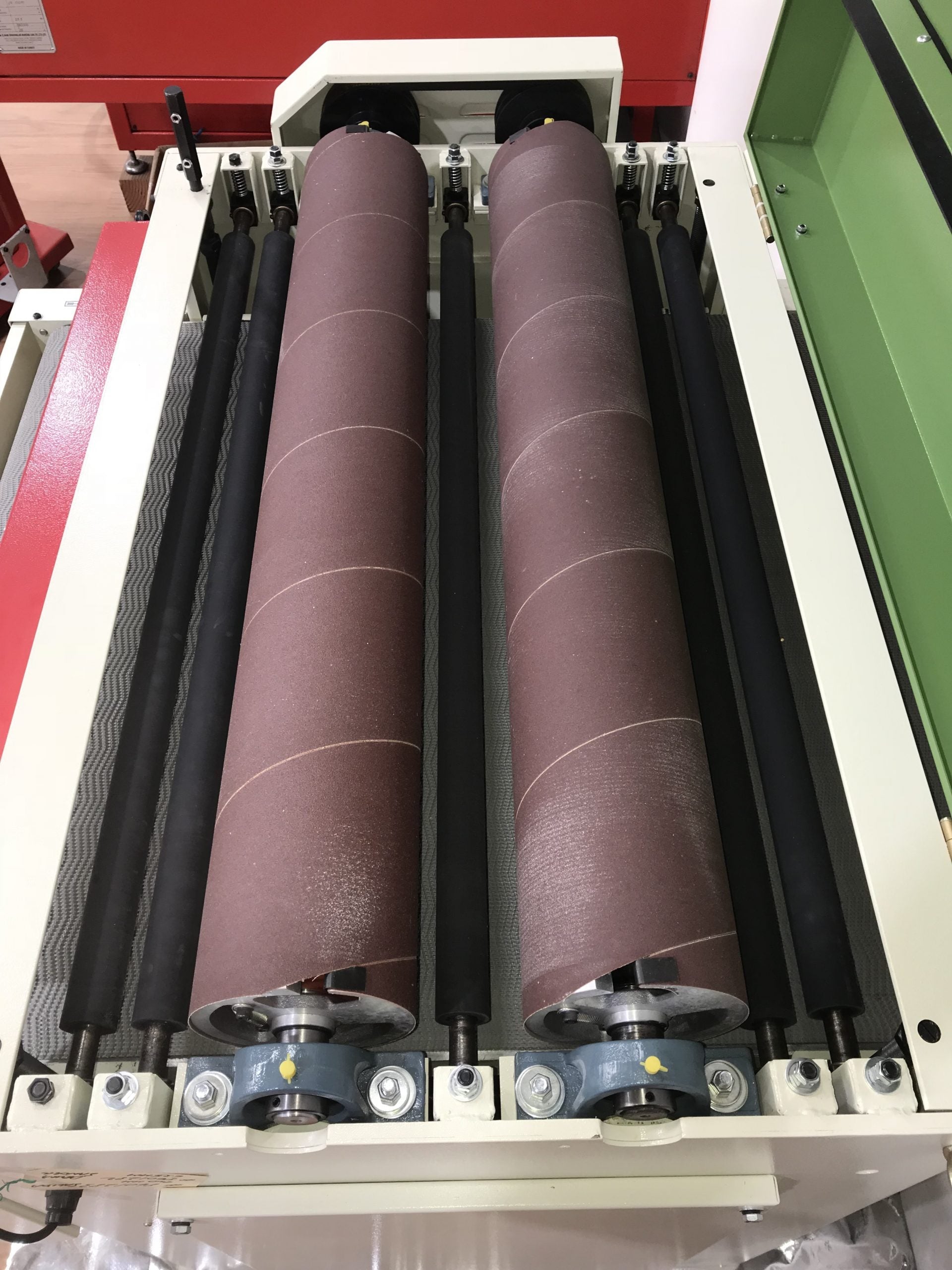

- 2 sanding drums with 37 inches sanding width and 4 inches sanding thickness

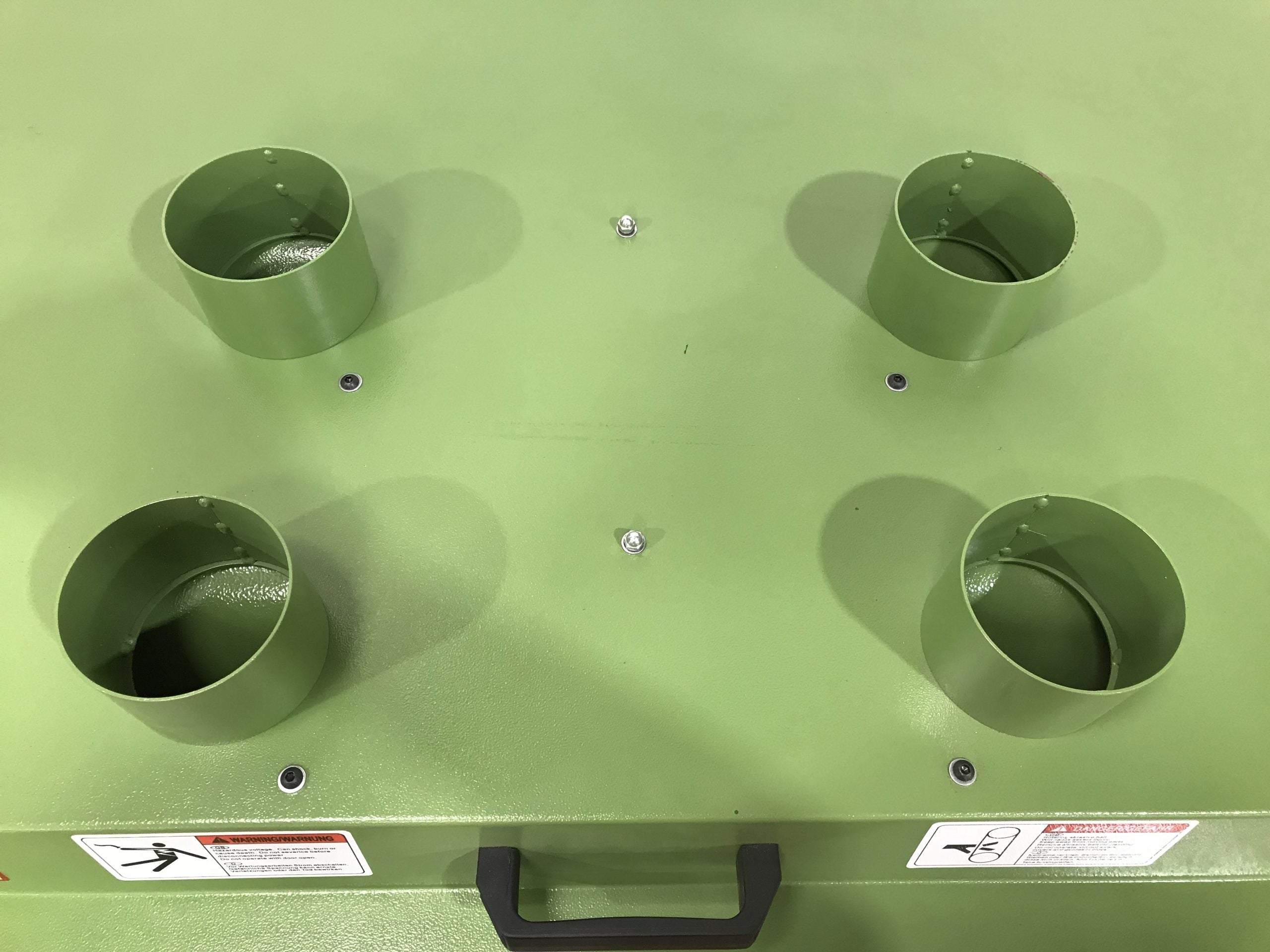

- Equipped with high efficiency dust system

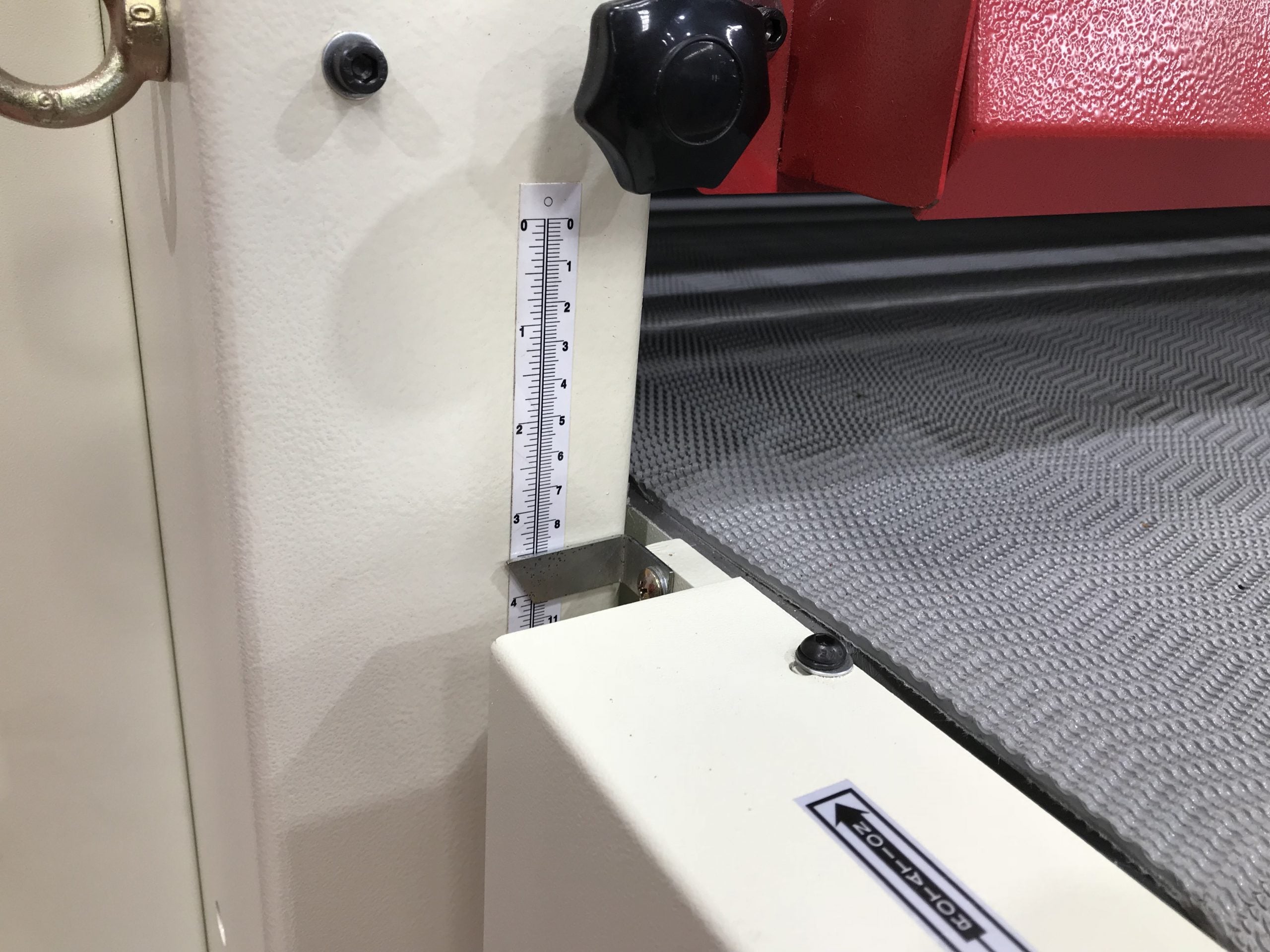

- Thickness control switch ensures operation safety
- Industrial grade conveyor belt provides smooth running and slip-free performance
- Variable feeding speed (optional)
- Feeding Motor: 1/4HP
- Sanding Wheel Speed: 1720 RPM
Additional Information
Model
Technical - Main
Motor Power (Output)
Motor Power (Output)
Output power means the maximum power that the motor puts out under ideal conditions.
7.5HP
Drum Size
940mm x 150mm
Feed Speed
2.4-7.2m/Min.
Material (Stock) - Minimum Length
300 mm
Material (Stock) - Maximum Height
100 mm
Sanding - Max. Depth
100mm
Sanding - Max. Width
940mm 37"
Speed Range
2.4-7.2m/min.
Dimensions
Product Weight (Net Weight)
470 kg
Country of Origin
Designed, Researched & Developed in
Australia
Manufactured in
Taiwan
Features
Variable Speed
Variable Speed
Variable speed motors generally start a motor at zero voltage and ramp it up slowly. This minimises the power needed to set the mechanism into operation, which in turn reduces the wear and tear on the motor. Variable speed also enables equipment to have precise speed control.
Safety
Emergency Stop Switch
Emergency Stop Switch
An emergency stop switch is a safety mechanism used to shut off machinery in an emergency, when it cannot be shut down in the usual manner.
Dust Port
Yes
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
1 Year
Packaging + Shipping
Shipping Length
135 cm
Shipping Width
125 mm
Shipping Height
114 cm
Shipping Weight (Gross)
520.0 kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Wooden Box / Crate with Skid
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Shipping Notes
This product is classified as 'Heavy / Oversized' and generally does not qualify for FREE SHIPPING.
