Status
Available
Description

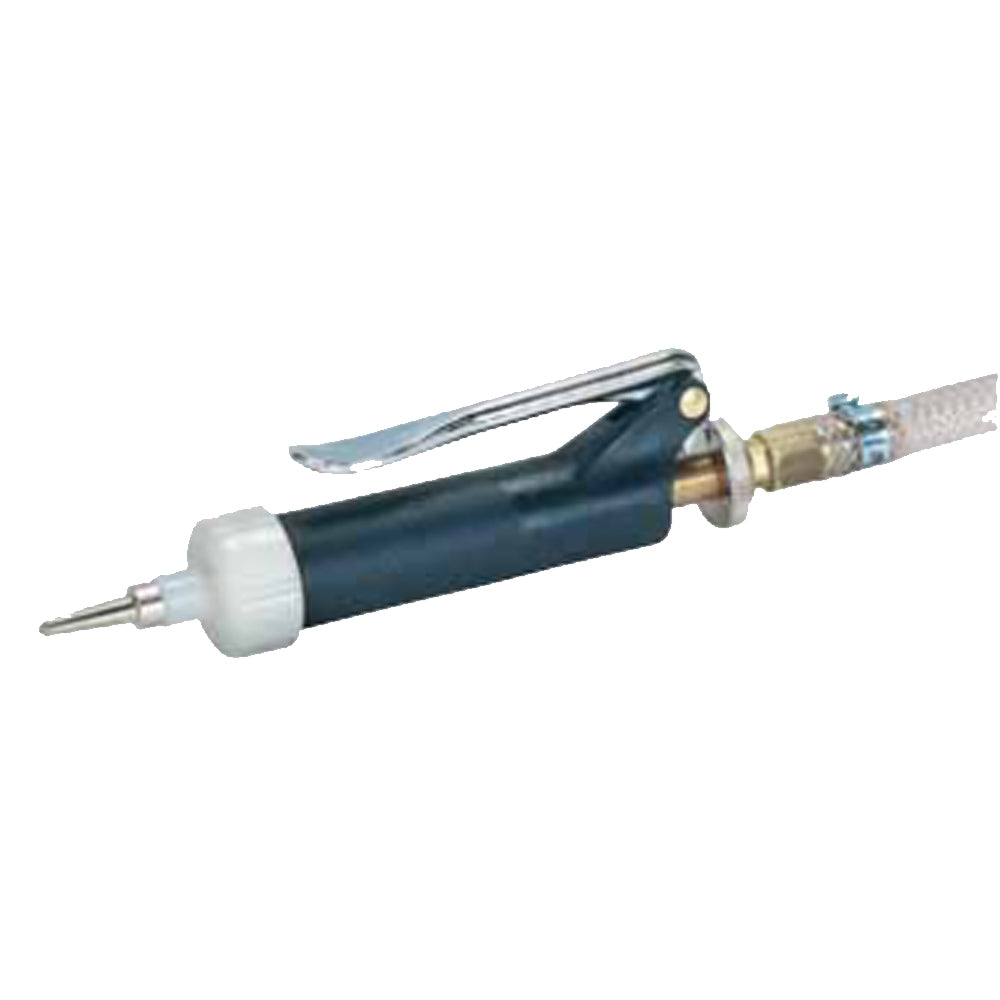

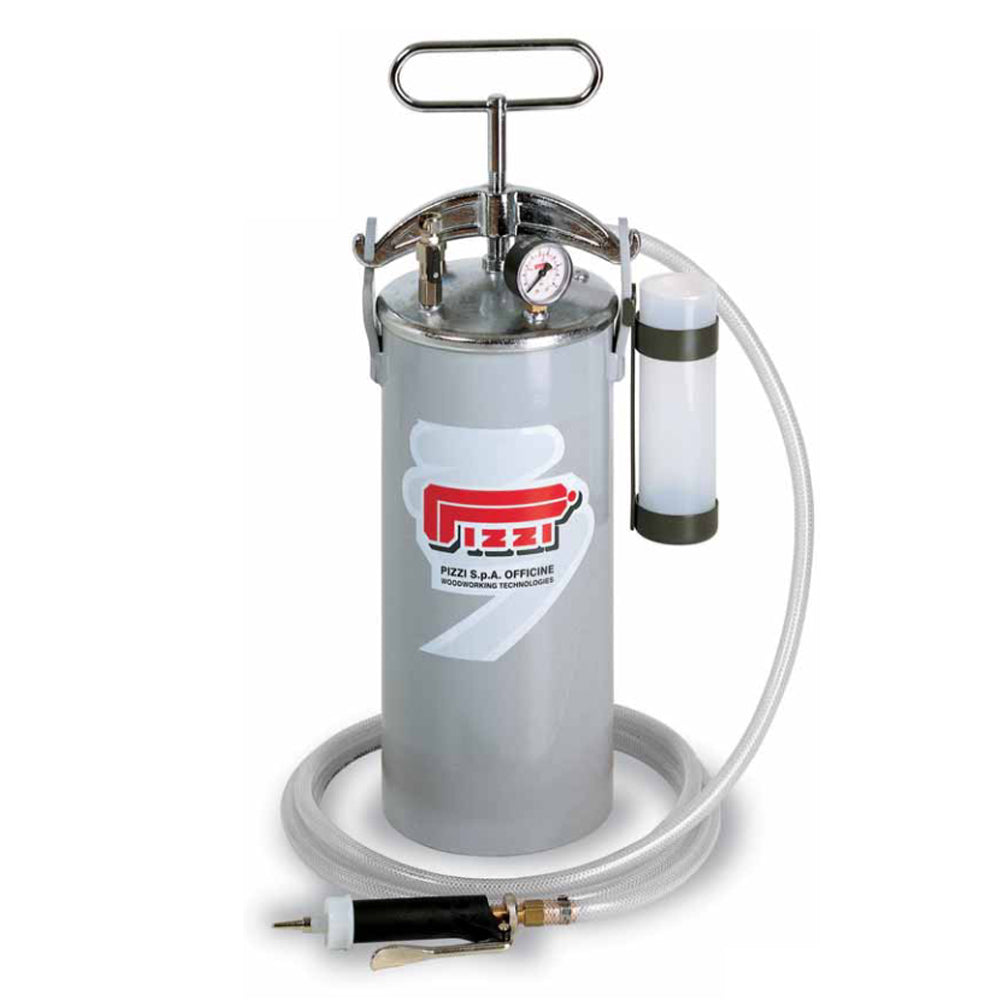

Pressurized glue tank for PVA glues with 1 glue gun with adjustable glue flow and universal pointed nozzle.
Iron tank with full inner plastic lining and chromed brass lid.
Specification
- Glue capacity 8 kg
- Max pressure 5 bar
- Recommended viscosity: Brookfield viscosity from 3.000 to 15.000 mPa s, at an operating temperature of 20°C/68° F.
NOTE
This system grants accurate adhesive dosing, the right adhesive quantity, in the correct area, covering precisely just the requested surface on any component and handwork.
The adhesive is dispensed by extrusion.
Each pressurized glue tank can be fitted with 1, 2 or 3 glue guns on which it is possible to connect a wide range of standard nozzles and also custom-made ones, all interchangeable on PIZZI glue guns.
All PIZZI pressurized glue tanks can be equipped with a wide range of standard accessories and nozzles to fullfil any specific needs and glue task.
This system can be supplied without glue gun (cod. 9000) and also, with a second type of glue gun with anatomic grip (cod. 9004).

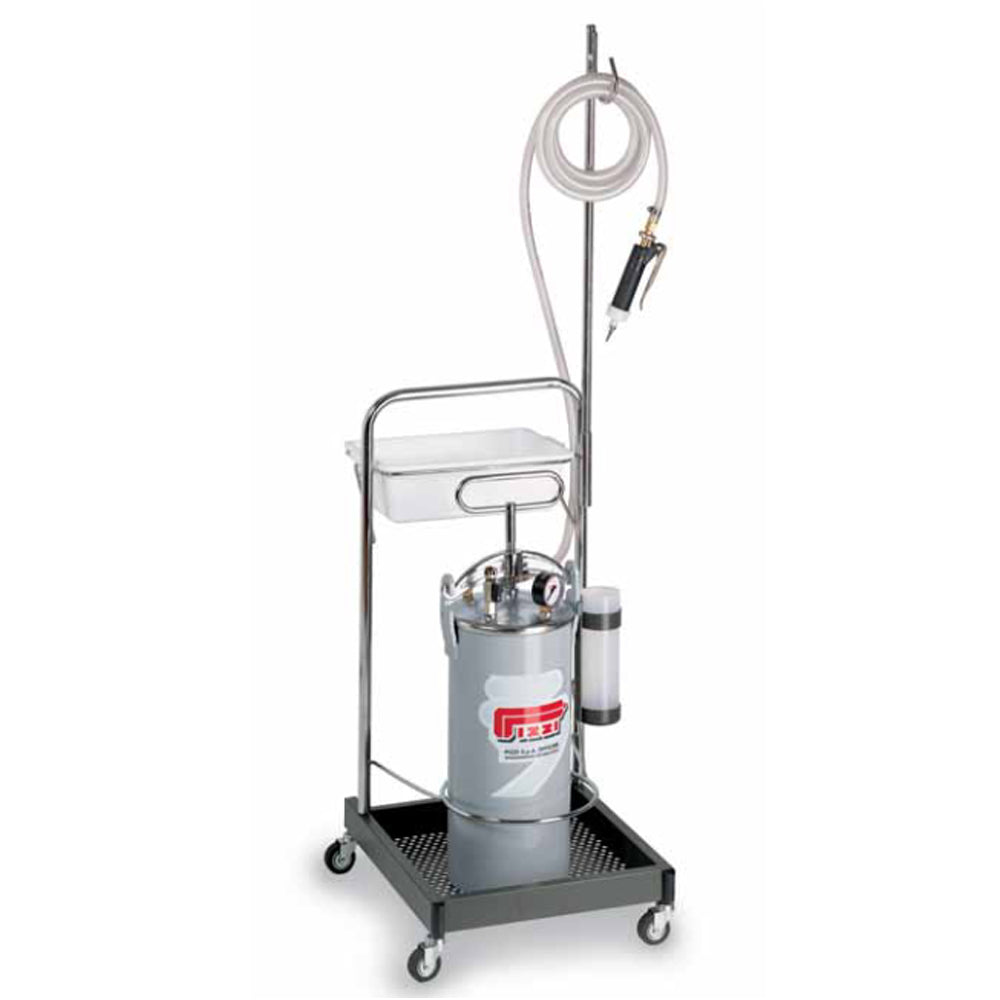

Please note: Trolley shown pictured is sold separately.
Additional Information
Model
Type
Glue Feeder
SKU
11021
Part Number
9001
Brand
Pizzi
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
Air / Pneumatic
Capacity
8Kg
PSI
75 PSI (5 Bar)

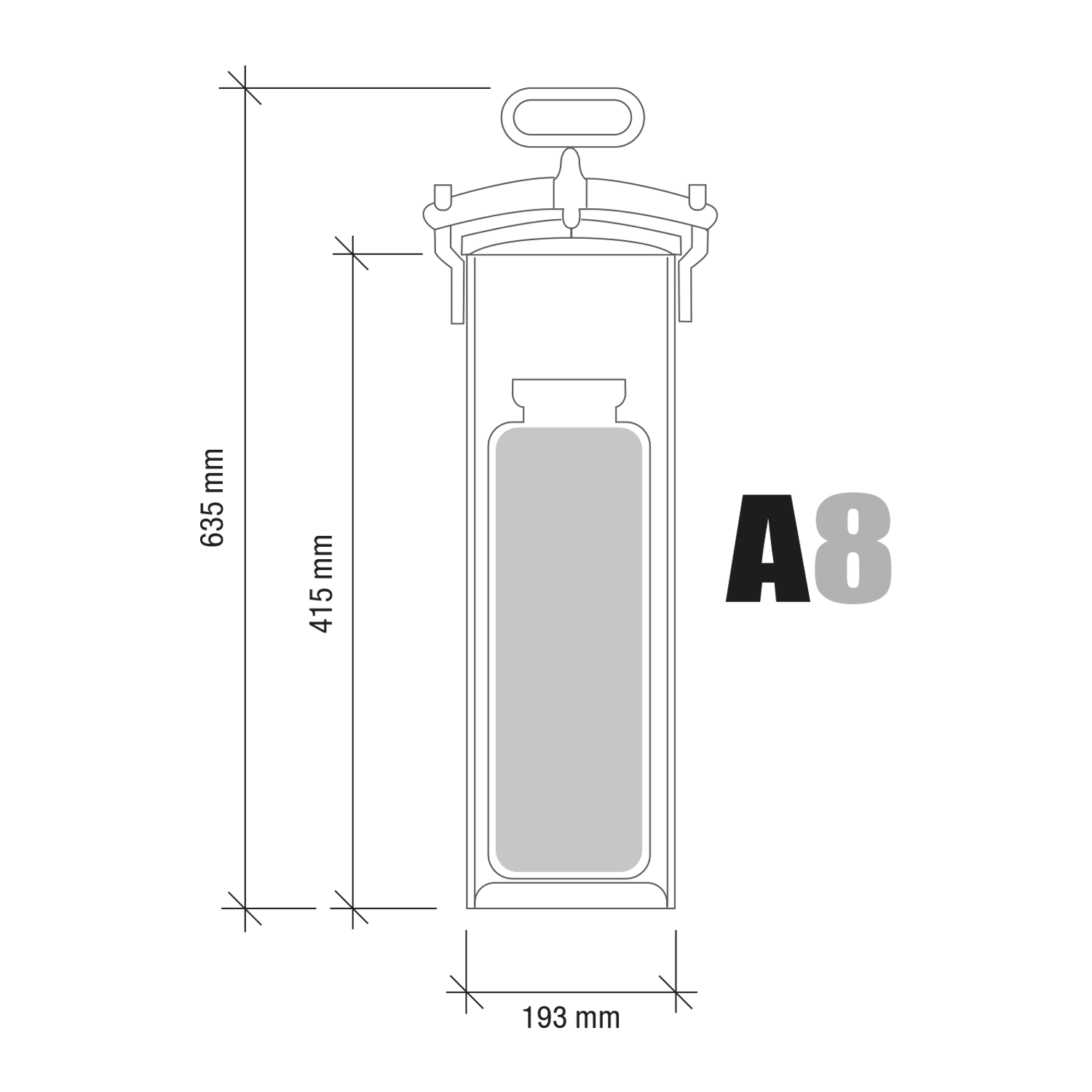

Dimensions
Product Length
193mm
Product Width
193mm
Product Height
635mm
Product Weight (Net Weight)
14kg
Country of Origin
Manufactured in
Italy
Features
Standard Inclusions
8Kg A8 Series Pressurized Glue Tank for PVA glues1 x 0002 Glue Gun with adjustable glue flow and universal pointed nozzle.Iron tank with full inner plastic lining and chromed brass lid.
Packaging + Shipping
Shipping Weight (Gross)
10.48kg
Product Specification Disclaimer
Product Specification Disclaimer
Product Specification Disclaimer
The specifications provided on our product pages are obtained from various manufacturers and third-party sources. While we strive to ensure that the information is accurate, we do not warrant or guarantee its accuracy, completeness, or timeliness. Therefore, we cannot be held liable for any errors, omissions, or discrepancies in the specifications provided.Please note that product specifications are subject to change by the manufacturers without notice. It is recommended to verify the specifications with the manufacturer or seller before making a purchase decision.In the event of any discrepancy between the product specifications on our website and the actual product, the latter shall prevail.We reserve the right to update, modify, or remove product specifications at any time without prior notice.
See Notes
Comparable Products Disclaimer
Comparable Products Disclaimer
Our product comparisons are based on our first-hand experiences and knowledge of models we've sold in the past. We aim to provide objective and accurate information to assist you in making informed decisions. We do not receive compensation for featuring products in our comparisons. For more details on our disclosure practices, please click here to view the full disclosure statement.
See Notes
Electrical Specifications (Important for International Customers)
Electrical Specifications (Important for International Customers)
Electrical Specifications (Important for International Customers)
Electrical Specifications (Important for International Customers)All power tools and machines sold by Beyond Tools are designed to operate on 230V / 50Hz electrical systems as standard in Australia.These products are supplied with Type I Australian power plugs.If you are purchasing from outside Australia, particularly from regions using 110V–120V systems (e.g., USA, Canada), you will require a step-up transformer or region-appropriate model.Please consult a qualified electrician before using voltage converters to ensure safe and correct operation.Disclaimer: Beyond Tools is not responsible for any damage, malfunction, or safety risks resulting from the use of products outside their intended voltage range or with incompatible electrical systems.
See Notes
Product Accessories
Product Accessories
- Brush Nozzles by Pizzi
- 10mm x 20mm (x 3) Triple Dowel Nozzle suit Dowel 0014 by Pizzi
- 10mm x 25mm (x 2) Double Pin Nozzle suit Dowel 0010 by Pizzi
- 6mm x 20mm (x 2) Double Pin Nozzle suit Dowel 0008 by Pizzi
- 6mm x 20mm (x 3) Triple Dowel Nozzle suit Dowel 0012 by Pizzi
- Single Pin / Dowel Nozzle suit Dowel by Pizzi
- 8mm x 20mm (x 3) Triple Dowel Nozzle suit Dowel 0013 by Pizzi
- Double Dowel / Pin Nozzle suit Dowel by Pizzi
- Double Sided Flat Nozzle 100mm x 40mm x 6mm 0019 by Pizzi
- Double Sided Flat Nozzle 100mm x 50mm x 6mm 0020 by Pizzi
- Glue Edge Applicator Nozzle suit Board Edges 0016 by Pizzi
- Finger Joint Nozzle for Multiple Groove Glue Joints 0029 by Pizzi
- Single Sided Flat Nozzle 100mm x 40mm x 6mm 0022 by Pizzi
- Tap Fitting for Nozzle Cleaning 0044 by Pizzi

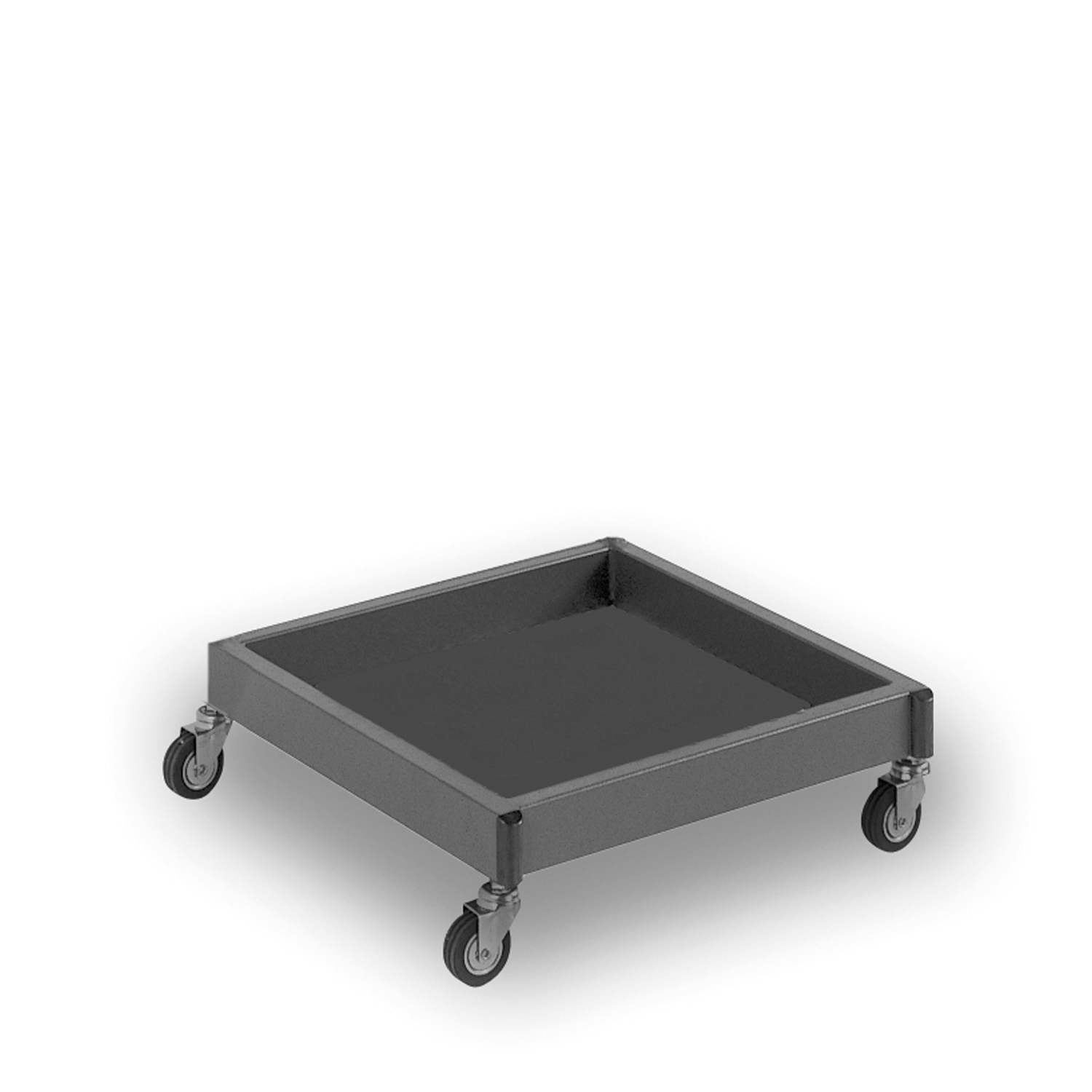

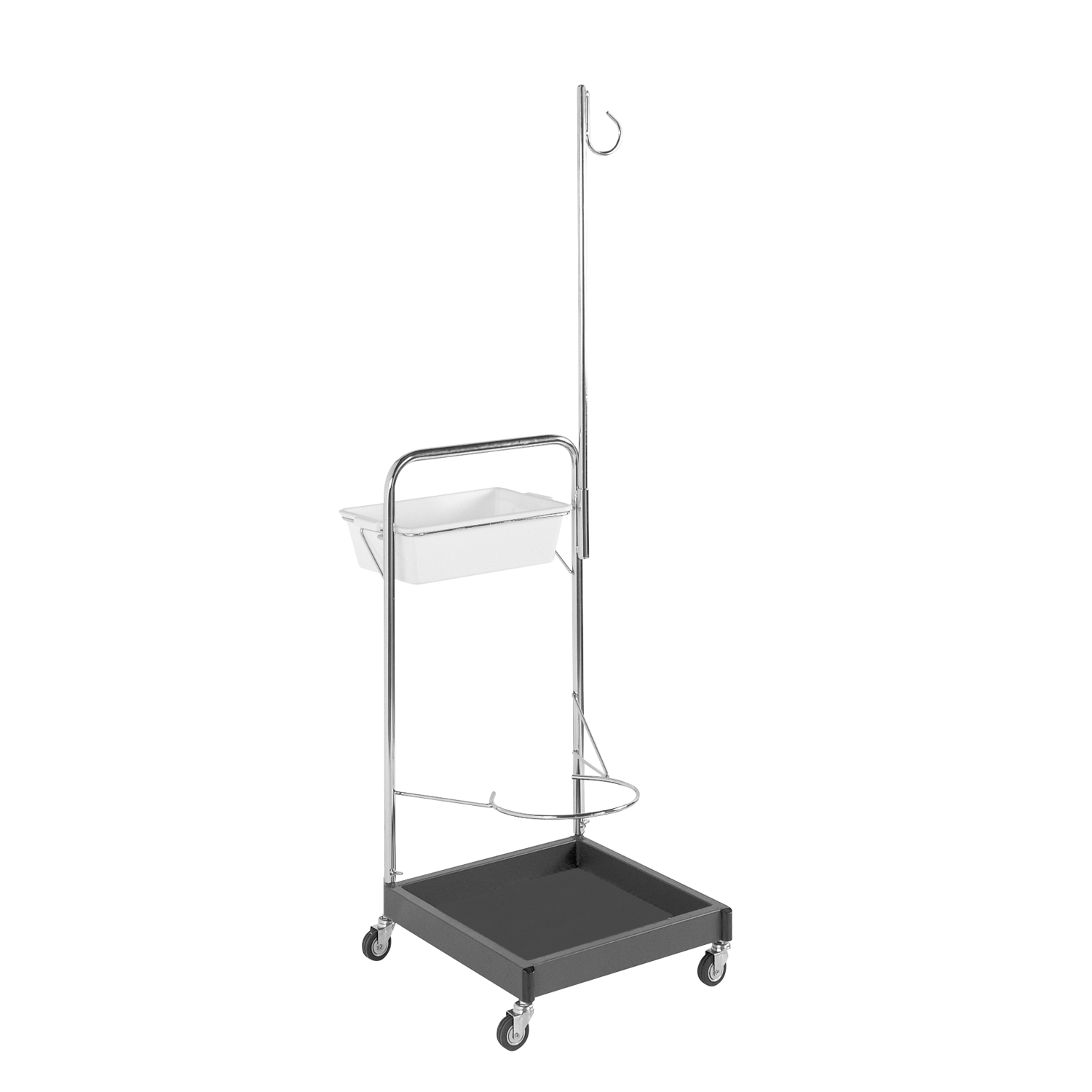

- Trolley for 12Kg A12 / A20 Series Glue feeder with Basin for Accessories 00157 by Pizzi
