860mm (34") Radial Floor Mount Drill Press RDP86016F by Oltre

OltreSKU: 9700091

Price:
Sale price$789.00
Stock:
In stock (12 units), ready to be shipped

Status

Available

Description

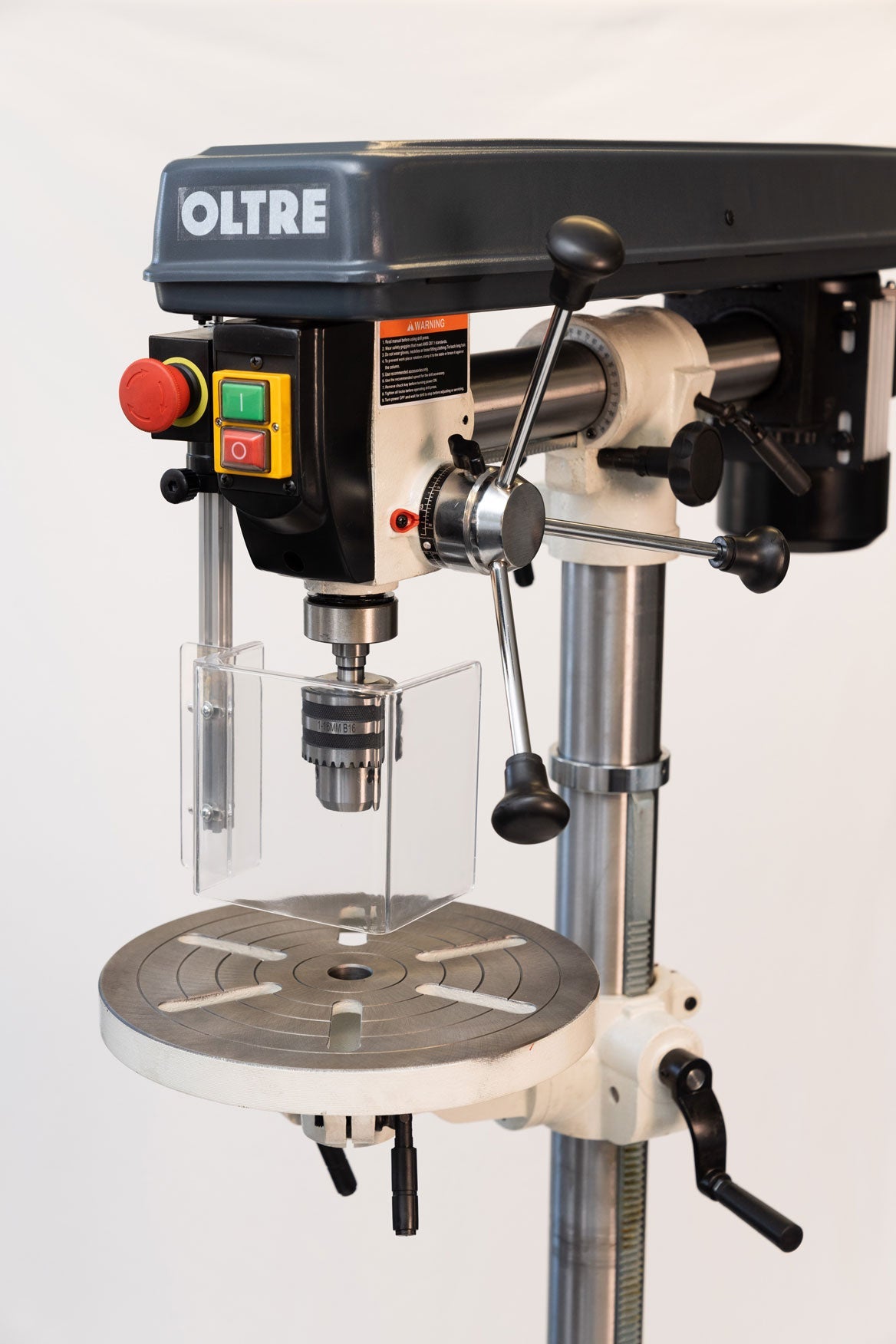

The beauty of Radial Drill Presses is the variety of angles that can be set for otherwise difficult boring operations. These specialised machines function like normal drill presses that bore in a vertical plane, but the unique rotating head and motor upper assembly also allows the head to turn laterally, left and right for angles too! This is ideal for boring projects that lie on the table or are too large to do so. Situations that cabinetmakers, farmers, and model makers frequently get into. In addition to the adjustable head, the work tables can also be titled and locked in position for boring holes at a set angle. Adjustable depth stop guarantee that multiple holes will all be drilled at exactly the same depth. Multi-step pulleys that let you change drilling speeds just by repositioning the drive belts. Large handles make table and head adjustments easy. The Radial Floor Mount Drill Press has the same great features as the bench model but has larger components in proportion with the added height and capacities of this floor model – large base, column, and table assemblies. The work table on this model is the round shape and will turn 360° as well as tilt 45° left and right.

Features

  • Induction Motors provide plenty of power for drilling

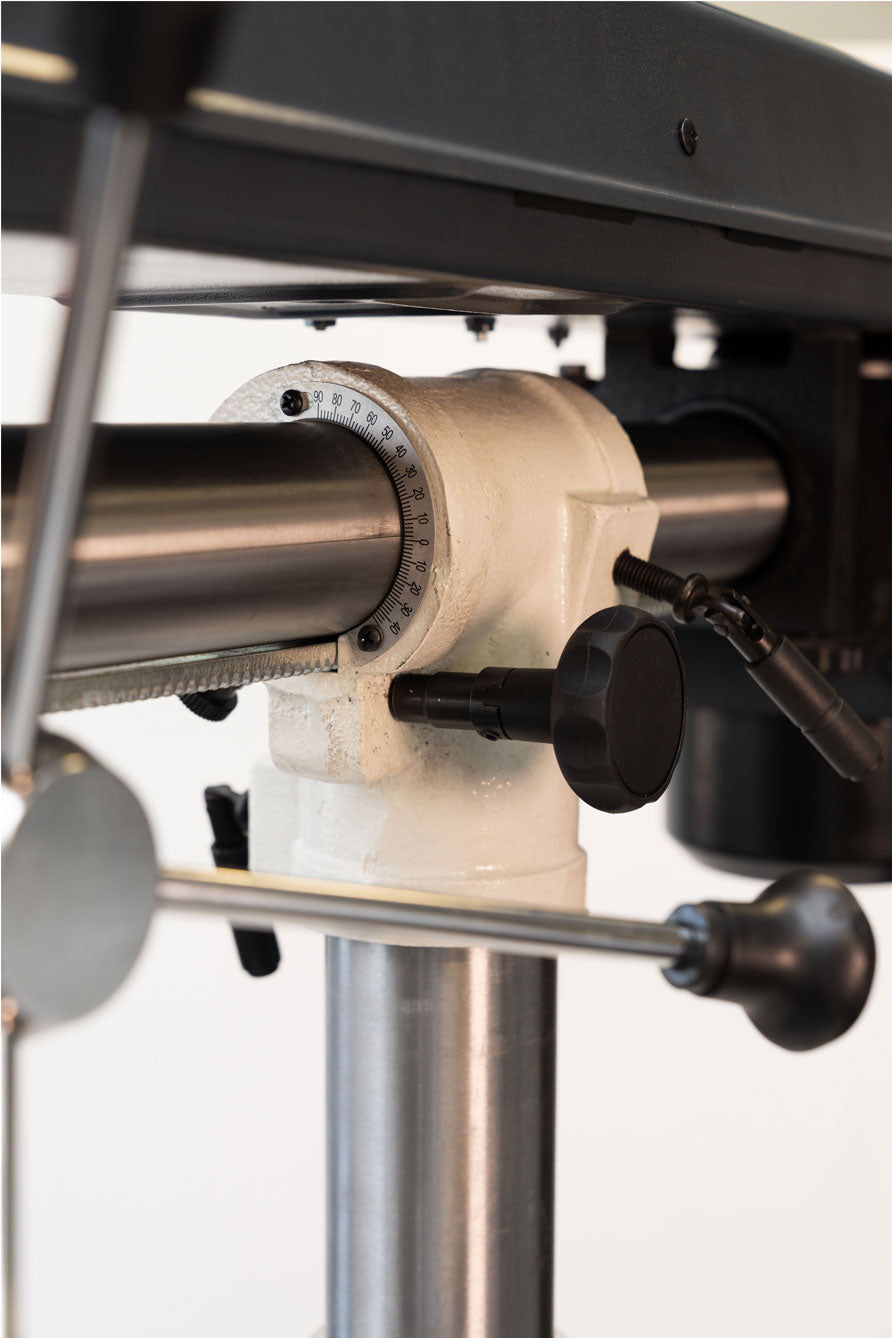

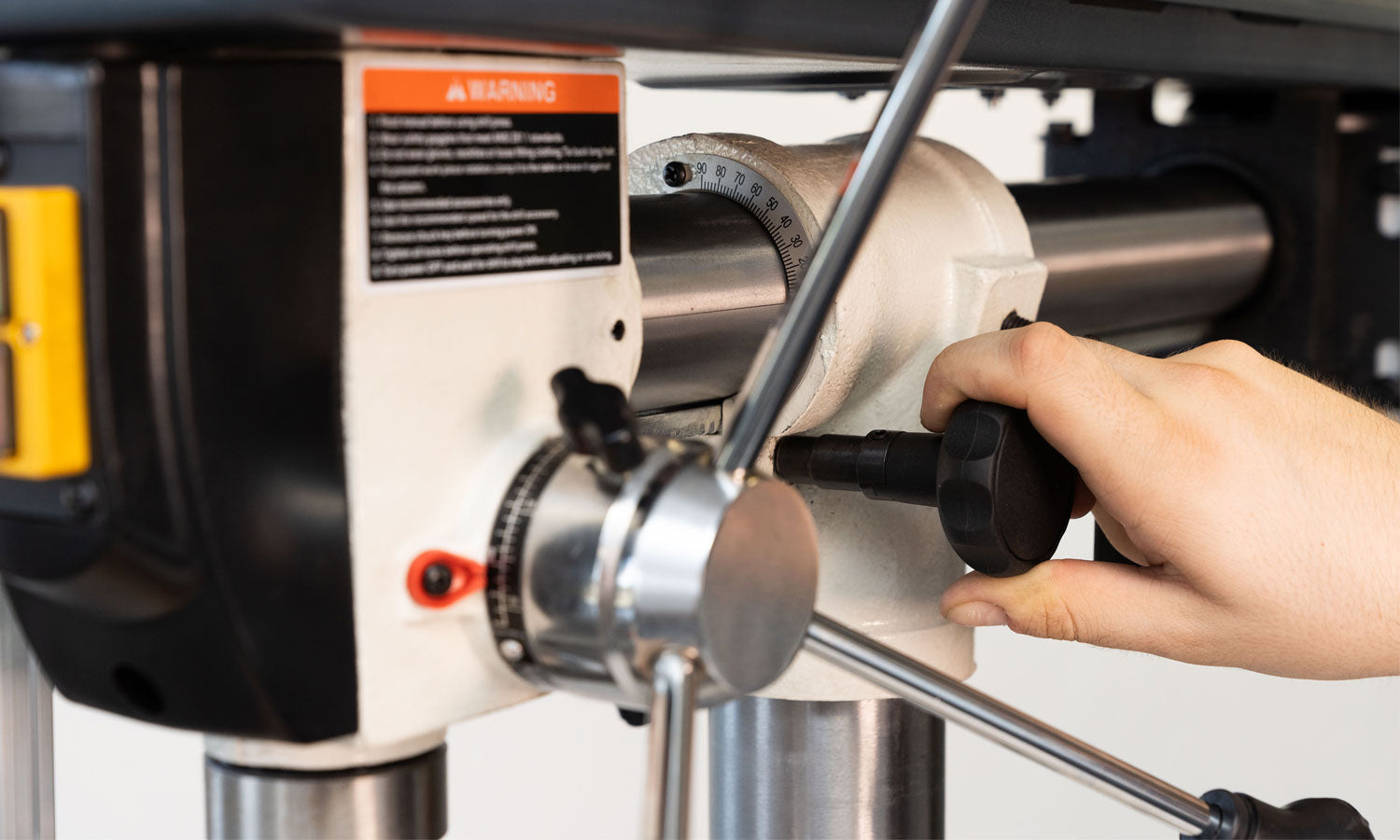

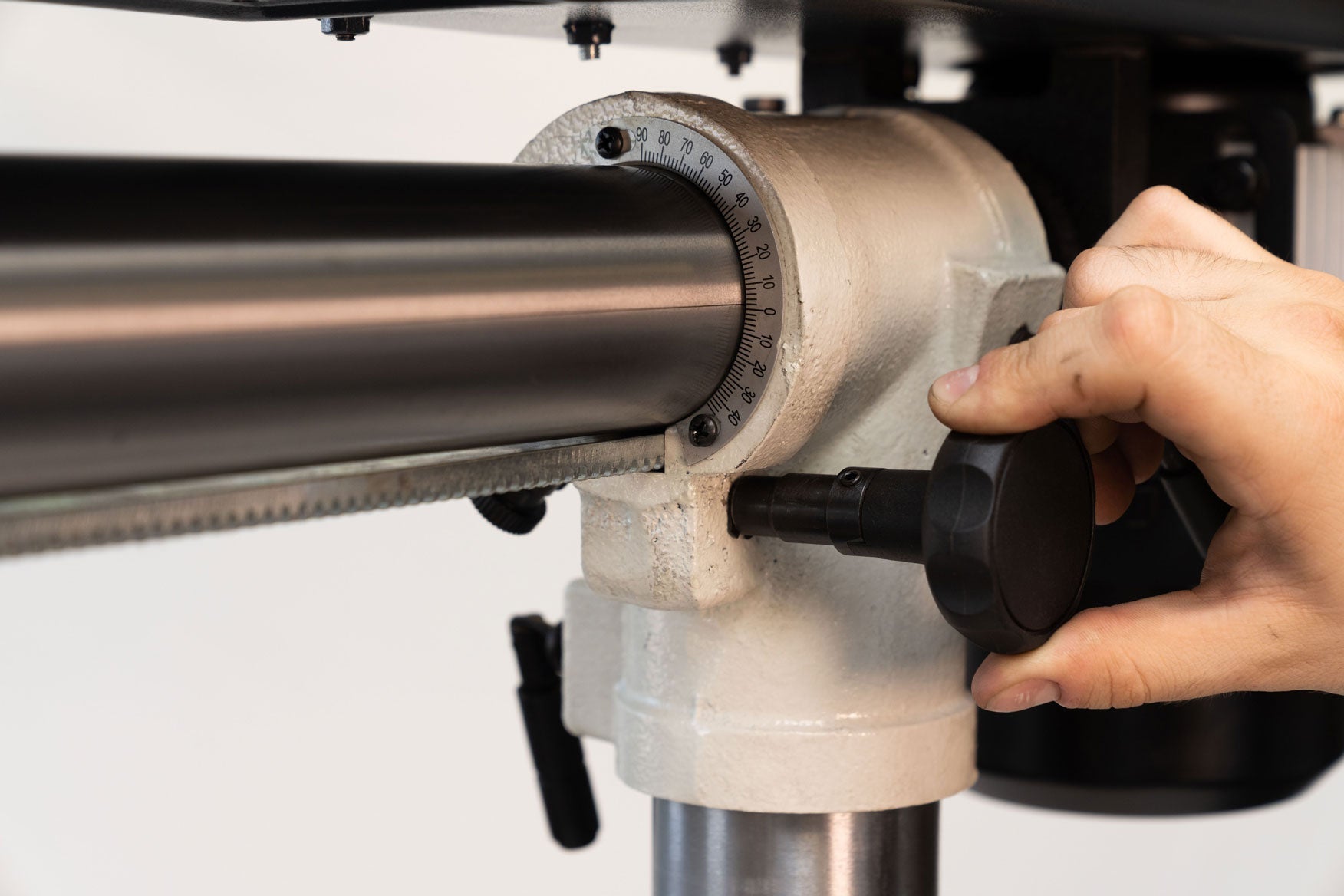

  • Head & Motor assembly tilt left and right for special angle drilling
  • Stepped Pulleys give multiple spindle speed choices
  • Keyed chucks hold drill bits and accessories tight

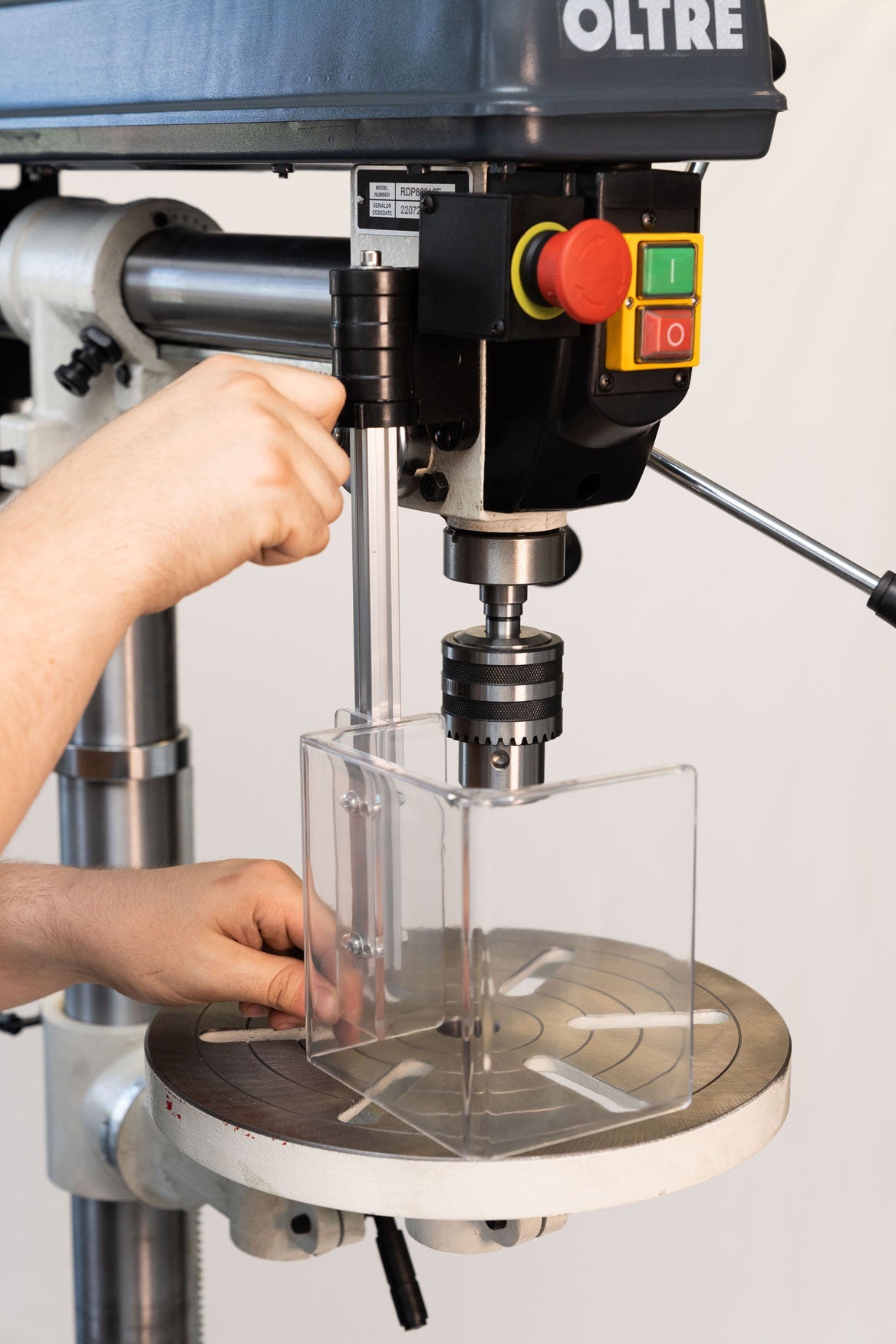

  • Adjustable depth stops are great for repeatable drilling
  • Cast iron head with spindle assembly operates precisely and smoothly

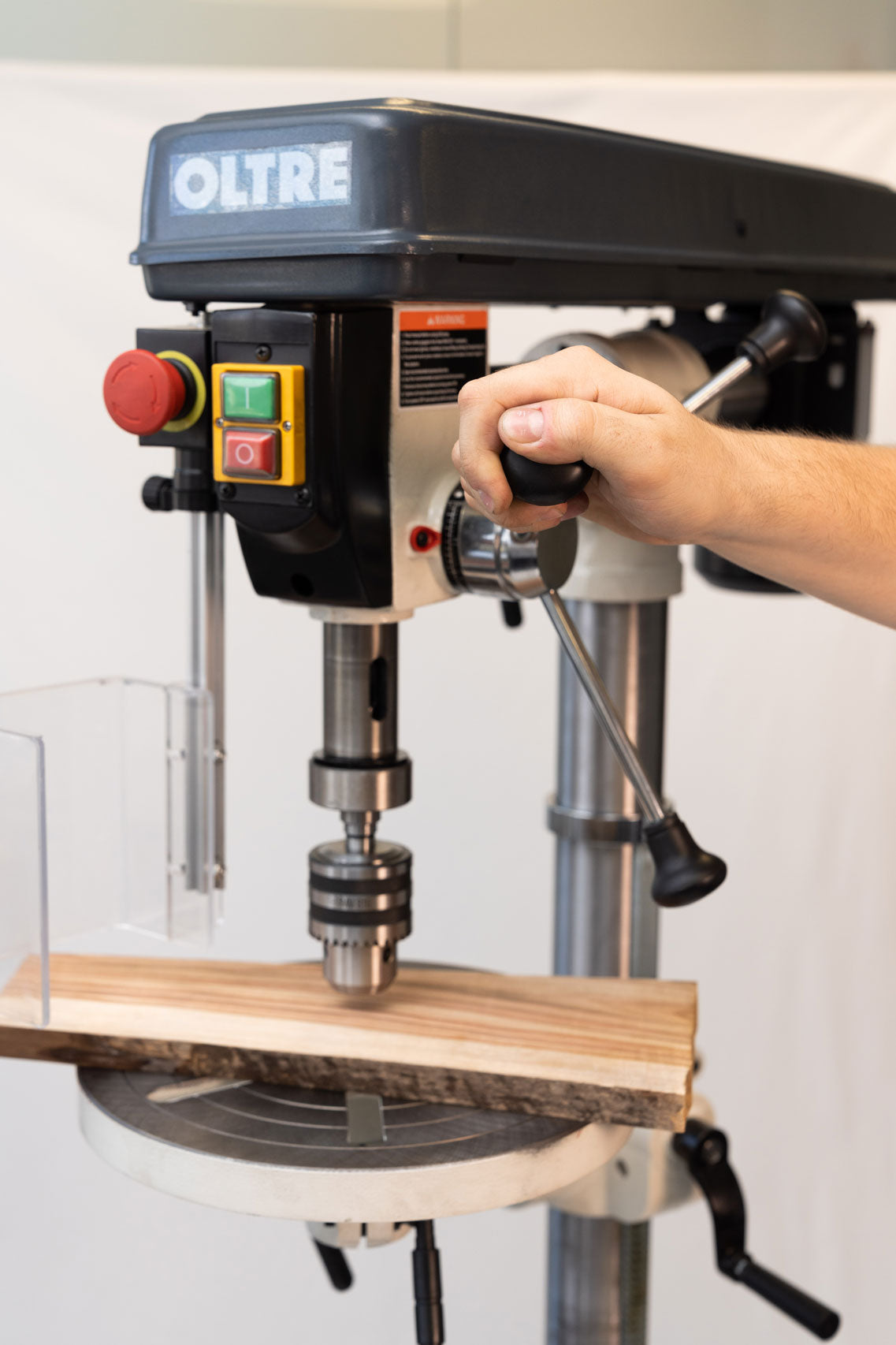

  • 3 Feed handles provide excellent control when drilling
  • Heavy Cast Iron bases have slots for attaching jigs or fixtures
  • Machined, cast iron table with slots for attaching clamps, vices, etc.
  • Rack & pinion design makes adjusting table and head assembly easy
  • Tables tilt and move up or down along the column for best working positioning
  • Thick metal columns give strong, rigid support
  • Front on/off toggle switches have removable safety tabs for extra security

Additional Information

Model
Type
Drill Press
SKU
9700091
Part Number
RDO86016F
Brand
Oltre
Size
860mm (34")
Configuration
Configuration
The term "configuration" refers to the design or setup of a machine, specifically whether it is benchtop, pedestal, or portable style.

Benchtop Configuration: Machines with a benchtop configuration are designed to be placed on a workbench or tabletop. These machines are typically compact and ideal for smaller workspaces or projects.

Pedestal Configuration: Machines with a pedestal configuration are mounted on a sturdy pedestal or stand. This configuration provides stability and may offer additional height and accessibility for certain applications.

Portable Configuration: Machines with a portable configuration are designed to be easily transported and used in various locations. These machines are lightweight and often feature handles or carrying cases for convenient portability.

Understanding the configuration of a machine is important as it determines how it will fit into your workspace and how you will interact with it during operation.
Floor Mount (Pedestal)
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
0.5HP / 370W
Table Size
300mm
Drilling Capacity
16 mm
Chuck Capacity
16 mm
Speed Range
440-2200
Technical - Spindle Moulder
Chuck Capacity
16 mm
Dimensions
Product Height
1630 mm
Product Weight (Net Weight)
58 kg
Country of Origin
Manufactured in
China
Features
Rack & Pinion
Rack & Pinion
A rack and pinion is a type of linear actuator that comprises a circular gear (the pinion) engaging a linear gear (the rack).
Easy Speed Change Device with Speed Adjust Handle
Easy Speed Change Device with Speed Adjust Handle
Easily change the speed without stopping the machine the traditional way and moving the belt - instead simply adjsut the speed with the easy adjust handle.
Safety
Emergency Stop Switch
Emergency Stop Switch
An emergency stop switch is a safety mechanism used to shut off machinery in an emergency, when it cannot be shut down in the usual manner.
Chuck Guard
NVR (No Volt Release) Switch
NVR (No Volt Release) Switch
A no volt release (NVR) switch is valuable safety feature for power tools and machinery. If the power is cut, the unit will default to off, so the machinery will not automatically start again when the power is restored.
Packaging + Shipping
Shipping Length
1400 mm
Shipping Width
500 mm
Shipping Height
250 mm
Shipping Weight (Gross)
62.0 kg
Shipping Notes
This product is classified as 'Heavy / Oversized' and generally does not qualify for FREE SHIPPING.
