Suitable for cutting Wood, Plastic, Paper, Acrylic, Rubber, other non-metal items. The perfect starter machine for hobbyists, craft/boutique applications. No CAD experience is necessary. Includes easy to use CAD Software, Exhaust Fan, Water Cooling System, and Air Pump.
This machine features an open frame configuration rather than a cabinet enclosure. Having this open frame setup, allows the machine to be easily unmounted from this frame allowing it to pass through narrows doors (This is not possible with the cabinet enclosure featured on the standard TCL130 series machine).
The Cutting Capacity / Thickness is dependent entirely on the material specification (ie. material composition) eg.:
- Material Country of Origin?
- Whether the material (MDF / Timber) is Dry / Wet?
- Whether the material is Old / New?
Standard Accessories
- Water Chiller Pump – CW5200 (Size 560mm x 285mm x 470mm)
- Air Exhaust Fan
- Air Pump
- Communication cable
- 3 Reflect Optics (installed in the machine)
- 1 Focus Optics (installed in the machine)
- 1 Laser Tube
- Rotary attachment for cylinder
- Motorised up and down platform

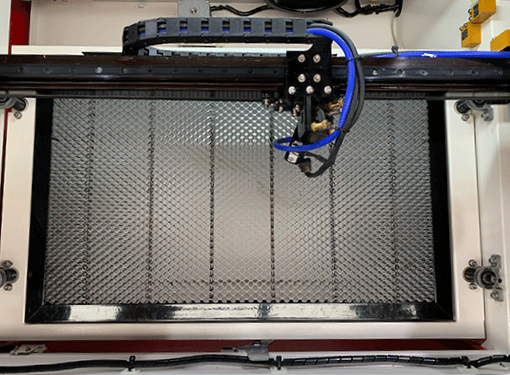

- Honeycomb Table
- Laser Engraving Software Package: Lightburn Software
Workshop Requirements:
- Power: 240V 10Amp 50Hz
- Odour & Fume Extractor
- Hardware: Computer / Laptop
- Delivery, Installation, Commissioning
Client Work
- Client User Video; Cut & Co. Perth, WA 1
- Client User Video; Cut & Co. Perth, WA 2
- Client User Video; Cut & Co. Perth, WA 3
- Client User Video; Sign_It_Studio, Perth, WA 4
Image Credits

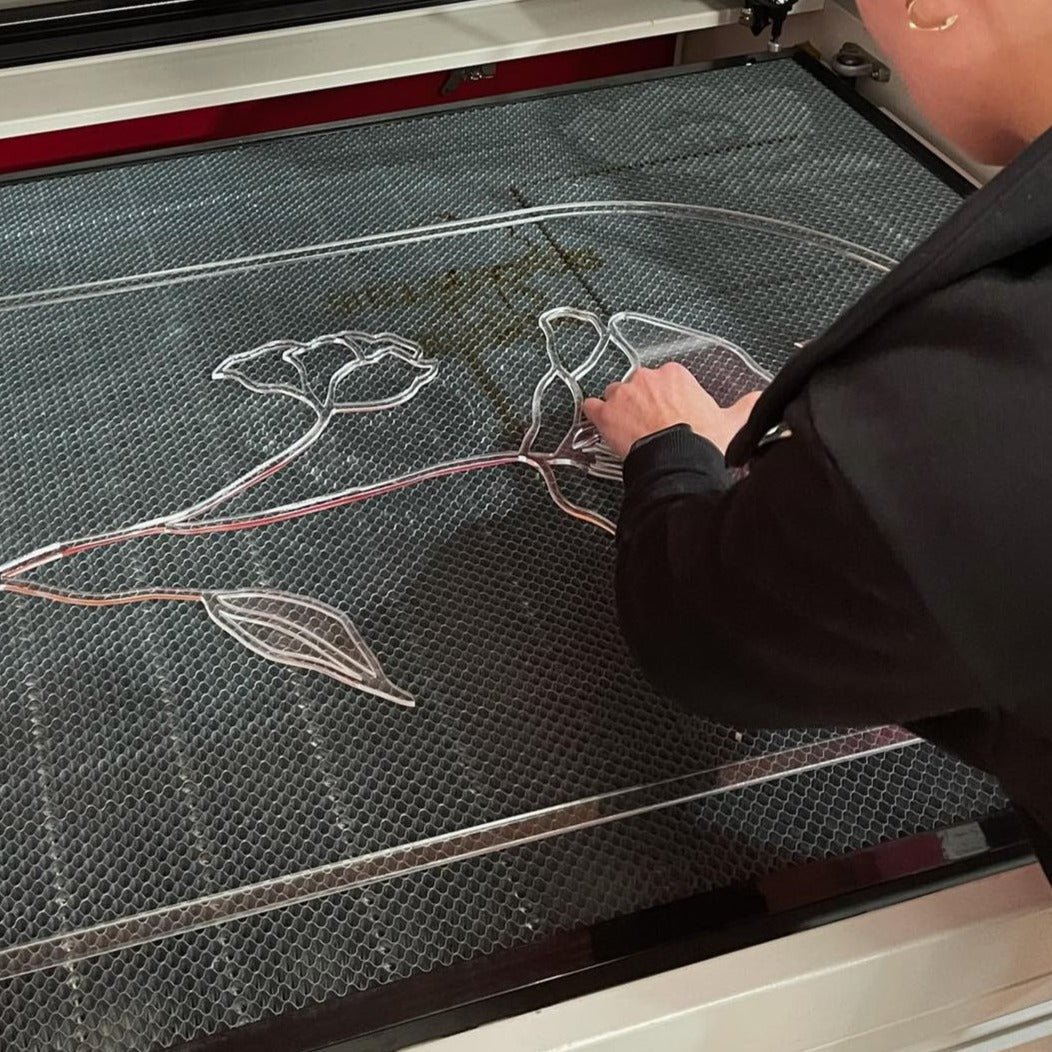

Some user images courtesy of Cut & Co. Perth + Blu Builders, Perth
Comparable Products
- Redsail RS80-7050 #8600979
Additional Information
Class 1: Safe under all conditions of normal use. Used in CD/DVD players, laser printers, barcode scanners. No special precautions needed.
Class 1M: Safe except when viewed with optical instruments. Used in fiber optic systems, measurement tools. Avoid using optical instruments to view the beam.
Class 2: Safe for brief exposure due to blink reflex. Used in laser pointers, alignment lasers. Do not stare into the beam.
Class 2M: Safe for brief exposure unless viewed with optical instruments. Used in alignment tools, rangefinders. Avoid using optical instruments to view the beam.
Class 3R: Low risk of injury, up to 5 mW. Used in laser pointers, alignment lasers. Avoid direct eye exposure.
Class 3B: Can cause eye and skin injuries, up to 500 mW. Used in research, some medical devices. Use safety goggles and avoid direct exposure.
Class 4: High risk, can cause severe injuries and fire hazards, above 500 mW. Used in industrial cutting, welding, medical, research. Use protective equipment and follow strict safety measures.
High-efficiency lasers using doped optical fibers; excellent beam quality, used in cutting, welding, and telecommunications.
Continuous Wave (CW) Lasers
Emit steady, uninterrupted beams; used for continuous material processing and research, require robust cooling.
Pulsed Lasers
Emit high-energy bursts; ideal for precision applications like micro-machining, engraving, and medical procedures.
Fiber Pulsed Lasers
Combine fiber laser efficiency with pulsed operation; used for precise tasks in micro-machining, engraving, and medical fields.
Gas Lasers
Use gases like CO2 or helium-neon; high beam quality, common in cutting, engraving, and scientific research.
Solid-State Lasers
Use solid gain media like crystals or glass; versatile applications including medical procedures, material processing, and laser ranging.
Dye Lasers
Use liquid dyes as the gain medium; tunable wavelengths, used in spectroscopy and medical treatments.
Semiconductor Lasers (Diode Lasers)
Compact, efficient lasers using semiconductor materials; common in communications, barcode scanning, and laser printing.
When a device is described as "WiFi enabled," it indicates that the device has a WiFi radio or chipset installed, which enables it to wirelessly connect to WiFi networks in homes, offices, public places, or any other location with WiFi coverage.
User Manual (CD)
Water chiller Pump – CW5200
Air exhaust fan
Air Pump
Communication cable
3 Reflect Optics (installed in the machine)
1 Focus Optics (installed in the machine)
1 Laser tube
Rotary attachment for cylinder
Motorised up and down platform
Honeycomb Table
Lightworks Software
