600mm x 600mm CNC Plasma Cutter with Huayuan Plasma Generator 6060 by Toughcut

ToughcutSKU: 9000443

Price:
Sale price$16,900.00

Status

Available

Description

Toughcut CNC Plasma Cutter 6060 - Precision Cutting in a Compact Size

The Touchcut CNC Plasma Cutter 6060 is a high-quality cutting machine designed for small shops and hobbyists who require precision cutting capabilities in a compact size. With its advanced features, easy-to-use interface, and affordable price, the Toughcut CNC Plasma Cutter 6060 is an excellent investment for anyone looking to take their cutting capabilities to the next level.

Features

  • Precision cutting: The Touchcut CNC Plasma Cutter 6060 uses a powerful plasma cutting torch to make clean precision cuts in steel.
  • Easy-to-use interface: The Touchcut CNC Plasma Cutter 6060 comes equipped with an intuitive interface that makes it easy to program and operate, even for those with little to no experience.
  • Compact size: The Touch it CNC Plasma Cutter 6060 is designed to be compact. It's the perfect size for small shops or hobbyists or schools who don't have a lot of space to spare.
  • Durable construction: The OMNI CNC Plasma Cutter 6060 is built to last, with a sturdy frame and high-quality components that can withstand heavy use.

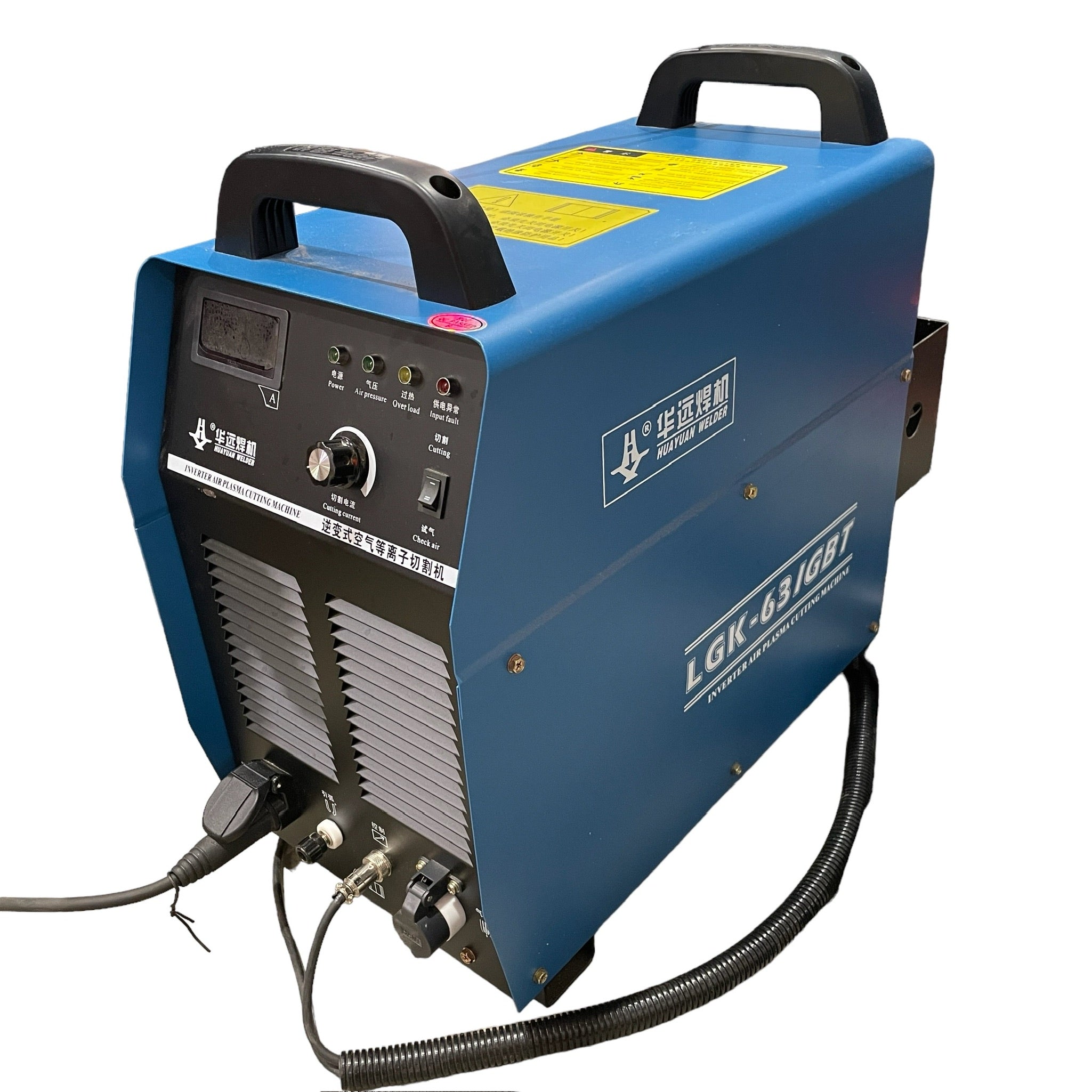

  • Plasma Generator: 63A (Output) Heayuan Plasma Generator
  • Welded Square Tube Steel Frame with Inlet and Outlet Tap for Water Table
  • Working Form: Untouched Arc Striking
  • X,Y,Z Travelling Positioning Accuracy: ±0.05mm
  • X,Y,Z Travelling Repositioning Accuracy: ±0.05mm
  • Welded bed of thick-wall profiled steel to ensure a solid and stable bed.

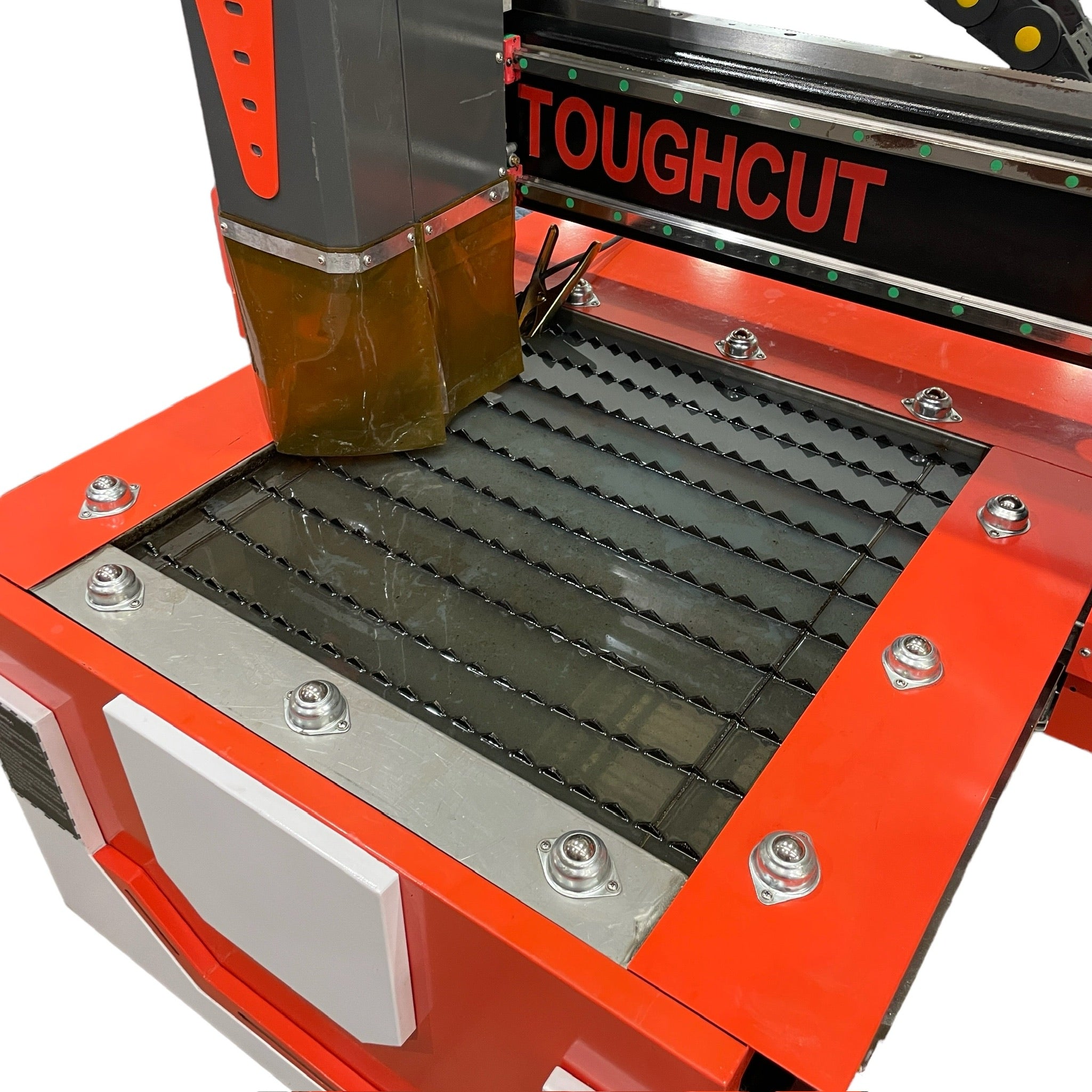

  • The table has a practical design that includes 10mm thick steel plates that are securely fastened to the table and covered by a cast sheath with spikes. This design ensures that the steel plates remain undamaged even when exposed to high temperatures from the cutting flame. Additionally, the double-deck platform maintains a level difference of 0-1.5mm.
  • The machine utilizes four stepper motors and high-accuracy helical rack and pinion transmission for precise and stable coordinate movement. This results in low noise and accurate cutting performance. Additionally, the machine is equipped with a reliable START control system developed through a Sino-US joint venture, and it includes the user-friendly FL Cam software with an automatic material saving function.

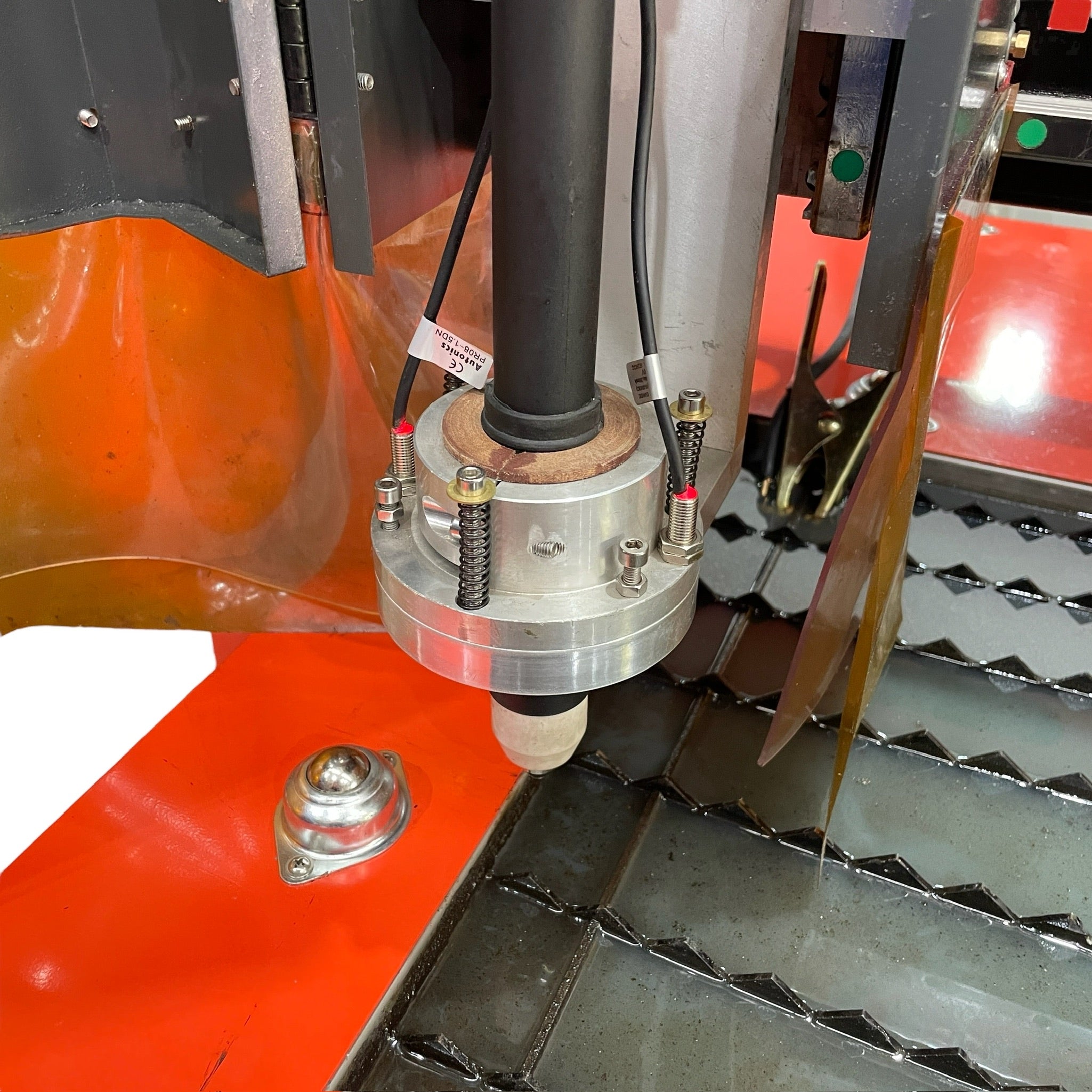

  • The CNC plasma cutter features a self-adjusting Torch Height Controller that automatically selects the optimal distance between the plasma head and the workpiece, ensuring precise and accurate cutting. This feature makes it the ideal choice for cutting various types of materials, including those with different thicknesses and heterotypic sheets.

Additional Specifications

  • Cutting area: 600mm x 600mm
  • Cutting speed: 0-6000mm/min
  • Torch height control: Automatic

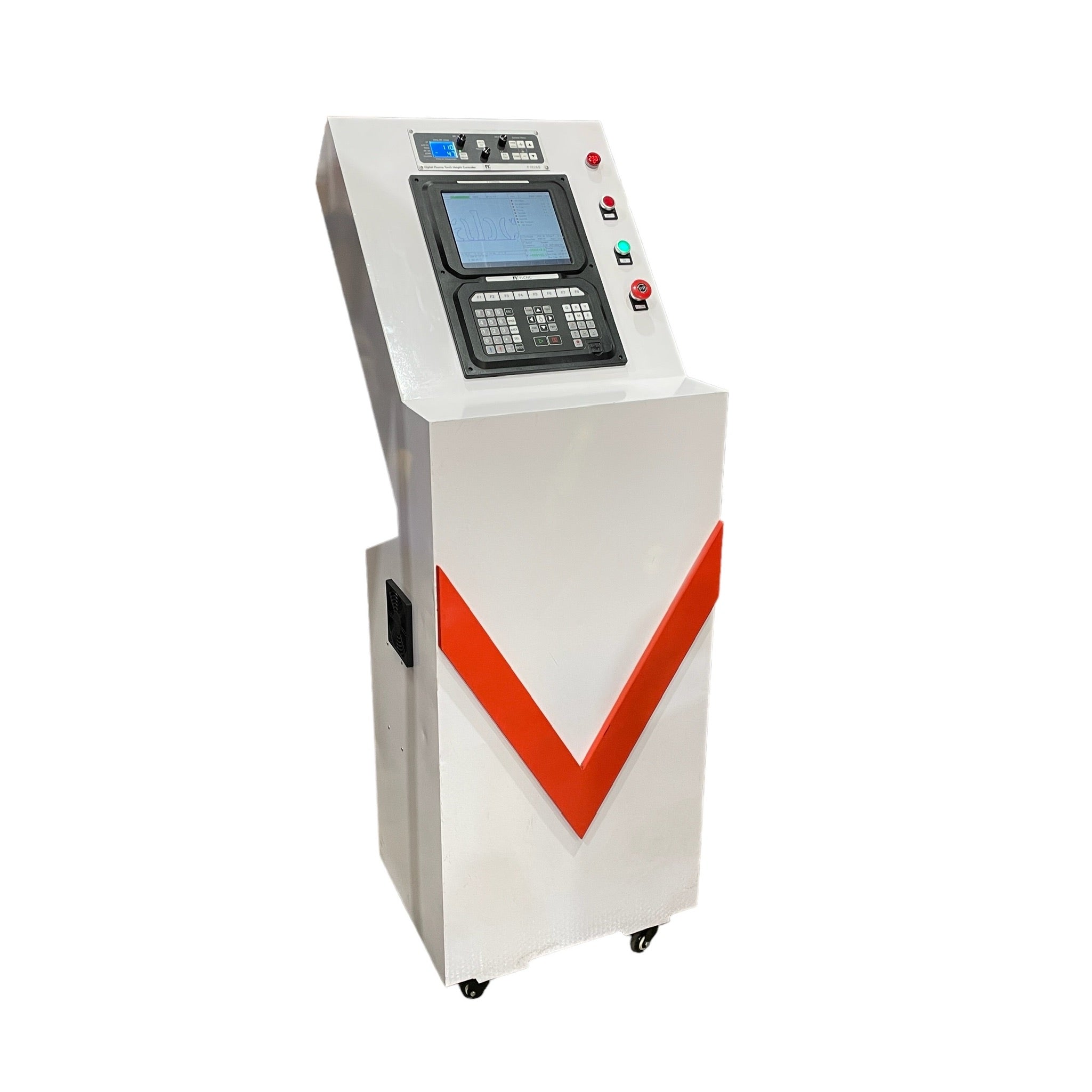

  • Control system: START control system
  • Plasma Power: 63A
  • Plasma Power Source: LGK-IGBT
  • Cutting software: FL CAM
  • Supported Input: G-code, HPGL, CAD, PLT

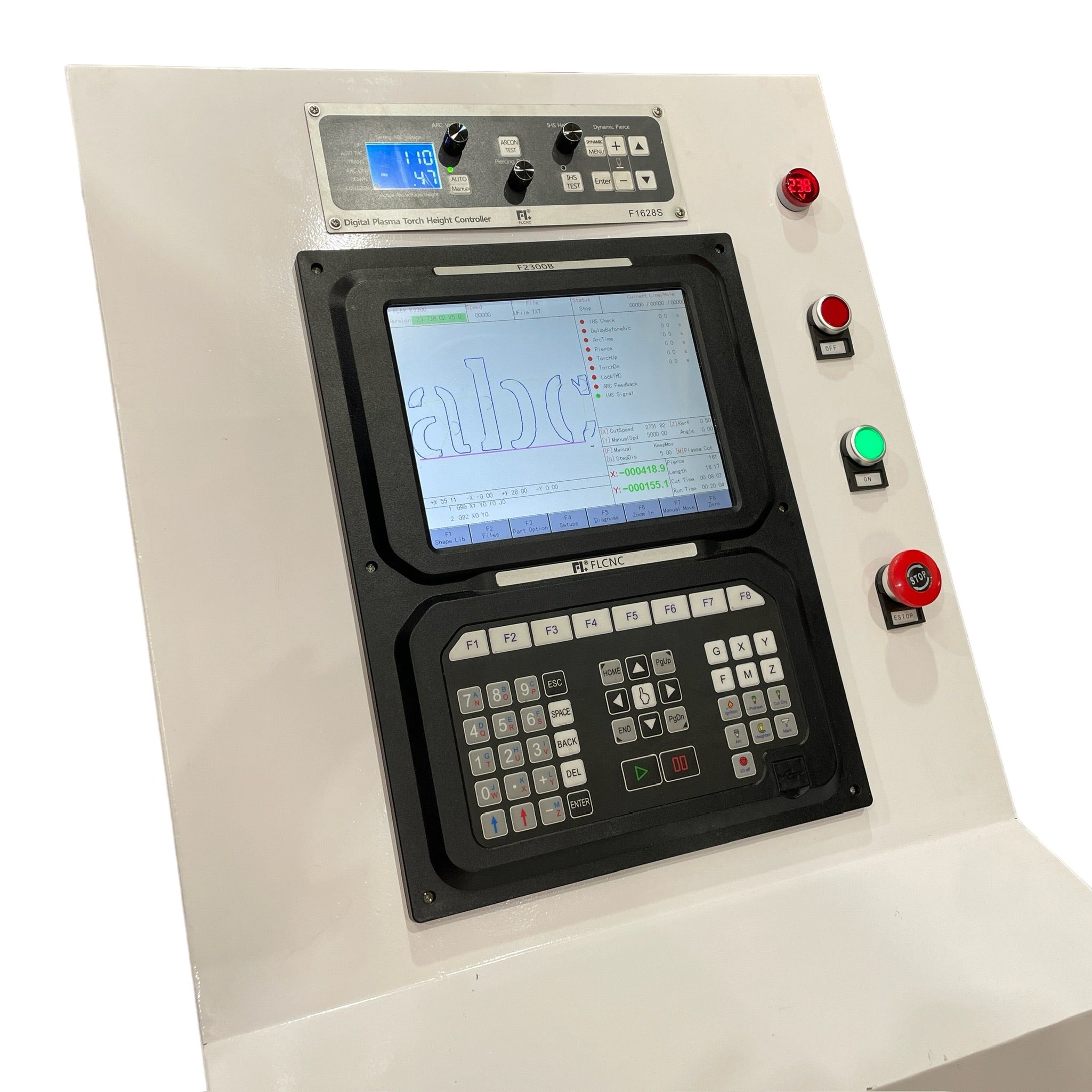

  • Operation System: Start control system with HC-30 Auto Torch Height Controller
  • Working Form: Untouched Arc Striking
  • Document Tranmission Form: USB Interface

If you're looking for a compact and affordable cutting machine that doesn't compromise on precision, the Touchcut CNC Plasma Cutter 6060 is an excellent choice. With its advanced features, easy-to-use interface, and durable construction, it's the perfect addition to any small shop or hobbyist workspace.

Additional Information

Model
Type
CNC Plasma Cutting Machine
SKU
9000443
Part Number
OMNI6060/HUAYUAN 63A
Brand
Toughcut
Size
600mm x 600mm X Y Cutting Area (600mm x 900mm Table Size)
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
415V 50Hz Three Phase
Accuracy
±0.05mm
Amps
60
Cut Max. Depth @ 0°
12 mm
Motor Brand
Yako Drive and Stepper Motor
Plasma Generator
60A Huayuan Plasma Generator
Table Size
600mm x 900mm
Dimensions
Product Length
1250 mm
Product Width
1500 mm
Country of Origin
Designed, Researched & Developed in
Australia
Manufactured in
China
Features
Digital Speed Display
Digital Speed Display
A no volt release (NVR) switch is valuable safety feature for power tools and machinery. If the power is cut, the unit will default to off, so the machinery will not automatically start again when the power is restored.
Standard Inclusions
In Built Water Table
Safety
CE Certified
Workshop (Site) Info
Electrical Connection
Excludes Plug & Lead (must be connected / installed by Licensed Electrician)
Plasma Generator
60A Huayuan Plasma Generator
Other Requirements
240V 10A Single-phase to the controller unit 415V 20A 3-Phase to plasma unit. Extraction (Flued)
Workshop Requirements
240V 10A Single-Phase to the controller unit,
415V 20A 3-Phase to plasma unit,
Extraction (Flued)
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
1 Year
Packaging + Shipping
Shipping Length
1300 mm
Shipping Width
1300 mm
Shipping Height
1650 mm
Shipping Weight (Gross)
650.0 kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Wooden Box / Crate with Skid
Requires a Skid to Ship
Requires a Skid to Ship
Items over 32kg must be packed on a pallet or crate so they can easily be moved by forklift.
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Shipping Notes
This product exceeds hand unloading limits and requires a tail lift truck or forklift at the unloading location (Receivers end).
