430mm (17") Drill Press DP430016F-VS by Oltre

OltreSKU: 9700087

Price:
Sale price$1,559.00
Stock:
In stock (6 units), ready to be shipped

Status

Available

Description

Large drilling capacity that handles the tough work demands of professional and industrial workshops that deal with wide panels and various sizes of furniture components. They have become the standard for shops worldwide and will be greatly utilised and appreciated in your shop, too. As with the smaller range of drill presses, these big boys have similar design features and settings for tackling a variety of straight or angle drilling projects in wood, plastics, and metals.

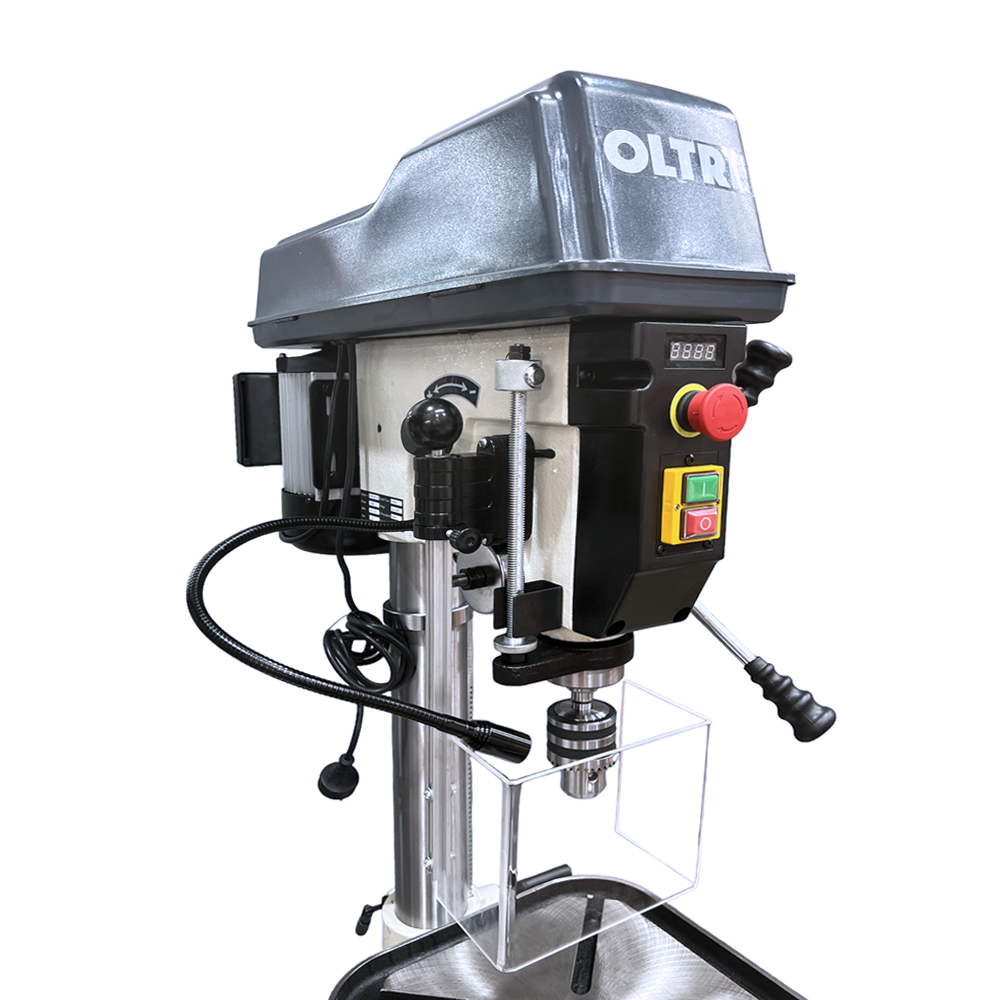

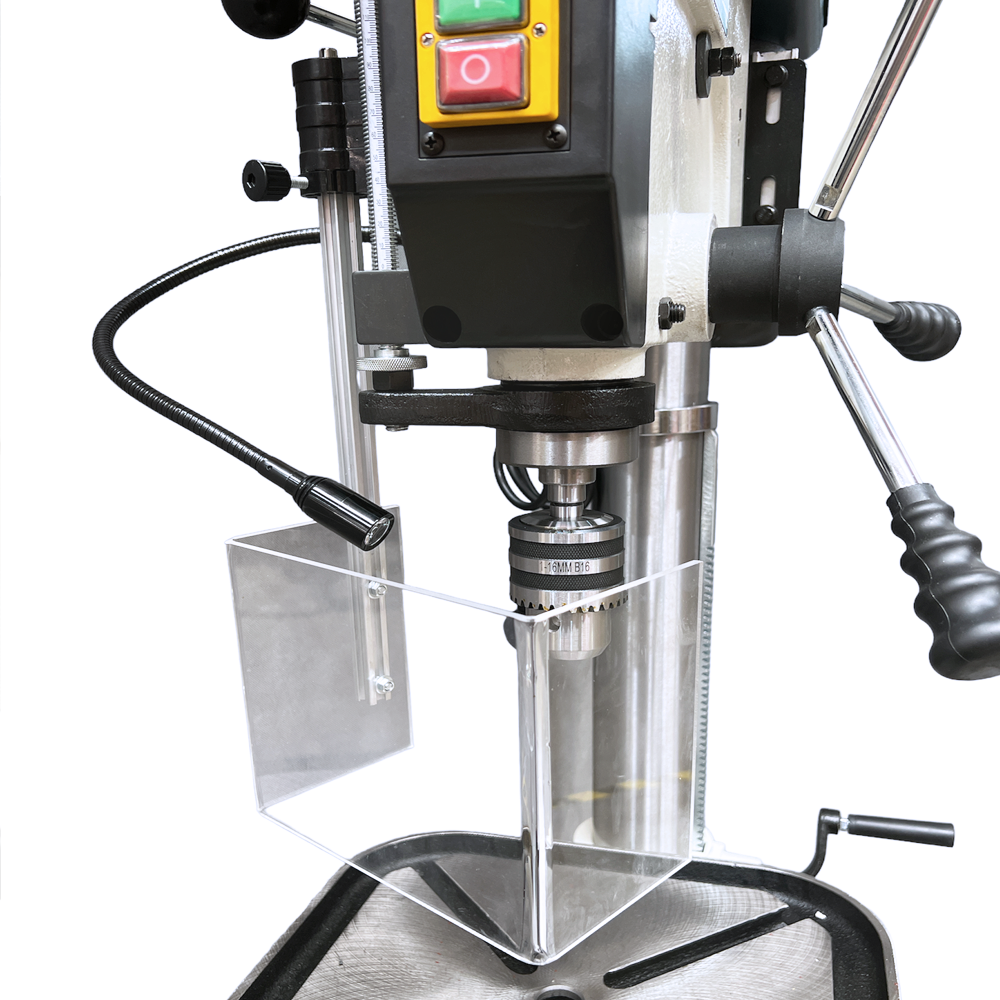

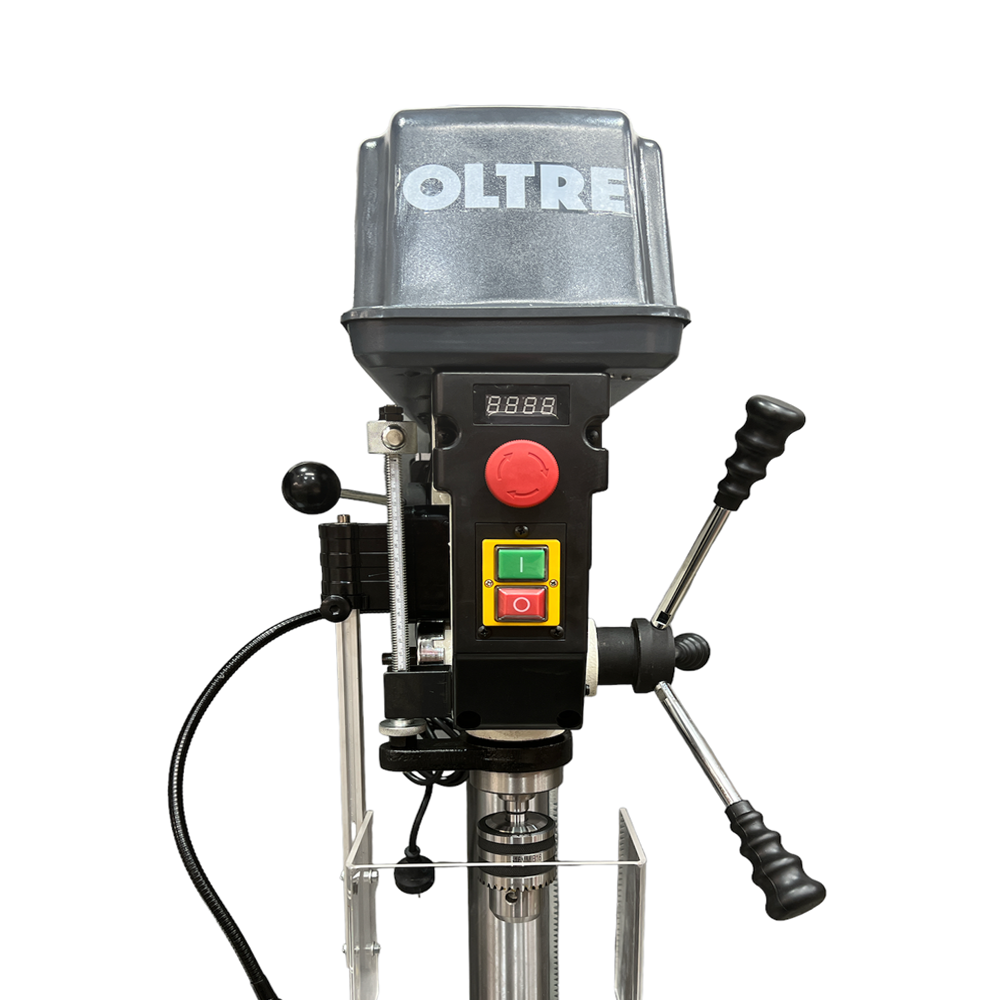

430mm (17”) Variable Speed Floor Drill Press is the best in the 430mm (17”) class. Designed with features that woodworkers have demanded – more powerful motor, Vari-speed pulley that adjusts the chuck speed with a simple turning of a lever – no belt changing, a digital RPM display, rotating work table with clamp-friendly thin edges, larger spindle travel, and a handy LED light.

Features:

  • Powerful motors provide plenty of power for drilling
  • Easy-change pulley drive systems give multiple spindle speed choices
  • Big capacity keyed chucks give precise drilling with small to large drill bits
  • Adjustable depth stops are great for repeatable drilling
  • 3-Wing feed handles provide excellent control when drilling
  • Heavy cast iron bases have slots for attaching jigs or fixtures
  • Machined, cast iron tables include slots for attaching clamps, vises etc.
  • Tables tilt and easily move up or down along the column for best positioning
  • Thick, metal columns for strong, rigid support
  • Front on/off push button switches have removable safety tabs for extra security
  • Includes chuck keys, holders, and speed selection charts

Additional Information

Model
Type
Drill Press
SKU
9700087
Part Number
DP430016F-VS
Barcode
735745530306
Brand
Oltre
Size
430mm (17")
Configuration
Configuration
The term "configuration" refers to the design or setup of a machine, specifically whether it is benchtop, pedestal, or portable style.

Benchtop Configuration: Machines with a benchtop configuration are designed to be placed on a workbench or tabletop. These machines are typically compact and ideal for smaller workspaces or projects.

Pedestal Configuration: Machines with a pedestal configuration are mounted on a sturdy pedestal or stand. This configuration provides stability and may offer additional height and accessibility for certain applications.

Portable Configuration: Machines with a portable configuration are designed to be easily transported and used in various locations. These machines are lightweight and often feature handles or carrying cases for convenient portability.

Understanding the configuration of a machine is important as it determines how it will fit into your workspace and how you will interact with it during operation.
Floor Mount (Pedestal)
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase

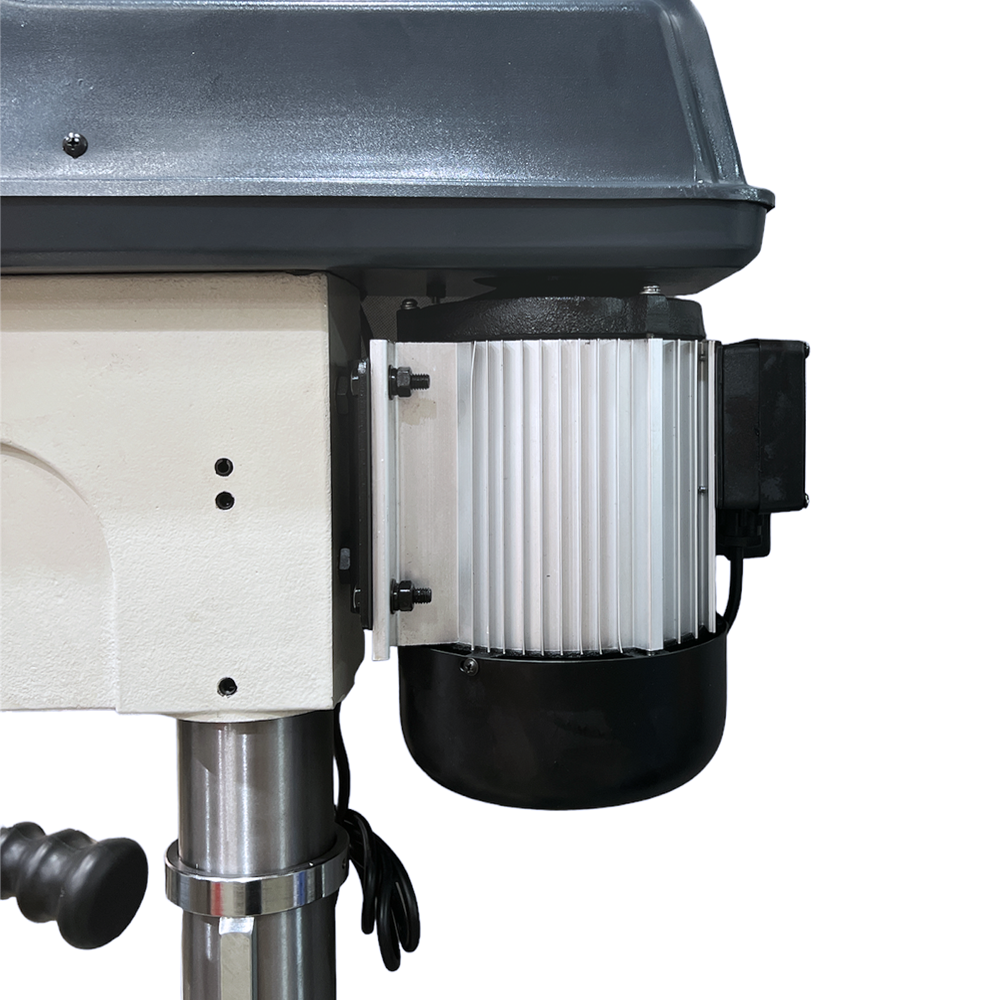

Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
1.5HP / 1100W
Base Size
580mm x 420mm
Chuck Type
Keyed
Table Size
356mm x 356mm
Drilling Capacity
16 mm
Chuck Capacity
16 mm
Speed Range
440-2200
Technical - Spindle Moulder
Chuck Capacity
16 mm
Dimensions
Product Height
1820 mm
Product Weight (Net Weight)
95 kg
Country of Origin
Manufactured in
China
Features
Digital Speed Display
Digital Speed Display
A no volt release (NVR) switch is valuable safety feature for power tools and machinery. If the power is cut, the unit will default to off, so the machinery will not automatically start again when the power is restored.
Flexible Worklight
Rack & Pinion
Rack & Pinion
A rack and pinion is a type of linear actuator that comprises a circular gear (the pinion) engaging a linear gear (the rack).
Easy Speed Change Device with Speed Adjust Handle
Easy Speed Change Device with Speed Adjust Handle
Easily change the speed without stopping the machine the traditional way and moving the belt - instead simply adjsut the speed with the easy adjust handle.
Safety
Emergency Stop Switch
Emergency Stop Switch
An emergency stop switch is a safety mechanism used to shut off machinery in an emergency, when it cannot be shut down in the usual manner.
Chuck Guard
NVR (No Volt Release) Switch
NVR (No Volt Release) Switch
A no volt release (NVR) switch is valuable safety feature for power tools and machinery. If the power is cut, the unit will default to off, so the machinery will not automatically start again when the power is restored.
Workshop (Site) Info
Electrical Connection
10Amp Lead & Plug
Packaging + Shipping
Shipping Length
1530 mm
Shipping Width
710 mm
Shipping Height
280 mm
Shipping Weight (Gross)
92.0 kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Cardboard Box
Shipping Notes
This product is classified as 'Heavy / Oversized' and generally does not qualify for FREE SHIPPING.
