Type
Thicknesser
SKU
8000843
Part Number
TH410A
Brand
Woodfast
Size
410mm (16")
Stores
Status
Available

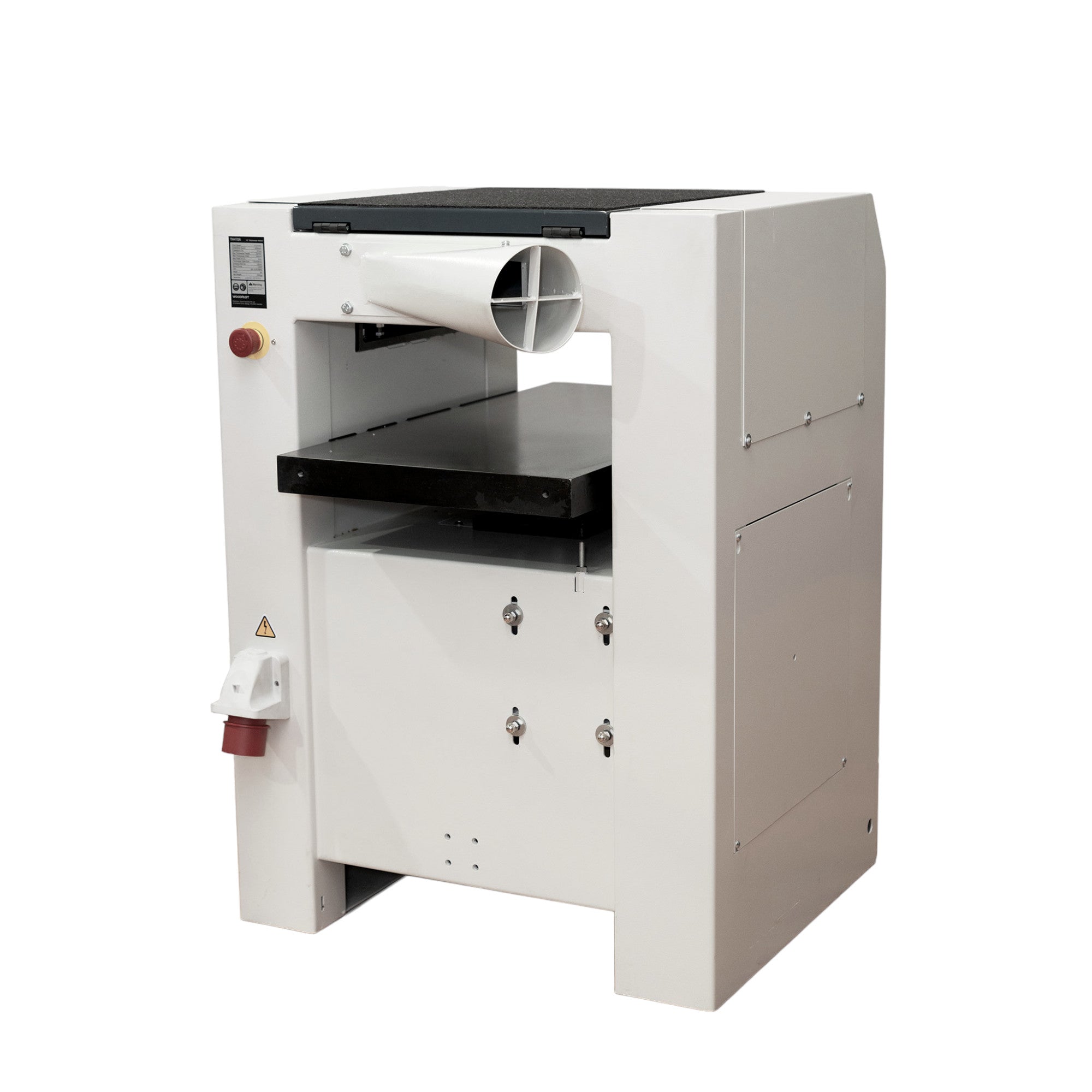

Description
Surfacing lumber to a specific thickness requires a machine that has plenty of power to remove a lot of material from oversized lumber, especially if the boards are wide and hardwood. TH410A with spiral head cutters has proven that it can handle these conditions and reduce smooth surfaces that required little sanding before finishing.
Additional Information
Model
Technical

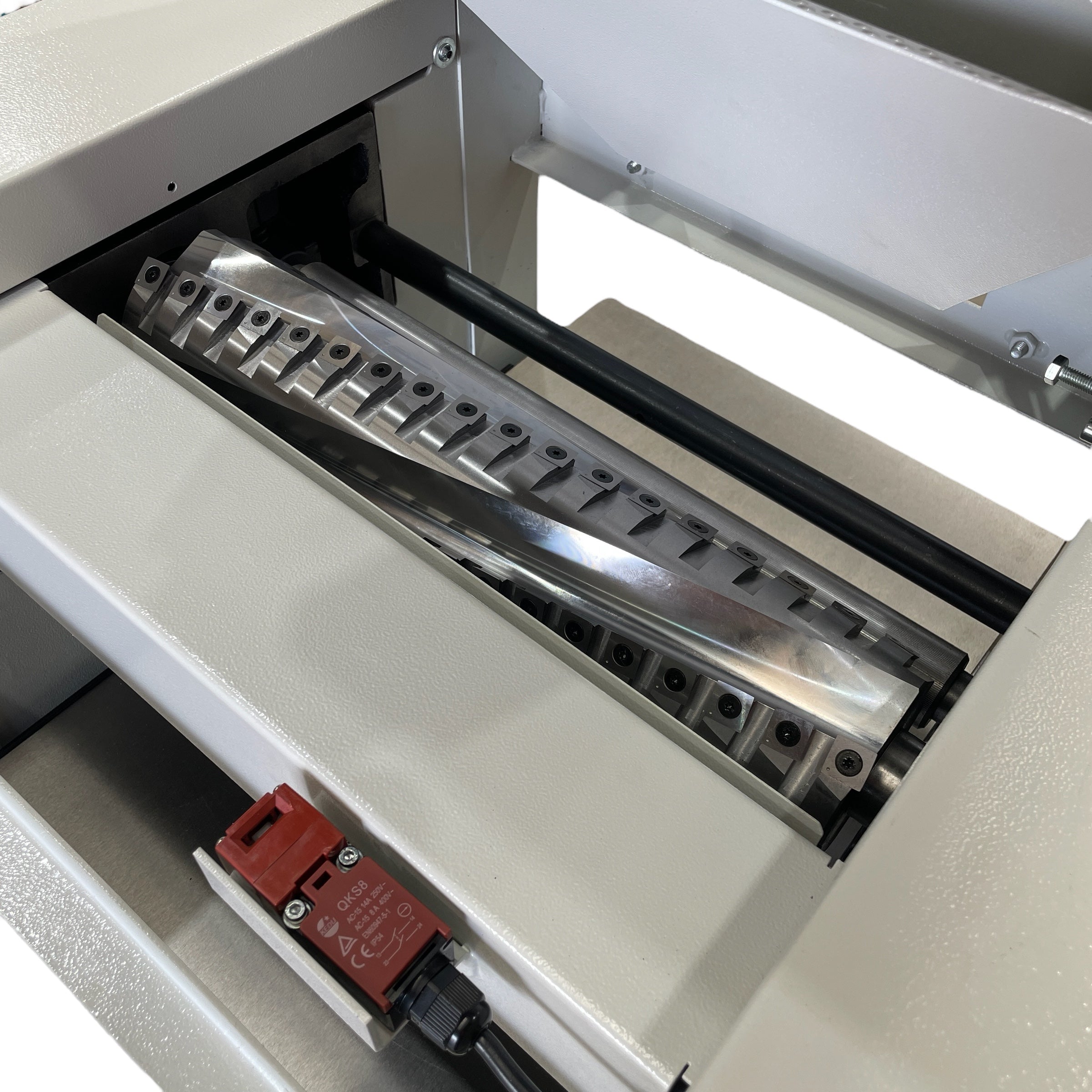

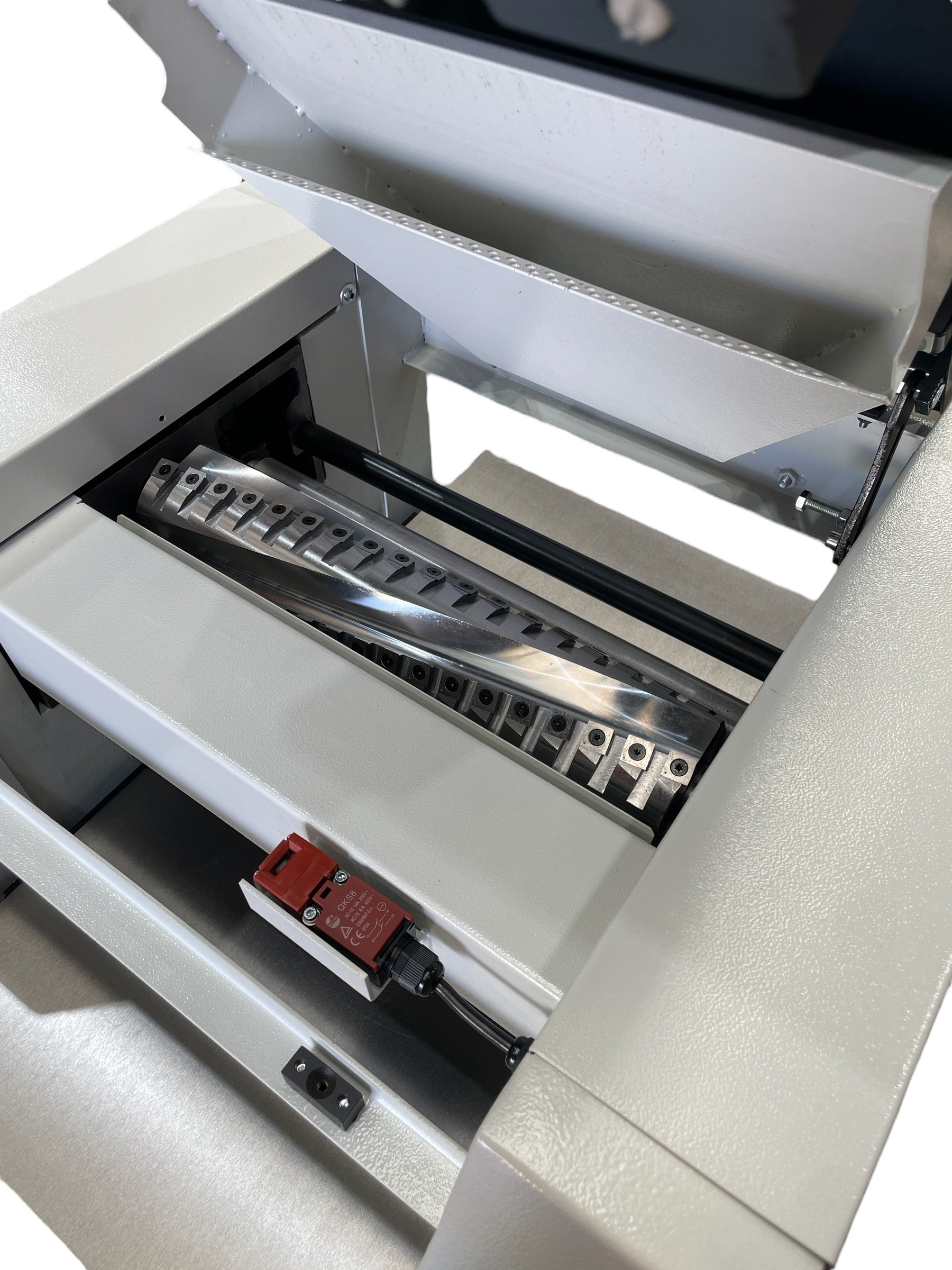

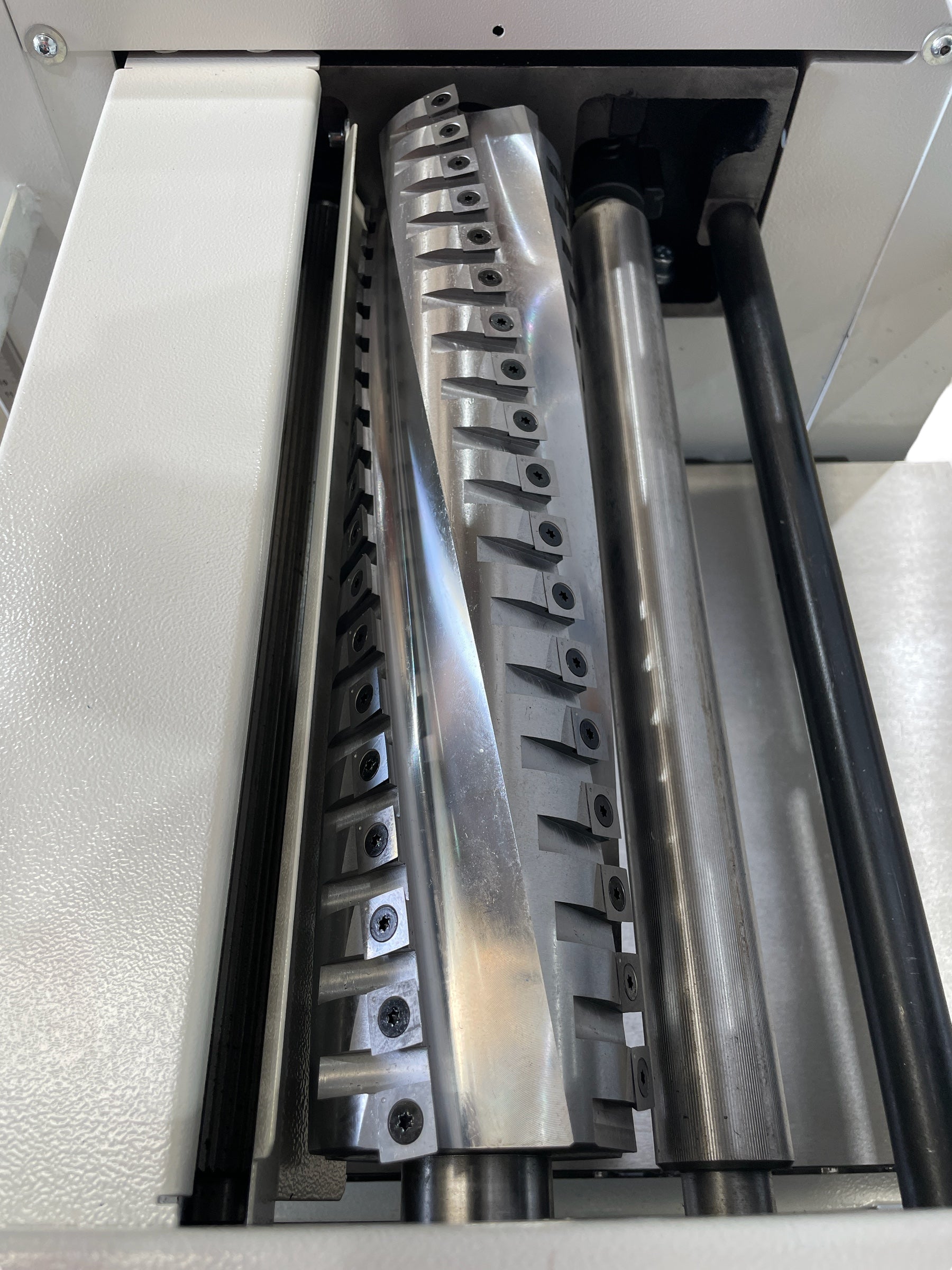

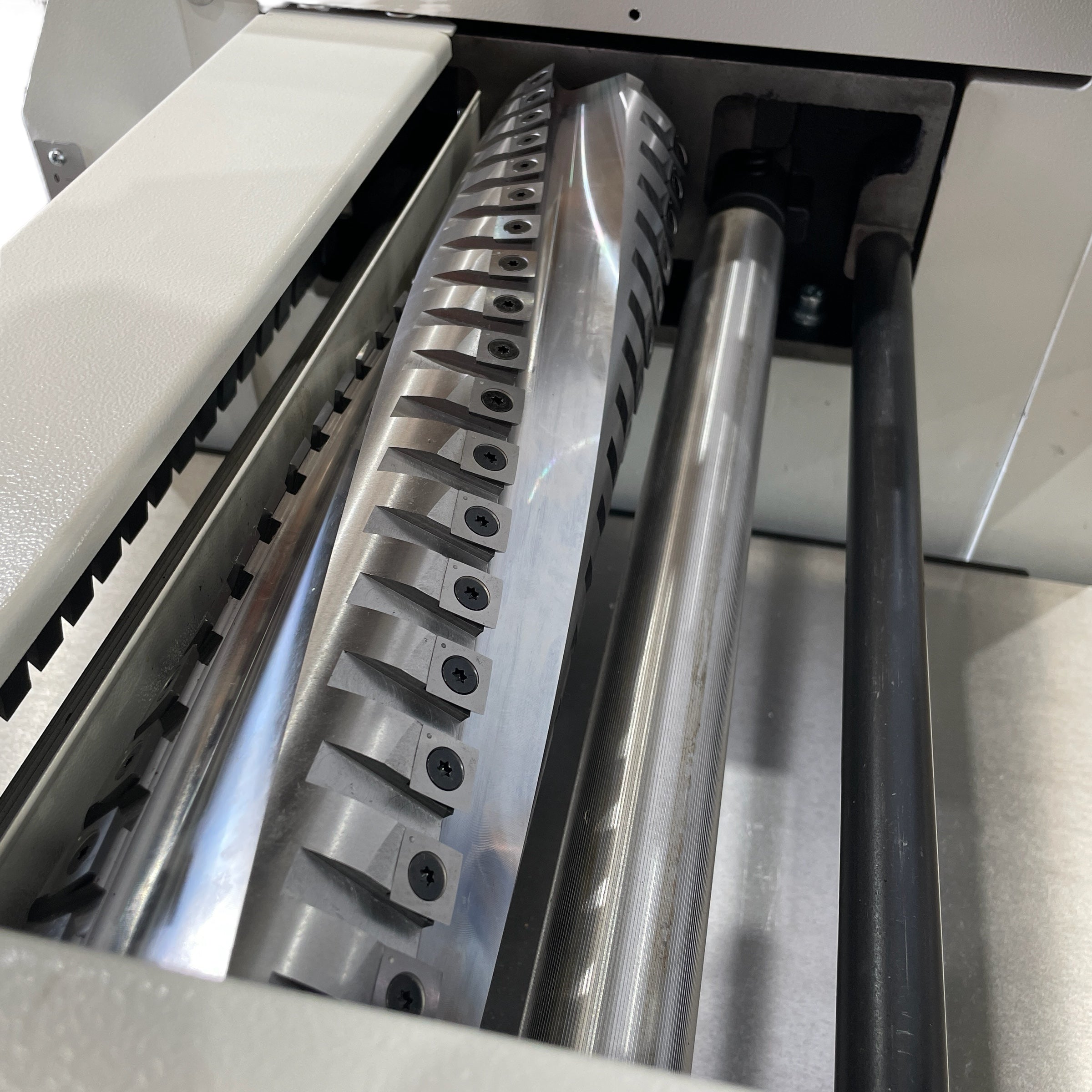

Blade Type
Spiral Head Cutter Block
Blade (Main) - Speed
4,200RPM
Blade - Cutter Head Block - Diameter
97 mm
Blade- Cutter Head Block - Blade Size
15mm x 15mm x 2.5mm (150mm Radius)
Blade - Cutter Head Block - Rows
4
Blade - Cutter Head Block Speed
4200
Cutting Capacity - Height
220 mm
Dust Port
1 x 120mm
Feed Speed
6.5m / Min.
Cut Max. Depth @ 0°
4 mm
No. of Blades / Tips
72
Material (Stock) - Maximum Width
405 mm
Material (Stock) - Maximum Height
220 mm
Table Size
750mm x 408mm
Motor Power (Input) - Variable Option
3HP
Dimensions
Product Weight (Net Weight)
240 kg
Country of Origin
Designed, Researched & Developed in
Australia
Manufactured in
China
Features
Digital Speed Display
Digital Speed Display
A no volt release (NVR) switch is valuable safety feature for power tools and machinery. If the power is cut, the unit will default to off, so the machinery will not automatically start again when the power is restored.
Safety
Safety Switch
Safety Switch
Safety switches are low-wear and low-maintenance when it comes to safe monitoring of doors or safe position monitoring.
Magnetic safety switches on all openings

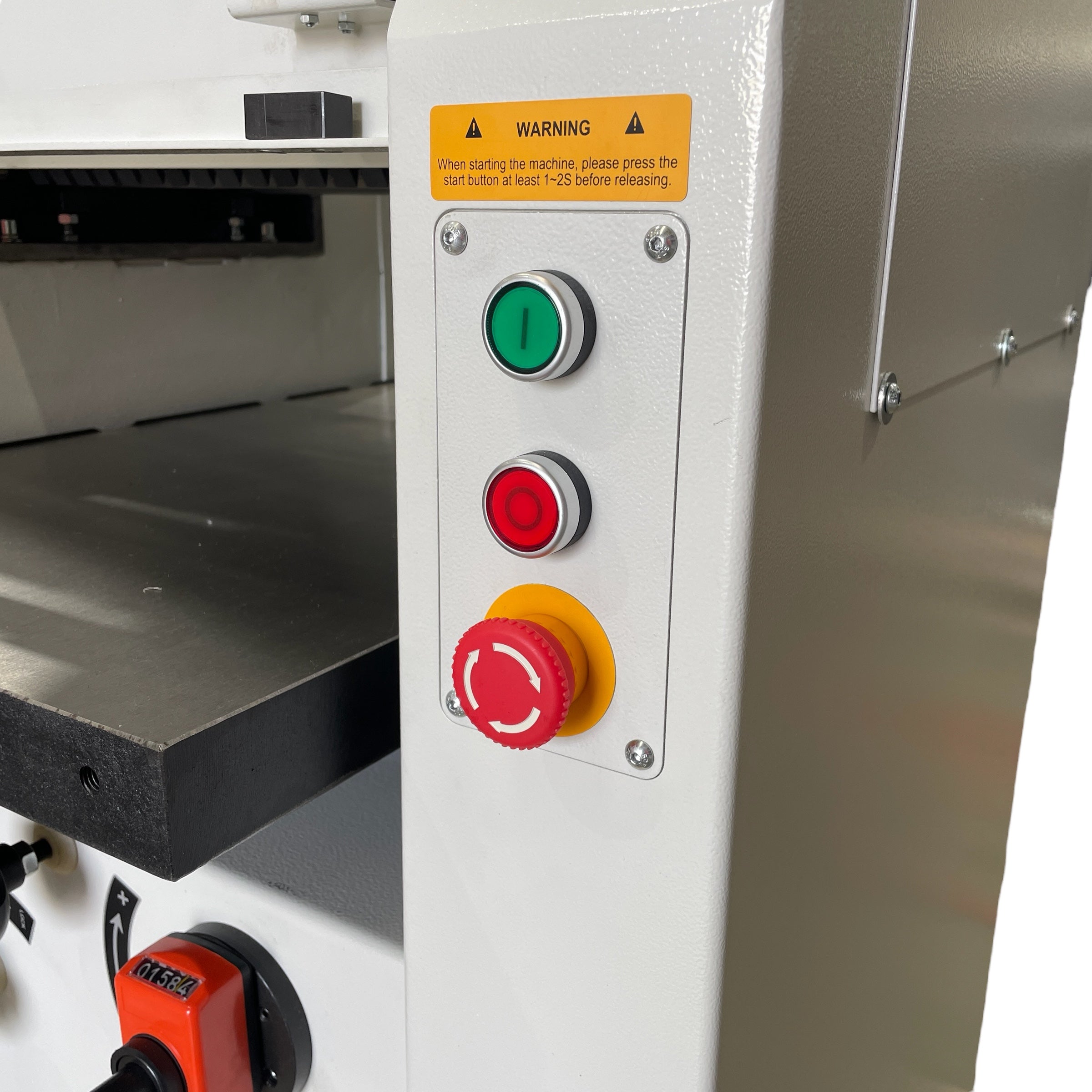

Emergency Stop Switch
Emergency Stop Switch
An emergency stop switch is a safety mechanism used to shut off machinery in an emergency, when it cannot be shut down in the usual manner.
NVR (No Volt Release) Switch
NVR (No Volt Release) Switch
A no volt release (NVR) switch is valuable safety feature for power tools and machinery. If the power is cut, the unit will default to off, so the machinery will not automatically start again when the power is restored.
Workshop (Site) Info / Requirements
Electrical Connection
15Amp Plug & Lead
Other Requirements
A dust collector is highly recommended
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
3 Years
Packaging + Shipping
Shipping Length
75 cm
Shipping Width
85 cm
Shipping Height
114 cm
Shipping Weight (Gross)
280.0 kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Wooden Box / Crate with Skid
Requires a Skid to Ship
Requires a Skid to Ship
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 50kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Shipping Notes
This product is classified as 'Heavy / Oversized' and generally does not qualify for FREE SHIPPING.
