400mm (16") 7.5HP 3.8m Sliding Table Panel Saw with Parallelogram Cross Slide Fence 415V Astra 400 by Casolin

CasolinSKU: 8600830
Price:
$34,099.00

Status

Available

Description

Ideal for the premium cabinet shop, manufactured in Italy. Features:-

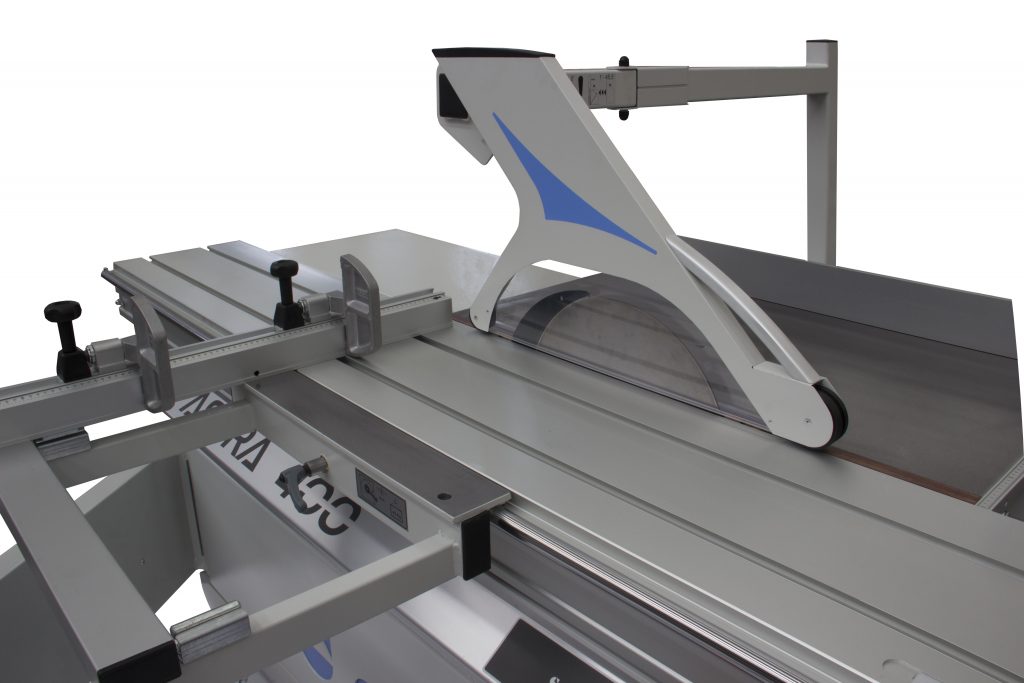

  • Parallelogram Cross Slide Fence

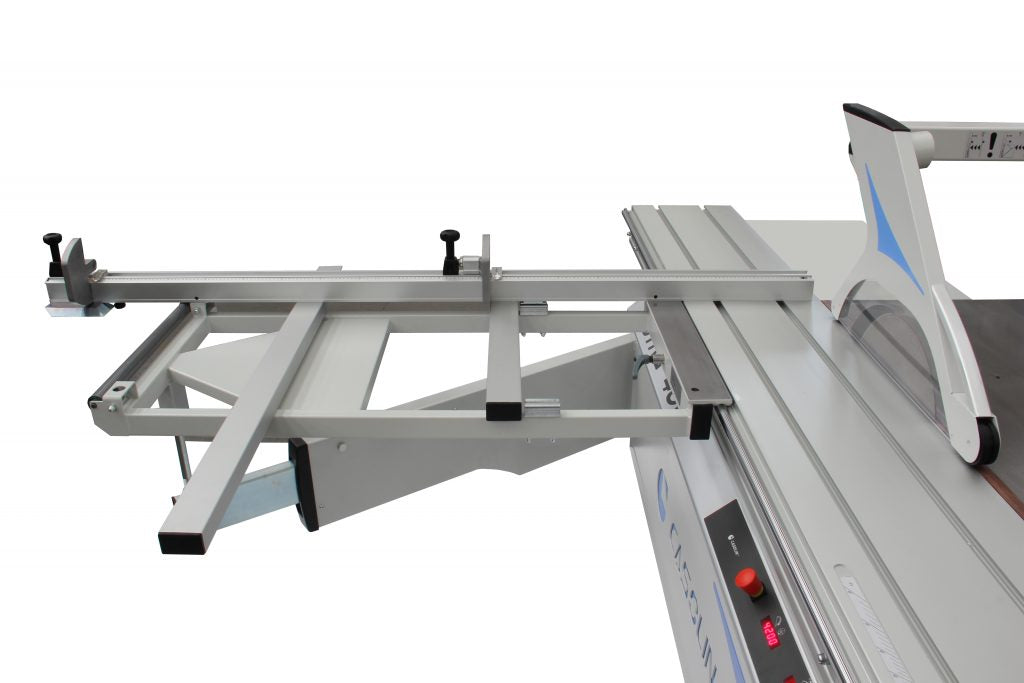

    • System for fast and precise angular cut panels. The movement of the parallelogram table on tapered roller bearings, mechanical games, guarantees the accuracy on the angle of squaring and also facilitates movement. The ground plane can be locked in any position within +/-46 degrees, and in the central position of zero, there is a convenient handle with a precise locking pin. Viewing angle is centesimal with digital LCD Viewer batteries (duration 2 years). The register telescopic cuts up to 3500 mm is full fastener quickly in two working positions.
  • Group tilting blade from 0 ° to 45.5 ° entirely of cast iron and very deep for optimal extraction of sawdust

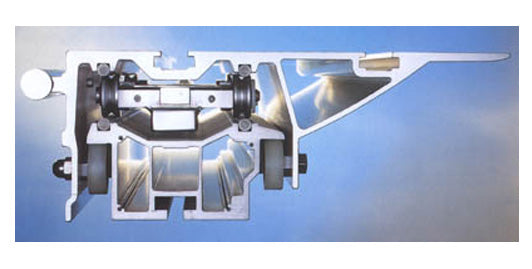

  • Running on linear guides and recirculating ball bearings for improved accuracy and stability
  • Blade shaft bearings mounted at large distance between them to reduce vibration of the main blade
  • 3 speeds of rotation: 3,200RPM / 4,200RPM / 5,000RPM
Options:- The Astra 400 is available in three versions (and with optional extras) available to order:-
  • Astra 400 Base with Motorised Blade Movement
  • Astra 400 5 CNC Posit with Motorised Rip Fence (current listed model)
  • Astra 400 5 CNC QCP with Overhead Control Panel
Specifications:-
  • Carriage length: 3800mm
  • Carriage width 360mm
  • Blade saw diam. 250-300-350-400 mm
  • Main shaft diam. 30 mm
  • N.3 speeds: 3000-4200-5000 r/min
  • Tilting 0-45,5 °
  • Height of cut 125mm with blade diam.400 mm
  • Standard motor main saw Kw 4 ( Hp 5,5 )
  • Optional Kw 5,5-7,5
  • Optional Kw 5,5-7,5 with inverter 2500-5000 turns
  • Possibility to use scoring blade even with main blade diam.400 mm fitted
  • Possibility to move down the main blade of diam.400 mm under the table level
  • Scoring group ( Optional)
  • Scoring 8200 r/min.
  • Soring blade diameter 120mm
  • Scoring shaft diameter 20mm
  • Motorised scoring unit with electrical movement, motor Kw 0,75 ( Hp 1 )
Technical Data:-

Additional Information

Model
Type
Panel Saw
SKU
8600830
Brand
Casolin
Technical
Blade (Main) - Diameter (Max.)
400mm
Speed Range
4200RPM
Sliding Table Size
3800mm
Country of Origin
Manufactured in
Italy
Packaging + Shipping
Shipping Weight (Gross)
1.48 kg
