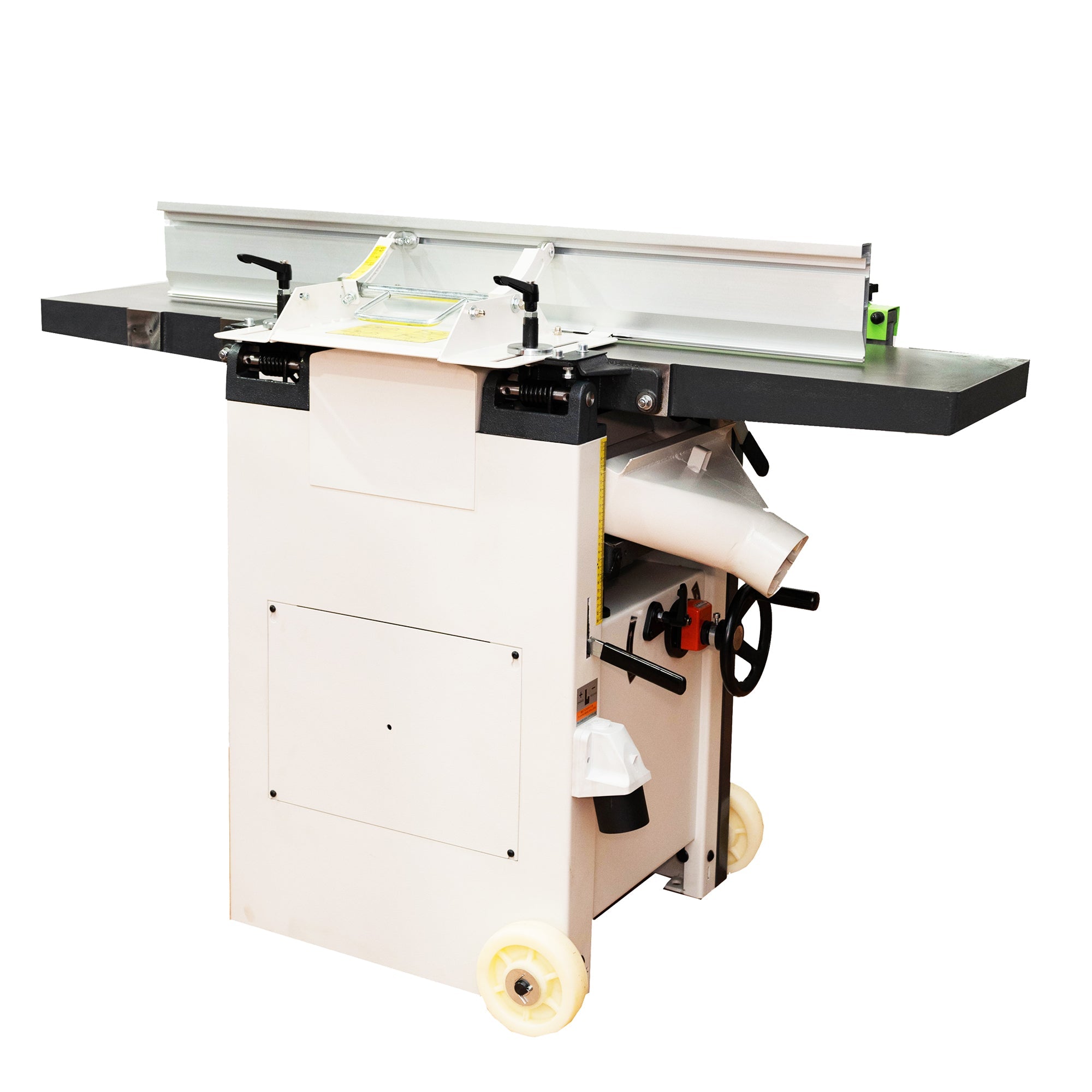

310mm (12") Combination Planer & Thicknesser with Spiral Head Cutter Block PT310A by Woodfast

WoodfastSKU: 8000842

Price:
Sale price$3,180.00

Status

Available

Description

Introducing the Woodfast PT310A Planer Thicknesser - your all-in-one solution for precision woodworking!

This powerful machine combines a planer and thicknesser in one, allowing you to effortlessly transform rough-cut wood into smooth, straight-edged boards. With its sturdy construction and efficient design, the PT310A is built to handle even the toughest woodworking projects.

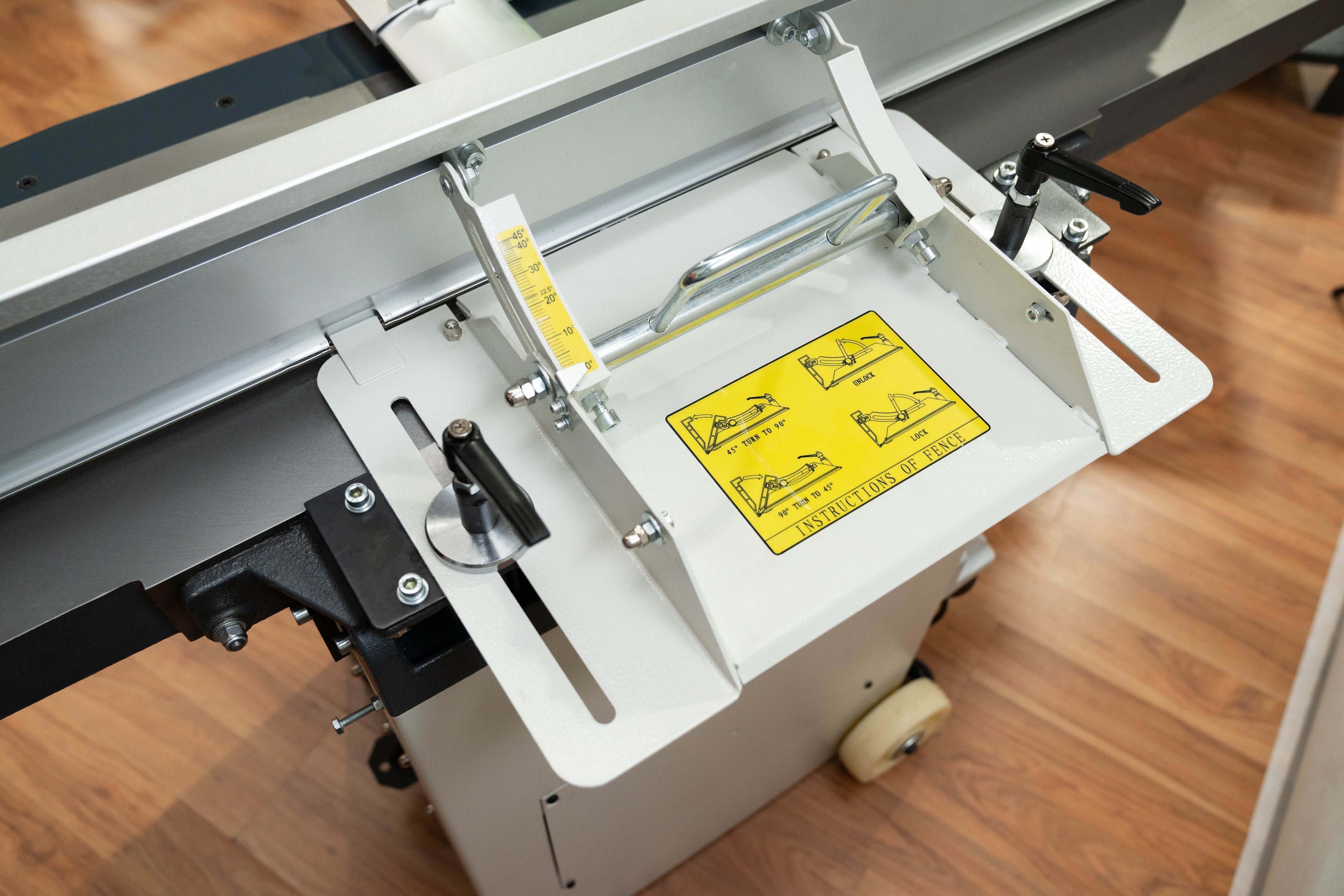

The PT310A has a large 310 x 255mm capacity. With the convenience of single handed table lift (no need to remove the fence), switching from surface planning to thicknessing cannot be easier! This versatile machine features an extra large aluminium extruded fence with centred controls and cam locking for quick adjustments. It’s a great machine to choose for the serious woodworker and the busy trade workshop.

Feature
  • 310mm (12") wide cutting capacity

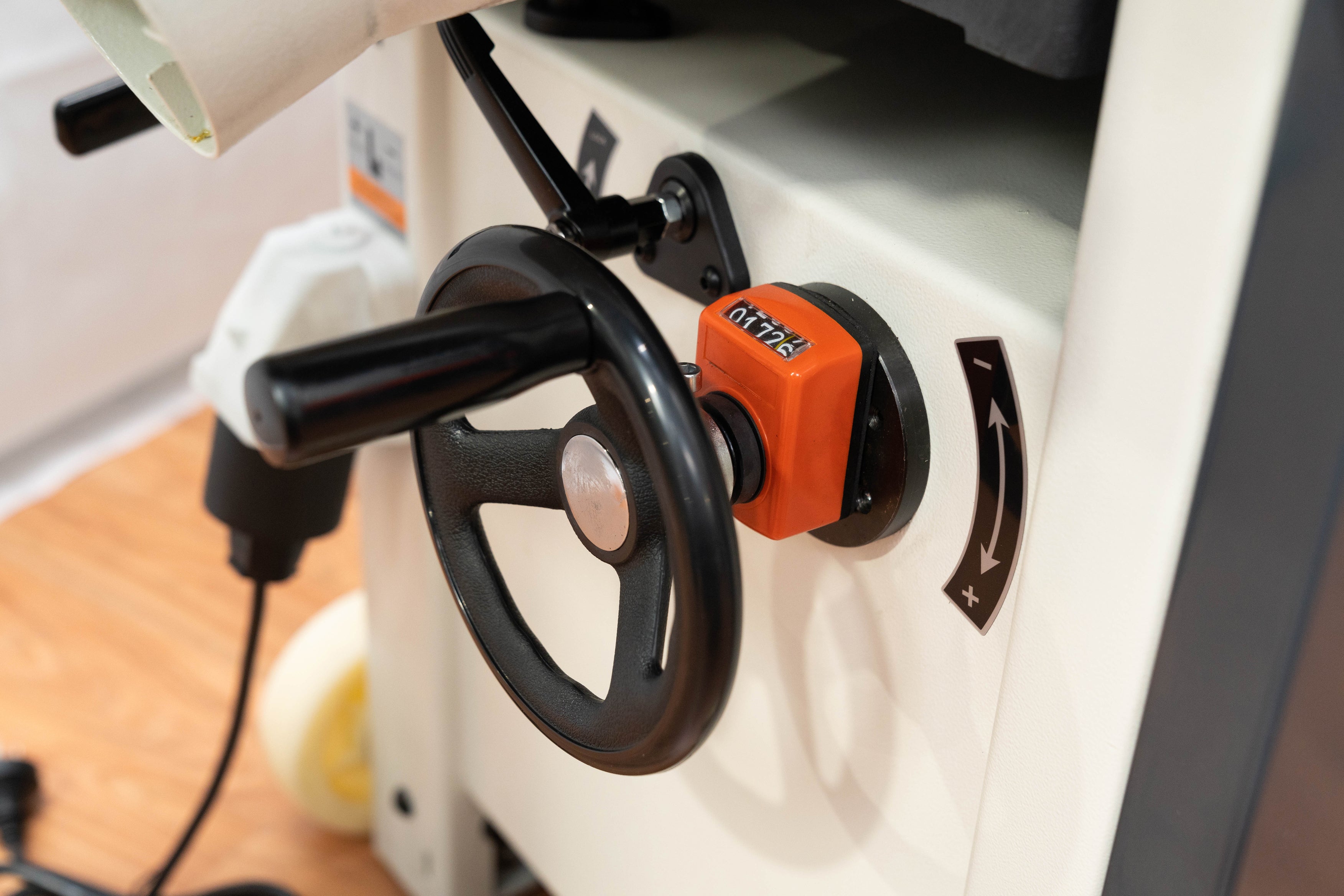

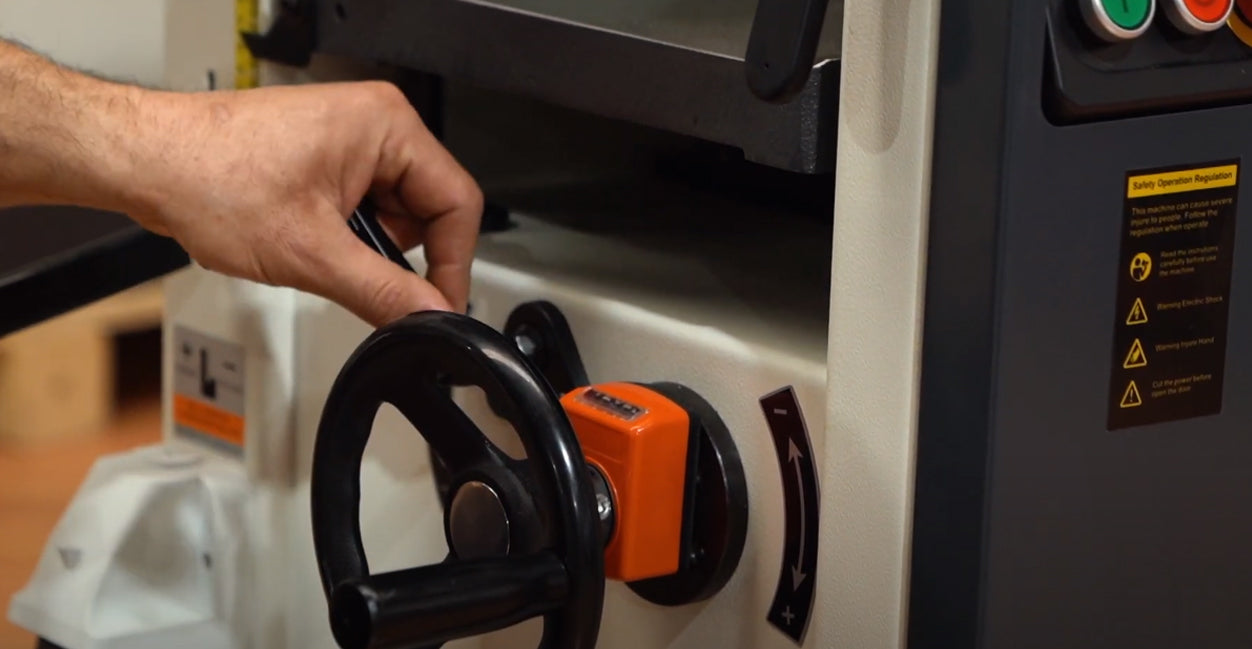

  • Automatic material thickness measurement for quick and easy setup via digital height readout.
  • Micromillemeter adjustment of material feeding

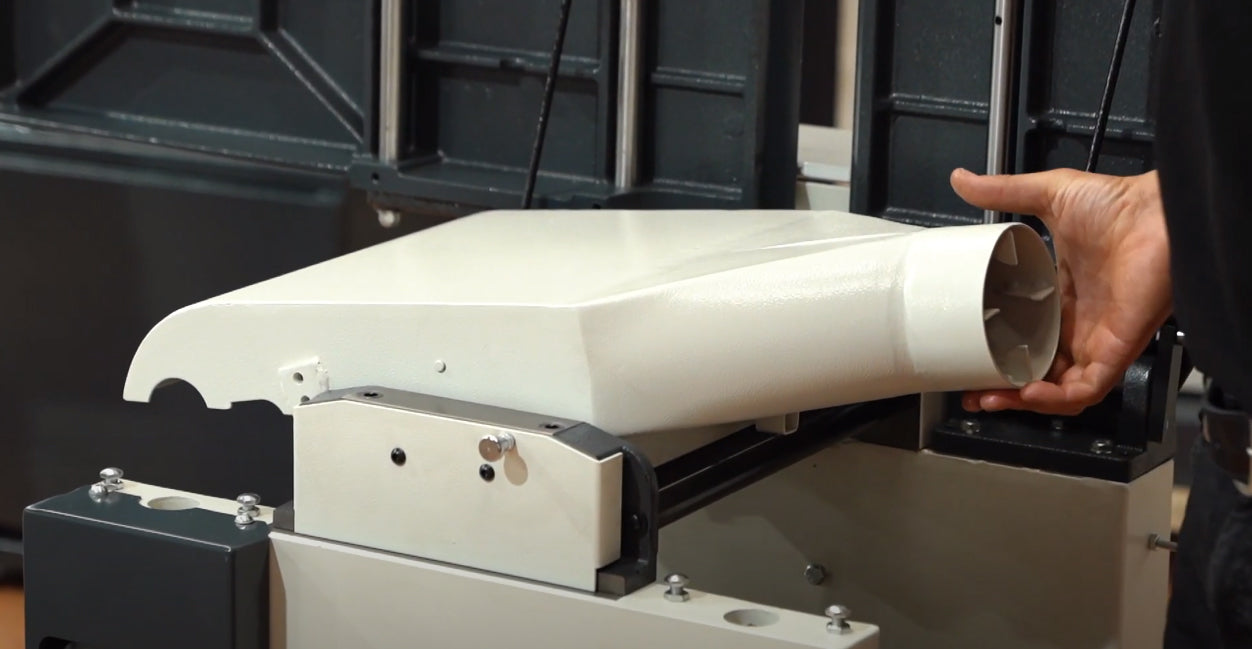

  • Large dust collection port for efficient dust extraction

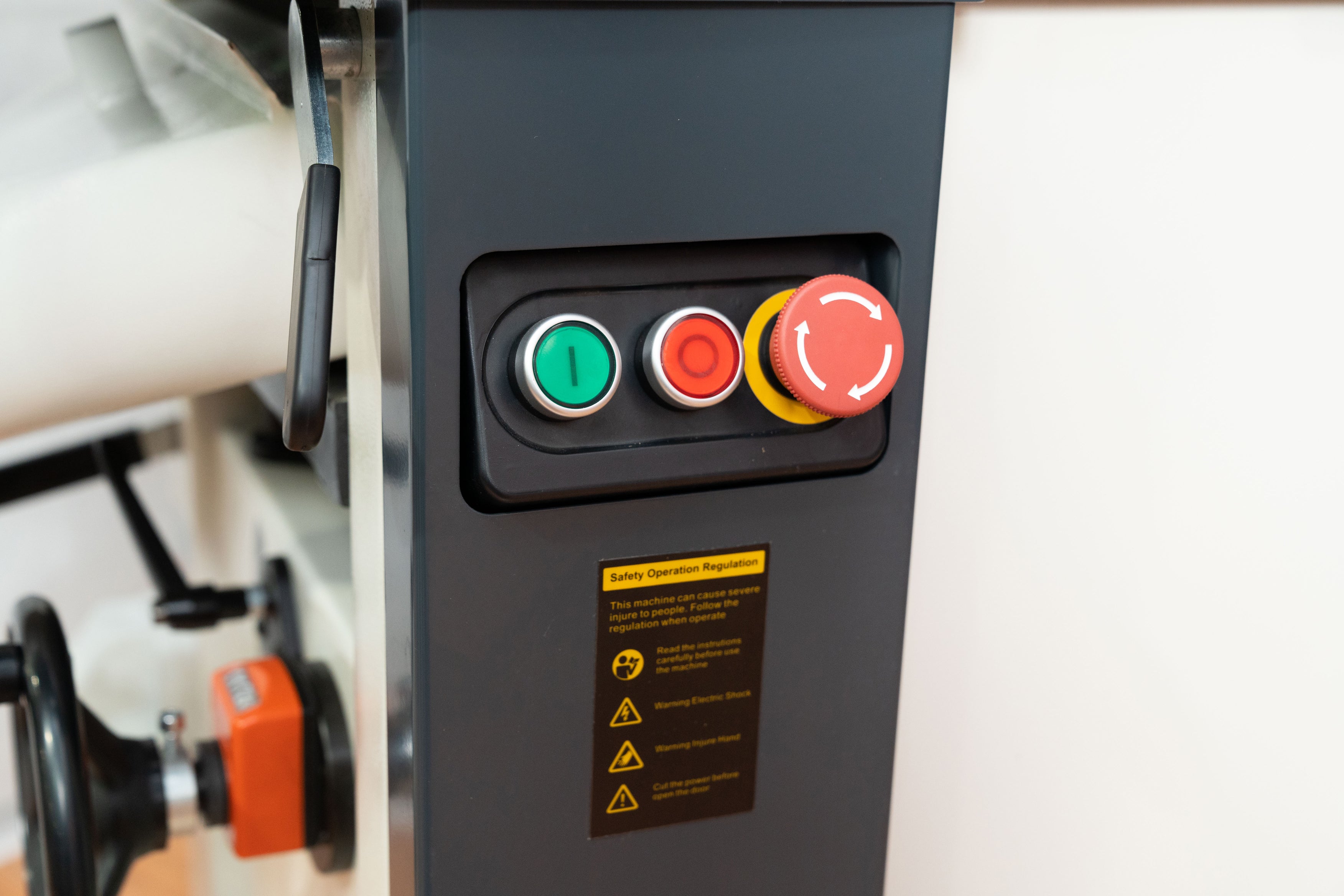

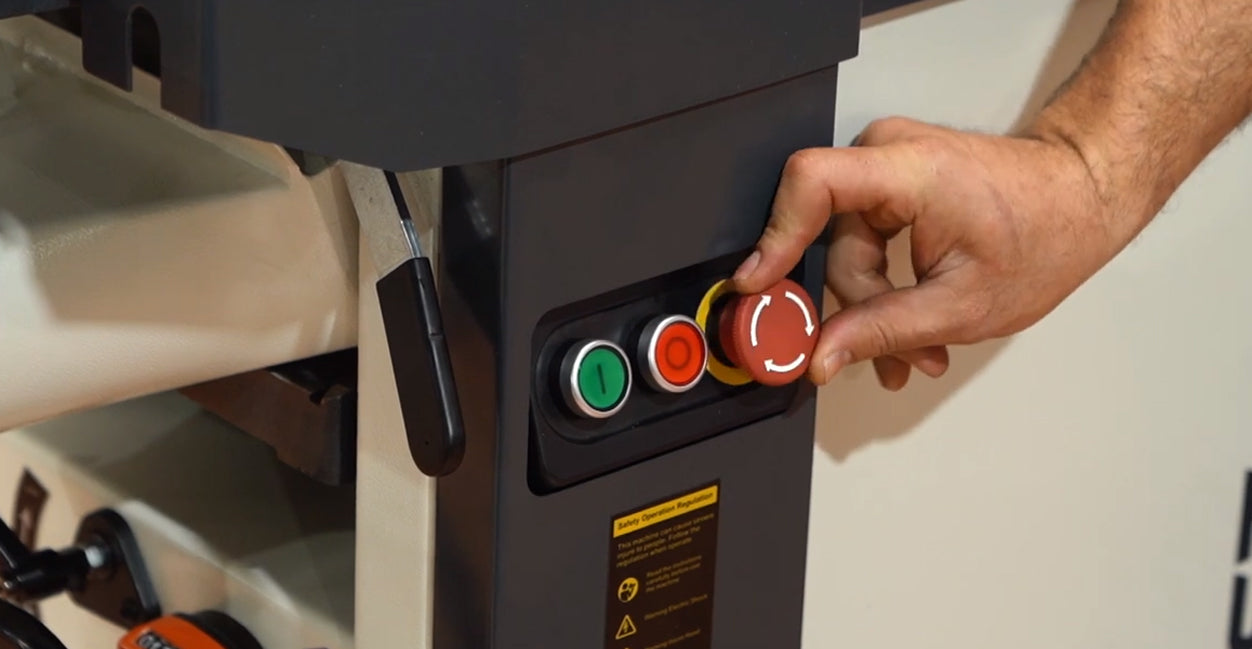

  • Emergency Stop

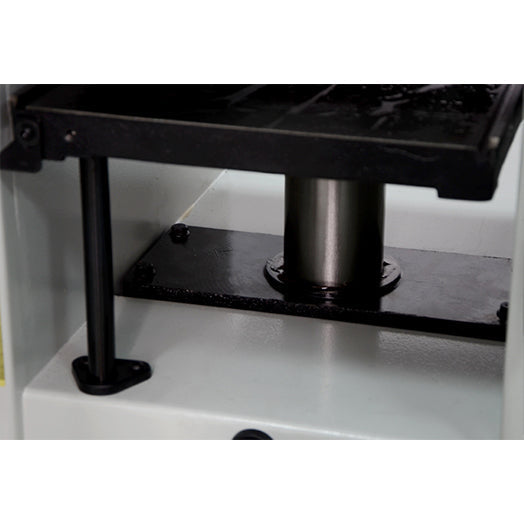

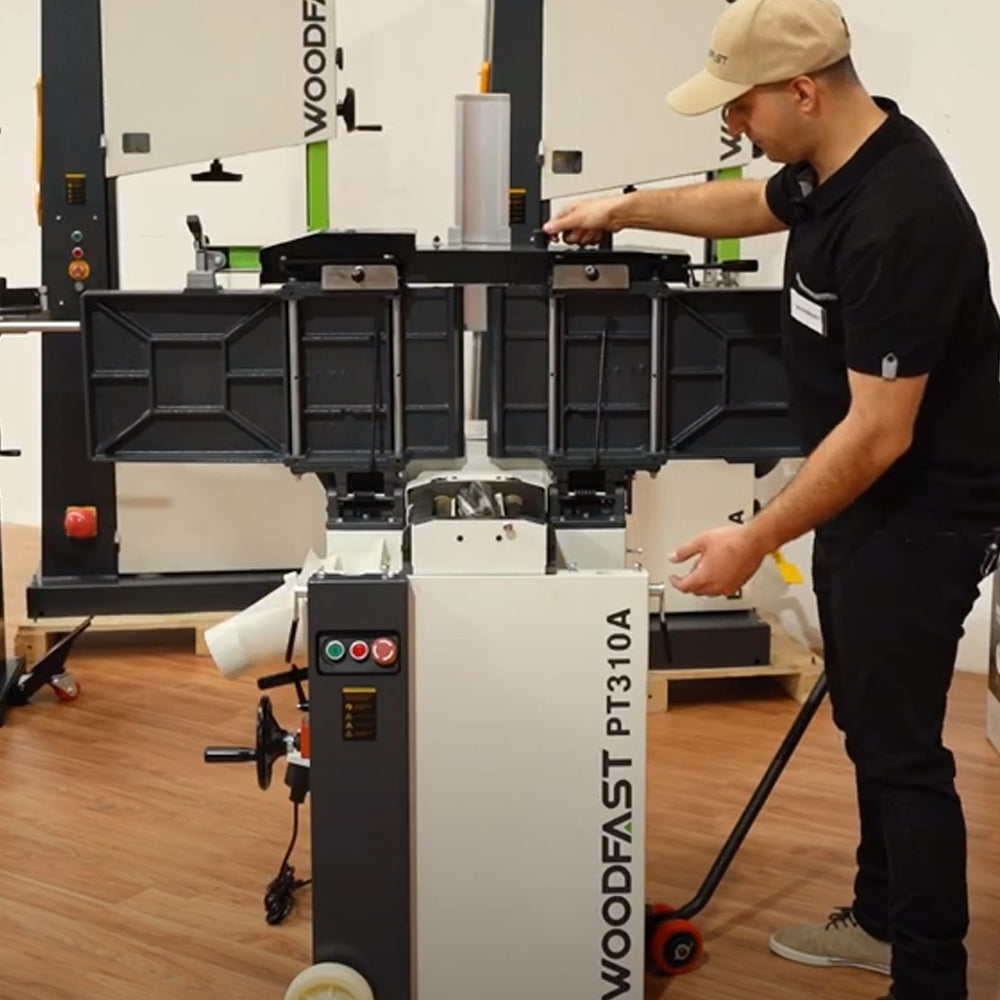

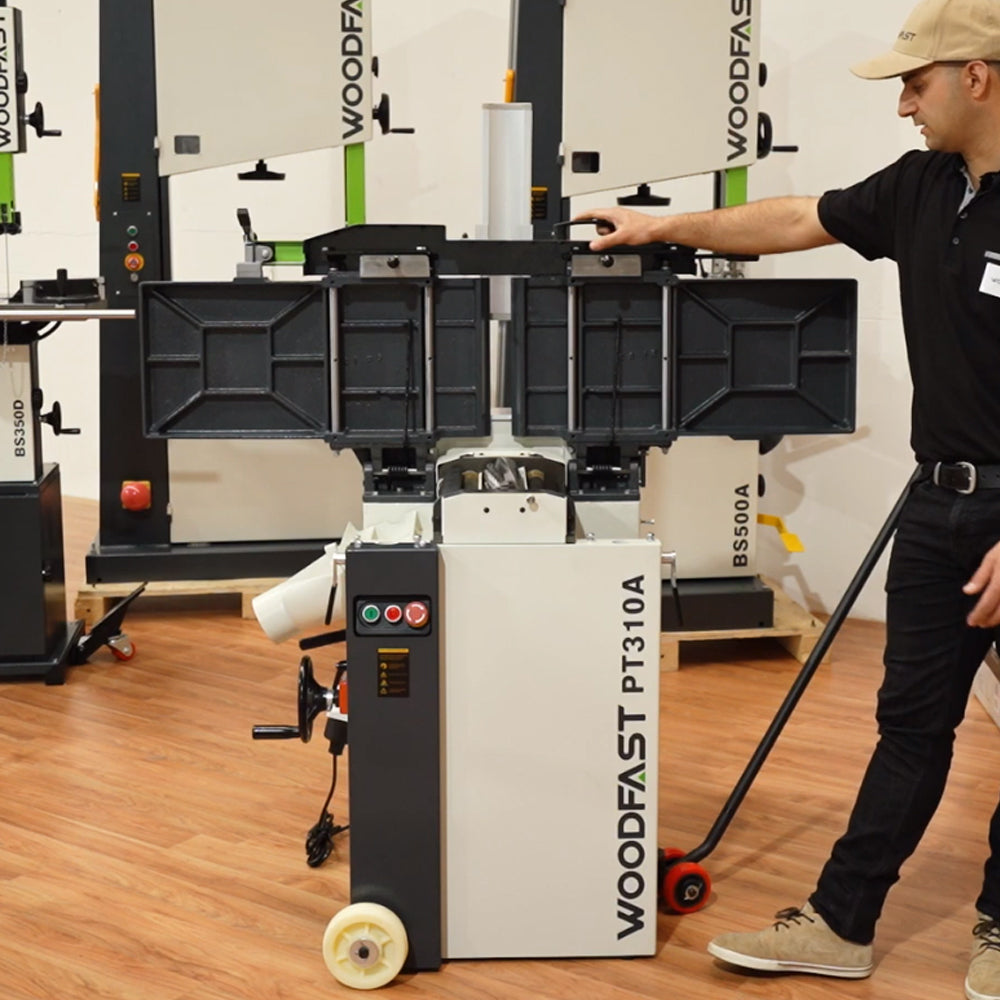

  • Dual Table Lifting System - lifts both tables at the same time when switching from one function to another.

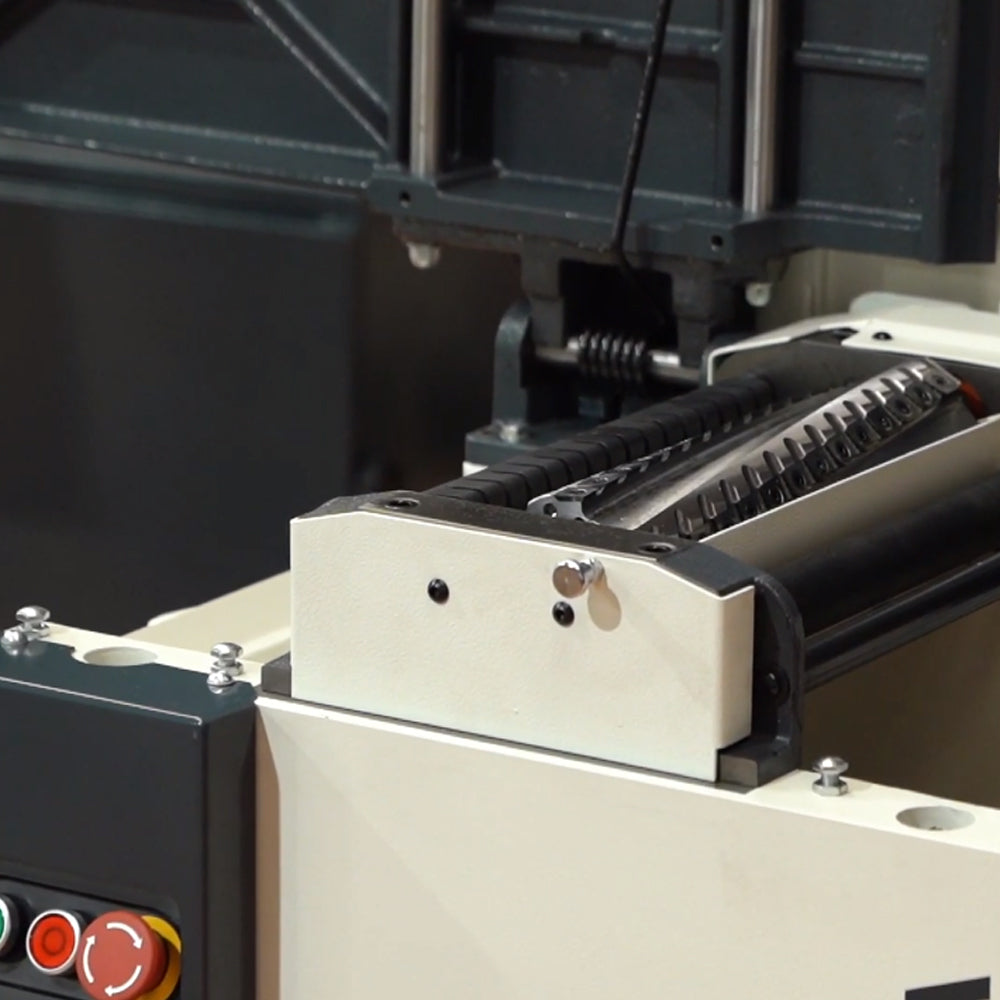

  • Spiral Head Cutter Block
  • Thicknessing Capacity is 4mm-225mm x 310mm width
  • Precision-machined cast iron (in feed and out feed) tables for smooth feeding and reduced vibration
  • Feed Rollers On / Off Lever

Specification

  • Motor power: 3HP
  • Cutting capacity: 310mm (12") wide
  • Maximum cutting depth: 4mm (5/32")
  • Table size: 560 x 310mm
  • Dust port size: 100mm

Experience the convenience and precision of a combined planer and thicknesser in one machine!

Looking for even versatility in your woodworking projects? Consider upgrading to the Woodfast PT410A Planer Thicknesser - the big brother to the PT310A!

With a wider cutting capacity the PT410A is perfect for handling larger and more challenging woodworking projects making it a top choice for professional woodworkers who demand precision and reliability the PT310A with a 410mm (16") cutting width capacity.

Optional

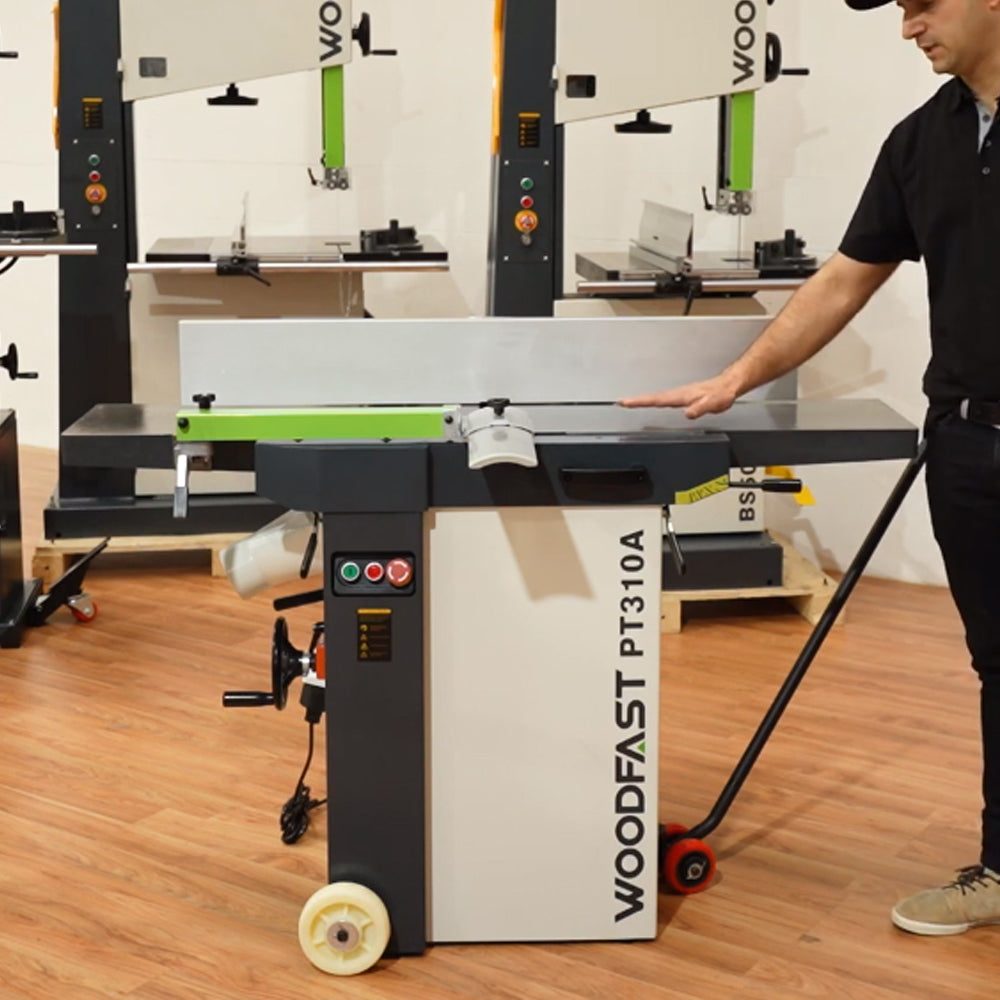

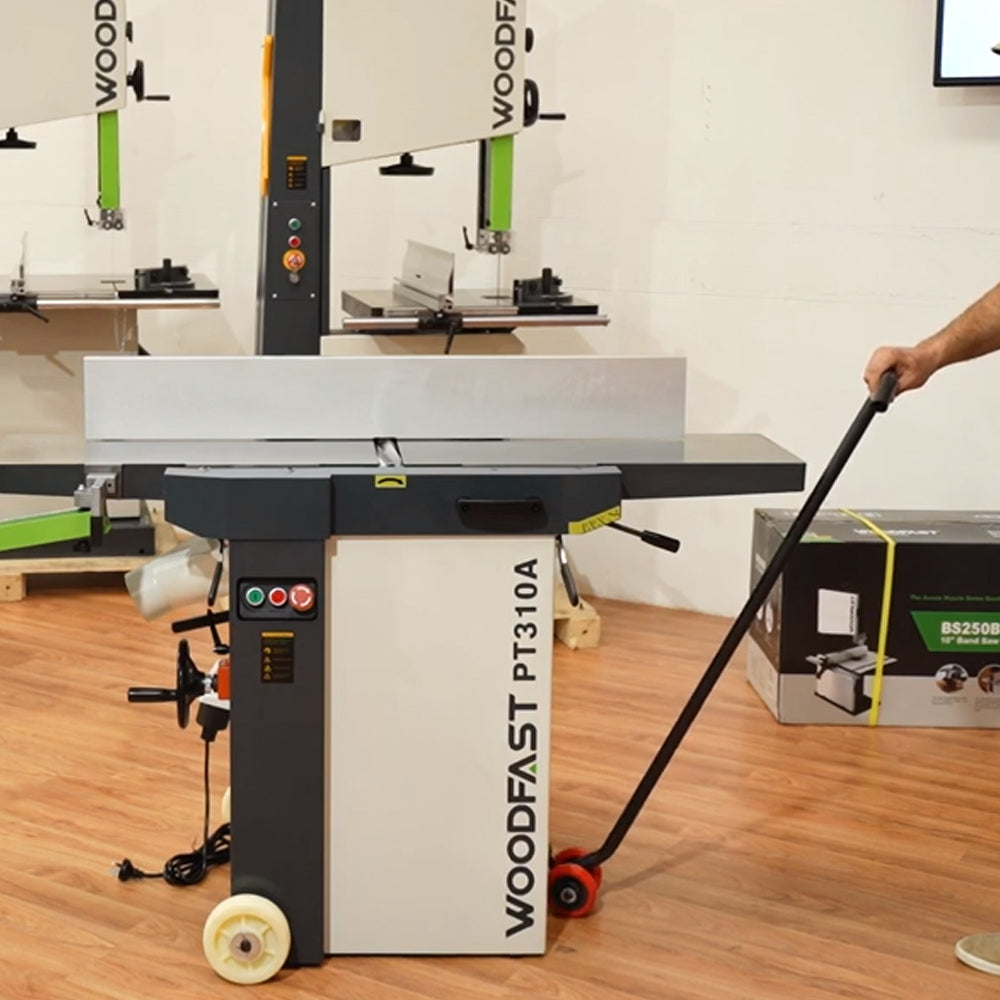

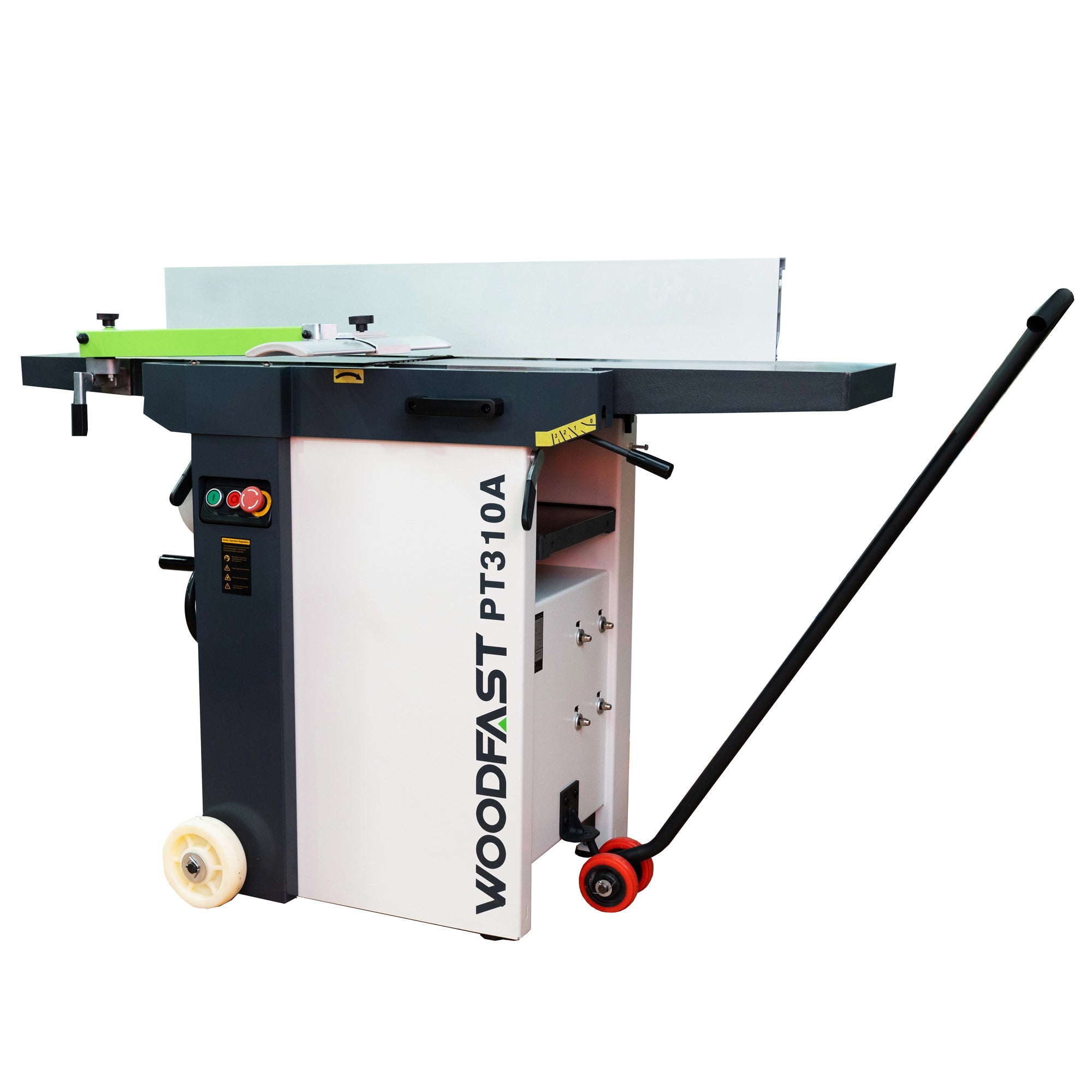

  • PT310A Mobility Kit (shown pictured - sold separately)
  • Thicknesser Table Extension

Additional Information

Model
Type
Planer / Thicknesser
SKU
8000842
Part Number
PT310A
Brand
Woodfast
Size
310mm (12")
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
3HP / 2200W
Blade Type
Spiral Head Cutter Block
Blade Width
310mm
Cutting Capacity - Height
225 mm
Feed Speed
7m / Min.
Technical - Spiral Head Cutter Block
Blade- Cutter Head Block - Blade Size
15mm x 15mm x 2.5mm (150mm Radius)
Blade - Cutter Head Block - Diameter
70 mm
Blade - Cutter Head Block Speed (RPM)
5500
Blade - Cutter Head Block - No. of Blades / Tips
72
Dimensions
Product Weight (Net Weight)
230 kg
Country of Origin
Designed, Researched & Developed in
Australia
Manufactured in
China
Safety
Emergency Stop Switch
Emergency Stop Switch
An emergency stop switch is a safety mechanism used to shut off machinery in an emergency, when it cannot be shut down in the usual manner.
NVR (No Volt Release) Switch
NVR (No Volt Release) Switch
A no volt release (NVR) switch is valuable safety feature for power tools and machinery. If the power is cut, the unit will default to off, so the machinery will not automatically start again when the power is restored.
Dust Port
1 x 100mm (in both Planing and Thicknessing Mode)
Workshop (Site) Info
Other Requirements
Dust Collector
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
3 Years (Home User) or 1 Year (Commercial User)
Packaging + Shipping
Shipping Weight (Gross)
100.48 kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Wooden Box / Crate with Skid
Requires a Skid to Ship
Requires a Skid to Ship
Items over 32kg must be packed on a pallet or crate so they can easily be moved by forklift.
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Shipping Notes
This product exceeds hand unloading limits and requires a tail lift truck or forklift at the unloading location (Receivers end). This product requires a skid / pallet / crate in order to safely transport via road.
