Type

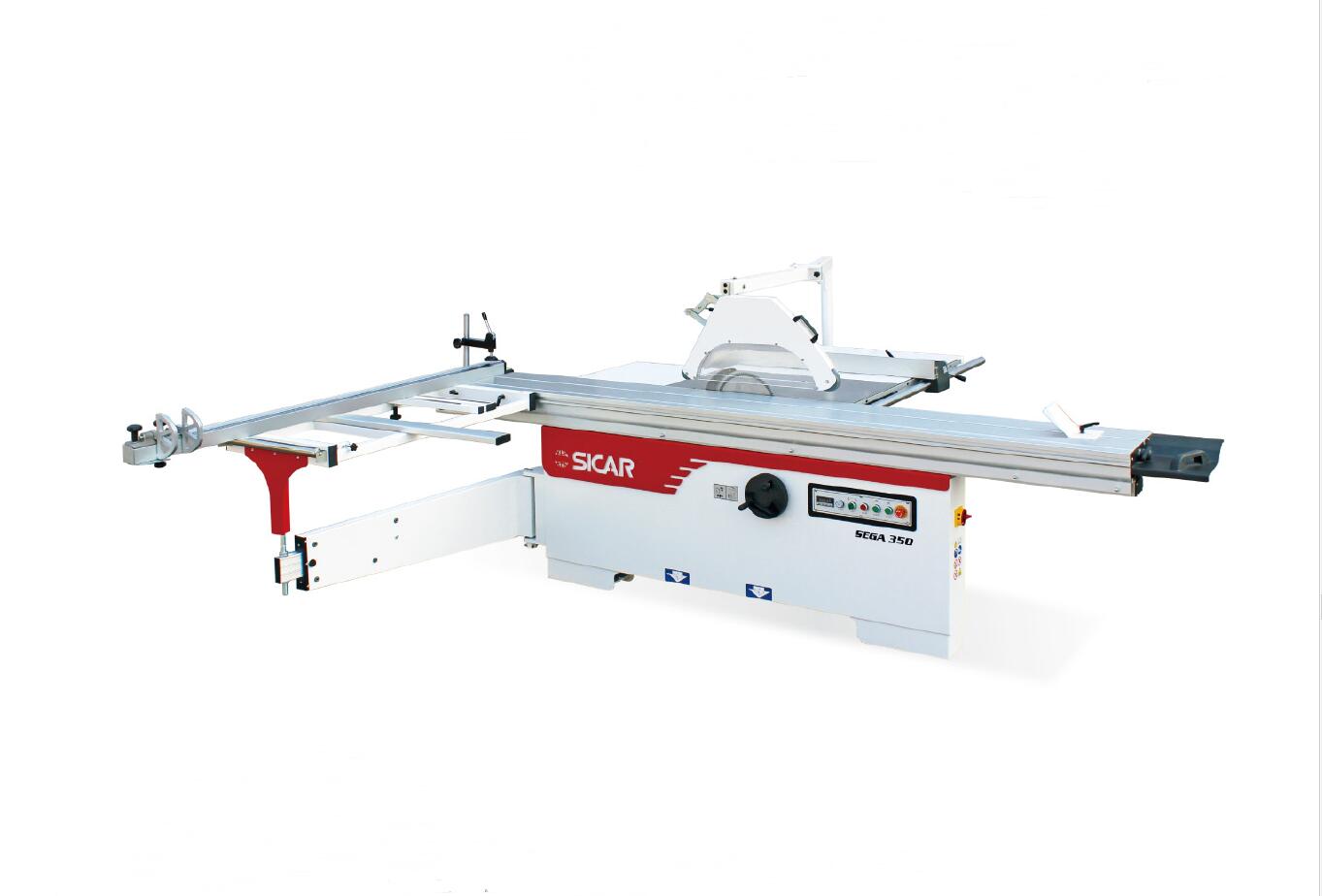

Panel Saw
SKU
8601392
Brand
Sicar
Status
Available
Description
Specifications
- Main Blade Diameter φ300 x φ30mm
- Main Blade Speed 4000 RPM
- Scoring Blade Diameter φ120 x φ22mm
- Scoring Blade Speed 8000mm
- Mαx Depth of Cut @ 45 ° 92mm
- Max Depth of Cut @ 90 ° 120mm
- Max Rip Capacity 1250mm
- Main Table Size 910x550mm
- Main extend Table Size 910x760mm
- Side extend Table Size 500x550mm
- Dust Extraction Outlet φ120mm
- Main Blade Motor Output 5.5HP
- Scoring Blade Motor Output 0.75KW 1HP
- Net/Gross Weight 610/710KG
- Mαin Package 2220×1030×1150mm
- Sliding Beam Size(W.x L.) 3560×420×210mm
- CE Style Overhead Guard Included
Additional Information
Model
Technical
Blade (Main) - Diameter (Max.)
300mm
Blade (Main) - Bore Size (mm)
30mm
Blade (Main) - Speed
4000RPM
Blade Tilt
0-45°
Blade (Scoring) - Diameter (Max.)
120 mm
Blade (Scoring) - Speed
8000RPM
Dust Port
1 x 120mm
Blade - Electric Rise / Fall
No
Cut Max. Depth @ 45°
92mm
Cut Max. Depth @ 90°
120mm
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
415V 50Hz Three Phase
Rip Capacity
1250mm
Sliding Table Size
1600mm
Dimensions
Product Weight (Net Weight)
610kg
Workshop (Site) Info / Requirements
Electrical Connection
Excludes Plug & Lead (must be connected by Licensed Electrician)
Packaging + Shipping
Shipping Weight (Gross)
1.48 kg
Shipping Notes
This product exceeds hand unloading limits and requires a tail lift truck or forklift at the unloading location (Receivers end).
